Longer Pump

분주용 대용랑 튜브연동식 정량펌프

주파수 변조기에 의해 속도조절

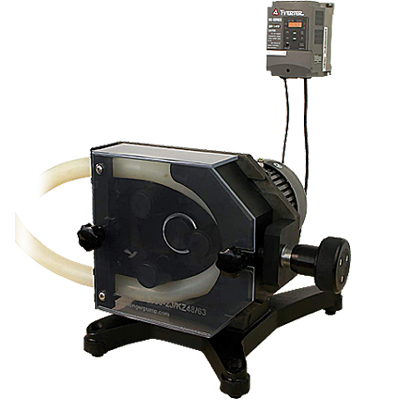

JL350-2J 대규모 튜브연동식 정량펌프
[JL350-2J Large Flow Peristaltic Tubing Pump]

AC 모터, 주파수 변조 콘드롤
회전속도 : 30~350 rpm, 역회전,
유량범위 : 1.3~35 Liter/min
펌프헤드 : KZ48

개 요

	JL350-2J 공업용 튜브연동식 정량펌프는 높은 유량으로 일괄유체이송에 적합하며, AC 모터와 주파수 변조기에 의해 회전속도를 제어할 수 있다.
	최대 35 Liter/min 까지 유량조절이 가능하며, 투명한 전면커버를 통해 펌프헤드의 작동상태를 관찰할 수 있다.
	펌프의 회전속도와 회전방향, 시작/정지 기능은 멤브레인 키패드에 의해 수동조작하거나 외부제어 인터페이스를 통해 자동으로 제어할 수 있다.
	조작이 간단하고 편리하다.

특 징

High-power pumps, and the maximum flow rates can reach 35L/min

The structure of concave working surface and convex roller realizes the tubing self-position function.

It reduces abrasion and prolongs tubing life.

Variable frequency speed control to AC motor with creeper gear

Adjustable occlusion

Strong drive

Pump head operation is visible through transparent front cover

규 격

Speed	:	30~350 rpm, CW/CCW
Speed resolution	:	0.6 rpm
Speed control	:	Frequency converrtor, external signal control and communication control available
Display	:	LCD for running information
External control	:	Start/stop and cw/ccw control
		0~5V, 0~10V, 4~20mA & 0~10KHz linear control
Communication interface	:	RS485 or RS232
Memory function	:	Storing the running parameter automatically
Power supply	:	AC220V±10%/50-60 Hz
Power consumption	:	<400W
Operating condition	:	Temperature; 0~40℃
		Relative humidity; <80%
Dimensions	:	417 L x 401 W x 321 mmH
Weight	:	32 kg
IP rating	:	IP55

주문정보

Drive	Pump head	Tubing	Flowrates(L/min)	Weight(kg)
JL350-2J (05.02.34A)	KZ48	88#	1.3~15	32
JL350-2J (05.02.34A)	KZ48	92#	3~35	32

기술자료

JL350-2J Large Flow Rates Pump External Control Function (Release Time：2016-12-23)

External Control Function ; External analog signal controls the speed: The keys on the panel of frequency converter are invalid by setting the parameters (needs unlock). The speeds are controlled by external control terminals.485 communication interface: By setting the parameters (needs unlock) the master computer can control the pump directly by communication interface.

Note; The frequency converter has many parameter setting items. To avoid misoperation we lock the parameter settings by password.We set the max. frequency of the frequency converter is 65 Hz and the max. speed is 370 rpm.
If other parameters setting are needed please ask for password from our company. But we won't take any responsibility if damage occurs because of parameters changing.

Basic operation of the Frequency Converter for JL350-2J (Release Time：2016-12-23)

The LED display of frequency converter lights when the power supply switches on. But the pump is in stopping status.Run

/stop: Press [Run/Stop] key, the [Run] indicator lights and the pump runs. Press the [Run/Stop] key again the pump stops.Speed Adjustment: Press Speed Adjustment/ Data Input Keys 2 to change the speed of the pump. The LED displays the value of the frequency. The actual speed (rpm) is about 5.8 times of frequency value.

Direction: Press the [MODE/RESET] key continuously till the LED displays [Frd] when the [FWD] indicator which is in the left side of LED screen lights. Press the Speed Adjustment/ Data Input Keys 2, the LED displays [REV]. The [REV] indicator lights at the same time and the motor rotates reversely. When the [REV] indicator which is in the left side of the LED screen lights, switch to [FWD] mode in the same way.

Display Convert: Press the [MODE/RESET] key continuously can show the following parameters alternatively: F: setting the frequency; H: the actual running frequency; A: the current of the motor.

Frequency Converter Troubleshooting: Frequency converter has many warning and protective functions. The motor will stop automatically when the pump is in abnormal status. Eliminate the abnormal status and press the [MODE/RESET] key the pump can work continuously. The letters or the symbols on the LED display show the information of abnormal status. For details please see the <SE Series Frequency Converter Operating Manual >
