상세설명
| Frame No. |
Output (kg/cm) |

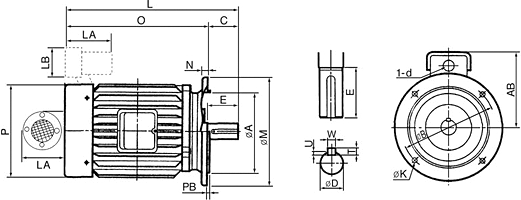

Dimensions (m/m) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | ØA | ØB | C | E | AB | N | ØM | O | P | PB | ØK | ØD | W | U | T | LA | LB | ||
| 71 | 5 | 315 | 110 | 130 | 30 | 30 | 115 | 10 | 160 | 285 | 132 | 3.5 | 10 | 14 | 5 | 3 | 5 | - | - |
| 80 | 10 | 338 | 130 | 165 | 40 | 40 | 140 | 12 | 200 | 298 | 175 | 3.5 | 12 | 19 | 6 | 3.5 | 6 | - | - |
| 80 | 20 | 338 | 130 | 165 | 40 | 40 | 140 | 12 | 200 | 298 | 175 | 3.5 | 12 | 19 | 6 | 3.5 | 6 | - | - |
| 90L | 40 | 401 | 130 | 165 | 50 | 50 | 161 | 12 | 200 | 351 | 192 | 3.5 | 12 | 24 | 8 | 4 | 7 | - | - |
| 100L | 60 | 413 | 180 | 215 | 60 | 60 | 168 | 16 | 250 | 353 | 196 | 4 | 15 | 28 | 8 | 4 | 7 | - | - |
| 112M | 100 | 457 | 180 | 215 | 60 | 60 | 182 | 16 | 250 | 397 | 235 | 4 | 15 | 28 | 6 | 4 | 7 | - | - |
| 132S | 150 | 488 | 230 | 265 | 80 | 80 | 213 | 20 | 300 | 423 | 274 | 4 | 15 | 38 | 10 | 5 | 8 | 190 | 170 |
| 132M | 200 | 528 | 230 | 265 | 80 | 80 | 213 | 20 | 300 | 448 | 274 | 4 | 15 | 38 | 10 | 5 | 8 | 190 | 190 |
| 160M | 300 | 625 | 250 | 300 | 110 | 110 | 265 | 20 | 350 | 515 | 317 | 5 | 19 | 42 | 12 | 5 | 8 | 230 | 190 |
| 160L | 400 | 669 | 250 | 300 | 110 | 110 | 265 | 20 | 350 | 559 | 317 | 5 | 19 | 42 | 12 | 5 | 8 | 292 | 216 |
| 180M | 500 | 745 | 300 | 350 | 110 | 110 | 300 | 20 | 400 | 595 | 365 | 5 | 19 | 48 | 14 | 5.5 | 9 | 292 | 216 |
