YDB Type | YDC Type | Cylone Type |
| | |
| | |
| | |

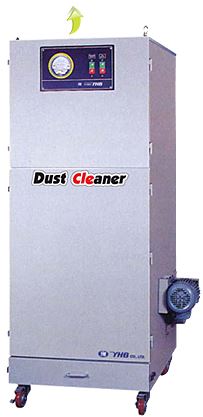

MODEL | YDB-01 | YDB-02 | YDB-03 | YDB-05 | YDB-07 |
A | 520 | 620 | 790 | 790 | 1,500 |
B | 520 | 620 | 790 | 790 | 750 |
C | 1,150 | 1,380 | 1,785 | 1,785 | 1,850 |
D | 125 | 150 | 200 | 250 | 300 |
E | 160 | 180 | 200 | 200 | 200 |
F | 480 | 585 | 735 | 735 | 350 |
G | 140 | 140 | 140 | 140 | 140 |
| 전원 (Power) | 단상/삼상220V 삼상380V | 삼상 220V, 380V, 440V 50Hz,60Hz | |||
| 출력 (Kw) | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 |
| 풍량 (㎥/min) | 12 | 25 | 40 | 60 | 80 |
| 정압 (mmAq) | 210 | 210 | 210 | 250 | 250 |
| Box용량 (L) | 25 | 35 | 50 | 55 | 85 |
| 중량 (Kg) | 100 | 140 | 185 | 195 | 340 |
| 필터재질 | Polyester BAG | Polyester BAG | Polyester BAG | Polyester BAG | Polyester BAG |

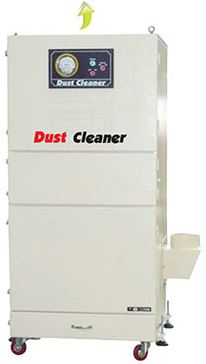

MODEL | YDC-02 | YDC-03 | YDC-05 | YDC-07 | YDC-10 | YDC-15 |
A | 650 | 800 | 900 | 1,300 | 1,700 | 1,700 |
B | 650 | 800 | 900 | 900 | 900 | 900 |
C | 1,595 | 1,780 | 1,840 | 1,840 | 1,840 | 1,970 |
D | 150 | 200 | 250 | 300 | 350 | 400 |
E | 150 | 175 | 225 | 240 | 235 | 270 |
F | 370 | 550 | 370 | 400 | 480 | 490 |
G | 140 | 140 | 140 | 140 | 140 | 140 |
| 전원 (Power) | 삼상 220V, 380V, 440V 50Hz,60Hz | |||||
| 출력 (Kw) | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 5.5 x 2 |
| 풍량 (㎥/min) | 25 | 40 | 60 | 80 | 100 | 130 |
| 정압 (mmAq) | 210 | 210 | 210 | 230 | 230 | 230 |
| Box용량 (L) | 30 | 40 | 50 | 85 | 110 | 110 |
| 중량 (Kg) | 230 | 310 | 390 | 490 | 590 | 740 |
| 필터재질 | Polyeater | Polyeater | Polyeater | Polyeater | Polyeater | Polyeater |

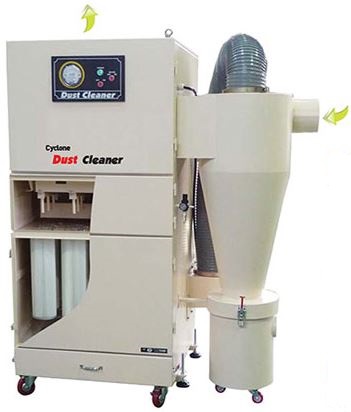

Cyclone Type | YDC-02C | YDC-03C | YDC-05C | YDC-07C | YDC-10C |
C | 95 | 95 | 95 | 95 | 95 |
D | 380 | 500 | 600 | 700 | 900 |
E | 150 | 200 | 250 | 300 | 400 |
F | 1,280 | 1,660 | 2,110 | 2,180 | 2,580 |
G | 280 | 360 | 360 | 460 | 460 |
| 전원 (Power) | 삼상 220V, 380V, 440V 50Hz,60Hz | ||||
| 출력 (Kw) | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 |
| 풍량 (㎥/min) | 20 | 32 | 48 | 64 | 80 |
| 정압 (mmAq) | 250 | 230 | 230 | 250 | 250 |
| 소음 (dB) | 68±2 | 70±2 | 70±2 | 72±2 | 74±2 |
| 중량 (Kg) | 290 | 380 | 420 | 510 | 650 |
| 필터재질 | Polyeater | Polyeater | Polyeater | Polyeater | Polyeater |
