가격 가격협의

모델명 YMC○○○, YOC○○○ MODEL

제품분류 집진기/정화기

업체명 파워링시스템

전화번호 0504-0667-0004

등록일 15.09.10

YMC ○○○

YOC ○○○

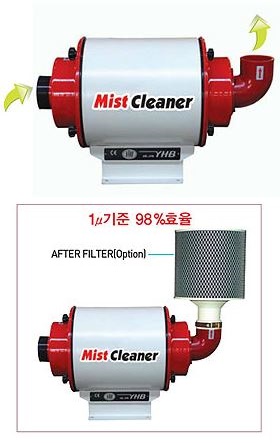

- Mist Cleaner (수용성 절삭유 사용)

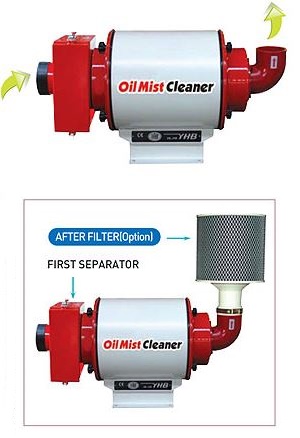

- Oil Mist Cleaner (비수용성 절삭유 사용)

MODEL	A	B	C	D	E	F	G	H	I	J
YMC300	320	409	180	220	210	240	99	322	680	188
YMC350	365	454	180	220	210	240	125	370	800	222
YMC400 YMC420	452	595	280	320	360	400	150	480	973	235

MODEL	AFTER FILTER		MODEL	CHIP SEPARATOR
MODEL	D	H	MODEL	W	L	H
300Type	350	330	YOC300	272	125	275
350Type	350	330	YOC350	307	125	310
400Type 420Type	350	500	YOC400 YOC420	400	185	405

MODEL	YMC 300	YMC 350	YMC 400	YMC 420
Power	3 Phase 220V/380V/440V(50/60Hz)
Motor (KW)	0.4	0.75	1.5	2.2
Ampere (A)	1.7/1.0/0.8	3.5/2.0/1.6	6.5/3.7/3.3	8.5/4.9/4.2
RPM (r.p.m.)	3,450
Wind flow rate(㎥/min)	7	12	25	30
Static pressure(mmAq)	90	120	170	180
Noise (dB)	65±2	68±2	70±2	70±2
Efficiency (%)	98%
Thermal (℃)	50℃
In, outlet (Φ)	100	125	150	150
Weight (Kg)	25	33	55	59
Filter material	POLYERTER

MODEL	YMC300	YMC350	YMC400	YMC420
Power	3 Phase 220V/380V/440V(50/60Hz)
Motor (KW)	0.4	0.75	1.5	2.2
Ampere (A)	1.7/1.0/0.8	3.5/2.0/1.6	6.5/3.7/3.3	8.5/4.9/4.2
RPM (r.p.m.)	3,450
Wind flow rate(㎥/min)	5	10	20	25
Static pressure(mmAq)	90	120	170	180
Noise (dB)	65±2	68±2	70±2	70±2
Efficiency (%)	98%
Thermal (℃)	50℃
In, outlet (Φ)	100	125	150	150
Weight (Kg)	30	37	64	67
Filter material	POLYERTER

※ After filter, Chip separator 장착시 풍압이 약 8% 정도 감소 됩니다.
