특징:

- Material : DIN C45, JIS S45C,

KS SM45C

- Hardness : HRC 20~25

- Nut Grade : Precision class

- Squarness of Nut Face :

⊥0.002~0.015

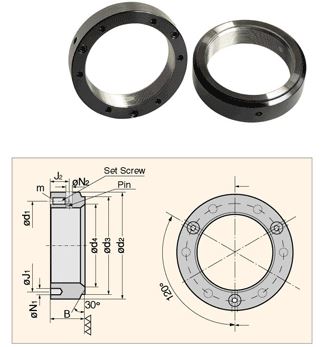

PART NO	THREAD & PITCH	Dimension										Axial Load (KN)	Set Screw (Nm)	Weight (g)
PART NO	THREAD & PITCH	d1	b2	d3	d4	B	g	t	m	m	m	Axial Load (KN)	Set Screw (Nm)	Weight (g)
HB 05	M 25 × 1.5	33.5	42	35	26	20	32.5	11	4.3	5	M6	130	8	120
HB 06	M 30 × 1.5	39	48	40	32	20	40.5	11	4.3	5	M6	160	8	150
HB 07	M 35 × 1.5	44	53	47	38	20	45.5	11	4.3	5	M6	190	8	180
HB 08	M 40 × 1.5	49	58	52	42	22	50.5	12	4.3	5	M6	210	8	210
HB 09	M 45 × 1.5	56.5	68	58	48	22	58	12	4.3	5	M6	240	8	300
HB 10	M 50 × 1.5	60	70	63	52	24	61.5	12	4.3	5	M6	300	8	310
HB 11	M 55 × 1.5	65	75	70	58	24	66.5	13	4.3	5	M6	340	8	350
HB 12	M 60 × 1.5	72	84	75	62	24	74.5	13	5.3	5	M6	380	8	450
HB 13	M 65 × 1.5	76	88	80	68	25	78.5	13	5.3	5	M6	460	8	480
HB 14	M 70 × 1.5	83	95	86	72	26	85	14	5.3	7.9	M10	490	18	570
HB 15	M 75 × 1.5	88	100	91	77	26	88	13	6.4	7.9	M10	520	18	610
HB 16	M 80 × 2	96	110	97	83	30	95	16	6.4	7.9	M10	620	18	910
HB 17	M 85 × 2	100	115	102	88	32	100	17	6.4	9.6	M12	650	35	1050
HB 18	M 90 × 2	105	120	110	93	32	108	17	6.4	9.6	M12	680	35	1100
HB 19	M 95 × 2	110	125	114	98	32	113	17	6.4	9.6	M12	710	35	1150
HB 20	M 100 × 2	115	130	120	103	32	118	17	6.4	9.6	M12	740	35	1200
HB 22	M 110 × 2	128	140	132	112	32	128	17	6.4	9.6	M12	800	35	1350
HB 24	M 120 × 2	138	155	142	122	32	140	17	6.4	9.6	M12	860	35	1700
HB 26	M 130 × 3	148	165	156	132	32	153	17	6.4	9.6	M12	920	35	1900
HB 28	M 140 × 3	160	180	166	142	32	165	17	6.4	9.6	M12	980	35	2250
HB 30	M 150 × 3	173	195	180	152	32	175	17	6.4	9.6	M12	1040	35	2450
HB 32	M 160 × 3	182	205	190	162	32	185	17	8.4	9.6	M12	1100	35	2900
HB 34	M 170 × 3	192	215	205	172	32	195	17	8.4	9.6	M12	1160	35	3150
HB 36	M 180 × 3	205	230	215	182	32	210	17	8.4	9.6	M12	1220	35	3650
HB 38	M 190 × 3	215	240	225	192	32	224	17	8.4	9.6	M12	1280	35	3850
HB 40	M 200 × 3	223	245	237	202	32	229	17	8.4	9.6	M12	1340	35	3700
