특징:
- Material : DIN C45, JIS S45C, KS SM45C - Hardness : HRC 20~25 - Nut Grade : Precision class - Squarness of Nut Face : ⊥0.002~0.015 |
|

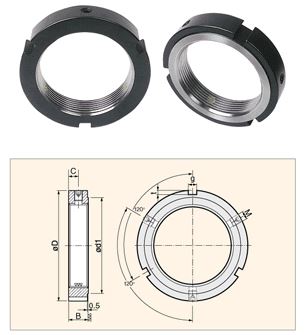

| PART NO | THREAD & PITCH | Dimension | Axial Load (KN) | Set Screw (Nm) | Weight (g) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| øD | B | g | t | ød1 | c | m | |||||
YZM 12 | M 12 × 1.0 | 22 | 8 | 3 | 3 | 16 | 4 | M4 | 26 | 3.5 | 14 |
YZM 15 | M 15 × 1.0 | 25 | 8 | 3 | 3 | 19 | 4 | M4 | 33 | 3.5 | 16 |
YZM 17 | M 17 × 1.0 | 28 | 10 | 4 | 3 | 21 | 5 | M5 | 49 | 4.5 | 24 |
YZM 20 | M 20 × 1.0 | 32 | 10 | 4 | 3 | 25 | 5 | M5 | 55 | 4.5 | 34 |
YZM 25 | M 25 × 1.5 | 38 | 12 | 5 | 3 | 31 | 6 | M6 | 87 | 8 | 54 |
YZM 30 | M 30 × 1.5 | 45 | 12 | 5 | 3 | 38 | 6 | M6 | 110 | 8 | 76 |
YZM 35 | M 35 × 1.5 | 52 | 12 | 5 | 3 | 45 | 6 | M6 | 120 | 8 | 102 |
YZM 40 | M 40 × 1.5 | 58 | 14 | 6 | 3 | 50 | 7 | M6 | 150 | 8 | 144 |
YZM 45 | M 45 × 1.5 | 65 | 14 | 6 | 3 | 56 | 7 | M6 | 170 | 8 | 180 |
YZM 50 | M 50 × 1.5 | 70 | 14 | 6 | 3 | 61 | 7 | M6 | 180 | 8 | 196 |
YZM 55 | M 55 × 2.0 | 75 | 16 | 7 | 4 | 66 | 8 | M6 | 250 | 8 | 240 |
YZM 60 | M 60 × 2.0 | 80 | 16 | 7 | 4 | 70 | 8 | M6 | 270 | 8 | 262 |
YZM 65 | M 65 × 2.0 | 85 | 16 | 7 | 4 | 76 | 8 | M6 | 290 | 8 | 282 |
YZM 70 | M 70 × 2.0 | 92 | 18 | 8 | 4 | 82 | 9 | M8 | 350 | 18 | 378 |
YZM 75 | M 75 × 2.0 | 98 | 18 | 8 | 4 | 87 | 9 | M8 | 370 | 18 | 422 |
YZM 80 | M 80 × 2.0 | 105 | 18 | 8 | 4 | 92 | 9 | M8 | 390 | 18 | 492 |
YZM 85 | M 85 × 2.0 | 110 | 18 | 8 | 4 | 99 | 9 | M8 | 400 | 18 | 524 |
YZM 90 | M 90 × 2.0 | 120 | 20 | 10 | 4 | 105 | 10 | M8 | 470 | 18 | 750 |
YZM 95 | M 95 × 2.0 | 125 | 20 | 10 | 4 | 110 | 10 | M8 | 490 | 18 | 782 |
YZM 100 | M 100 × 2.0 | 130 | 20 | 10 | 4 | 116 | 10 | M8 | 510 | 18 | 826 |
YZM 105 | M 105 × 2.0 | 140 | 22 | 12 | 5 | 122 | 11 | M10 | 560 | 35 | 1108 |
YZM 110 | M 110 × 2.0 | 145 | 22 | 12 | 5 | 129 | 11 | M10 | 600 | 35 | 1164 |
YZM 120 | M 120 × 2.0 | 155 | 24 | 12 | 5 | 136 | 12 | M10 | 710 | 35 | 1378 |
YZM 130 | M 130 × 2.0 | 165 | 24 | 12 | 5 | 145 | 12 | M10 | 760 | 35 | 1480 |
YZM 140 | M 140 × 2.0 | 180 | 26 | 14 | 6 | 156 | 13 | M12 | 880 | 60 | 1958 |
YZM 150 | M 150 × 2.0 | 195 | 26 | 14 | 6 | 167 | 13 | M12 | 930 | 60 | 2404 |
YZM 160 | M 160 × 3.0 | 210 | 28 | 16 | 7 | 178 | 14 | M12 | 980 | 60 | 3080 |
YZM 170 | M 170 × 3.0 | 220 | 28 | 16 | 7 | 189 | 14 | M12 | 1130 | 60 | 3256 |
YZM 180 | M 180 × 3.0 | 230 | 30 | 18 | 8 | 199 | 15 | M12 | 1300 | 60 | 3628 |
YZM 190 | M 190 × 3.0 | 240 | 30 | 18 | 8 | 210 | 15 | M12 | 1470 | 60 | 3928 |
YZM 200 | M 200 × 3.0 | 250 | 32 | 18 | 8 | 222 | 16 | M12 | 1600 | 60 | 4330 |
