Applications

The TPHP pumps are primarily designed for industrial applications:

- Water supply and pressure boosting

- Air-conditioning

- Water treatment

- Heating and cooling in industrial processes

- Industrial washing and dish-washing machines

- Softened water

- Pressure boosting of process water

- Fertilizer/dosing systems

Operating Conditions

1. Ambient temperature :Max. +40°C

2. Liquid temperature range:+0°C ~ +90°C

3. Operating pressure:Max. 10 kg/cm²

4. Inlet pressure:Max. 6 kg/cm²

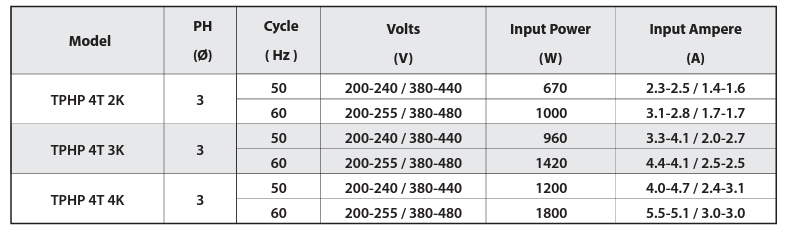

Electrical data, 50/60Hz
