MP-C

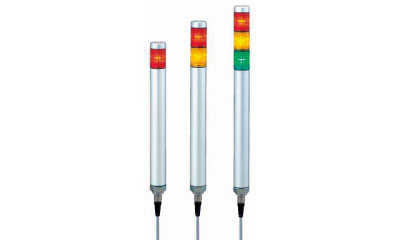

Slim -style Signal Tower
Slim LED tower with silver-colored body and a compact design at 30mm (1-1/4-inch) diameter, Body Length 220mm.
? Includes an M-12 Quick Connector.
? PATLITE's exclusive hybrid prism-cut lens to enhance visibility from any direction and distance.
? Double Insulation for enhanced durability and safety in the work environment.
?Direct mount installation with just a single hole.
? Interchangeable LED modules needing no re-wiring, even after installation.
? Main Body made of heat resistant ABS resin for superior impact resistance.
? Lens made with light translucent AS resin for superior weather resistance.
? Available colors are in Red, Amber and Green.
| SIZE | - 30mm diameter |
|---|---|
| INPUT VOLTAGES | - 24V AC/DC |
| FUNCTIONS | - Continuous Lighting Only - Dry contact closure such as switches or relay contacts - Open-collector transistor (NPN or PNP) for DC24V - Direct voltage control |
| MOUNTING | - Direct mount only: includes M22 mounting nut and sealing gasket |
| BODY STYLE | - M-12 Quick Connector (Cable sold separate) - Pre-assembled, pre-wired - Modules interchangeable and stackable after purchase |
| BODY COLOR | - Body: Silver |
| TIERS | - From 1 to 3 modules can be stacked |
| MODULE COLORS | - Red - Amber - Green |
| CONFORMITY STANDARDS | - CE Marking - UL Component Recognition (US) - c-UL Component Recognition (Canada) - RoHS Compliant |
| PROTECTION RATINGS | - IP-65 |
