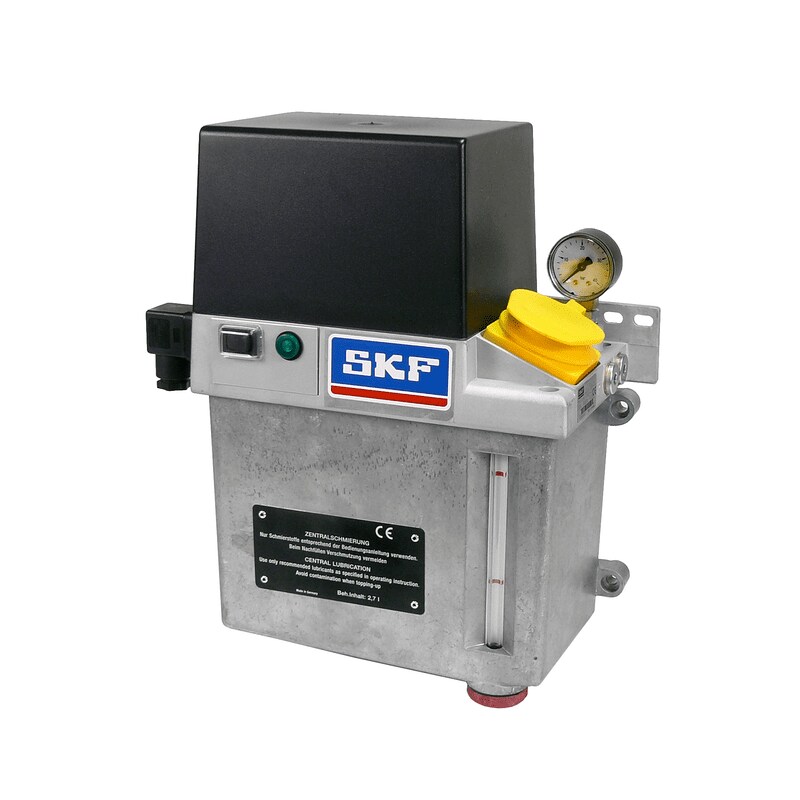

MKx
- SKF MonoFlex single-line lubrication systems
- SKF Oil+Air lubrication systems
The modular structure of the units of the MKx product series makes them attractive to machine manufacturers as well as to end users and dealers.
Models of the MKx series:
- MKU
for SKF MonoFlex single-line lubrication systems for oil - MKF
for SKF MonoFlex single-line lubrication systems for fluid grease - MKL
for SKF Oil+Air lubrication systems
Technical features:
- Lubricant:
MKU / MKL: oil (operating viscosity: 20 ? 1500 mm²/s)
MKF: fluid grease of NLGI Grades 000, 00 - Reservoir capacities:
MKU:2; 3; 6 l plastic or 3 l metal reservoir
MKF: 2; 3; 6 l plastic reservoir
MKL: 3; 6 l plastic or 3 l metal reservoir - Number of outlets: 1
- Delivery rate: 0,1; 0,2; 0,5 l/min
- Operating pressure: 30 bar
- Operating temperature: 10 to 40 °C
Special features:
- CE mark of conformity
- electrical pressure monitoring with pressure switch
- visual pressure monitoring with pressure gauche
- integrated control unit
- level monitoring
- 24 V version available
- MKL: controller to analyse input from external pressure switch
