Encoders Absolute multiturn

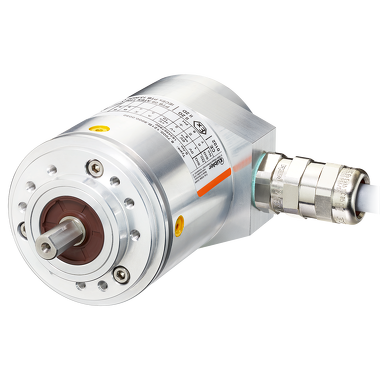

Sendix 7068













Encoders, bearingless encoders and motor feedback systems

Rotative speed measurement and position detection. Optical or magnetic. Incremental or absolute

• Explosion protection and field bus communication: Encoders with ATEX / IECEx approval.

  The absolute encoders Singleturn Sendix 7068 / 7088 with PROFIBUS DP interface and optical sensors offer explosion protection in a compact 70 mm housing made of seawater-resistant aluminum. These shock- and vibration-resistant encoders operate flexibly with a total resolution of up to 28 bits and are available with axial and radial cable outlets.

  Dimension

  Ø 70 mm

  Resolution

  16 bits singleturn

  12 bits multiturn

  Shaft type

  Max 10 mm shaft, with flat surface

  Max 12 mm shaft, with keyway



  Pressure-resistant enclosure Particularly resistant Latest encoder profile

  Dimension Ø 70 mm 16 bits singleturn 12 bits multiturn Max 10 mm shaft, with flat surface Max 12 mm shaft, with keyway

•
