Encoders Absolute multiturn

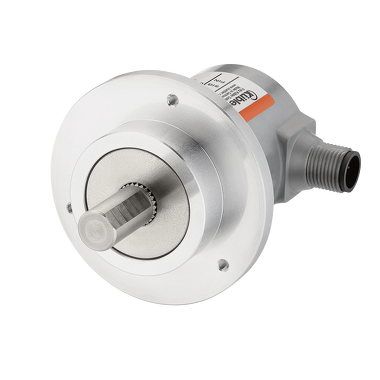

Sendix M5863











Encoders, bearingless encoders and motor feedback systems

Rotative speed measurement and position detection. Optical or magnetic. Incremental or absolute

• Energy Harvesting Technology: Electronic multiturn encoders.

  The Sendix M5863 absolute encoder with Energy Harvesting Technology and SSI interface is an electronic multiturn encoder without gears and without battery - in standard format with 58 mm flange. Due to its high robustness and high resolution, it is ideally suited for use in demanding applications.

  Dimension

  Ø 58 mm

  Resolution

  14 bits singleturn

  24 bits multiturn

  Shaft type

  Max 10 mm shaft, with flat surface

  With 58 mm flange Particularly resistant Magnetic – robust

  Dimension Ø 58 mm 14 bits singleturn 24 bits multiturn Max 10 mm shaft, with flat surface
