Encoders Absolute multiturn

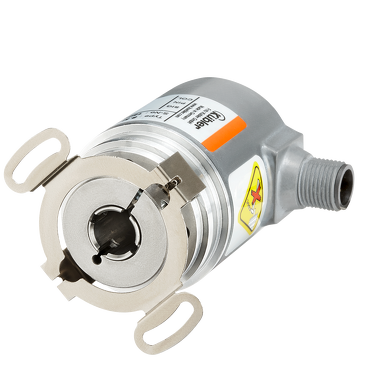

Sendix M3688









Encoders, bearingless encoders and motor feedback systems

Rotative speed measurement and position detection. Optical or magnetic. Incremental or absolute

• Encoder with IO-Link Interface – Ready for Industry 4.0 / IIoT.

  The Sendix M36 with Energy Harvesting Technology is an electronic multiturn encoder in a compact design, without gear and without battery.
  It is characterized by robustness, reliability and cost-efficiency.
  With Smart Sensor Profile for easy and fast integration into the application.

  Dimension

  Ø 36 mm

  Resolution

  14 bits singleturn

  18 bits multiturn

  Shaft type

  Max 10 mm hollow shaft, blind hole

  Max 1/4" hollow shaft, blind hole

• Resistant Wear-free Magnetic – robust

  Dimension Ø 36 mm 14 bits singleturn 18 bits multiturn Max 10 mm hollow shaft, blind hole Max 1/4" hollow shaft, blind hole
