Encoders Absolute singleturn

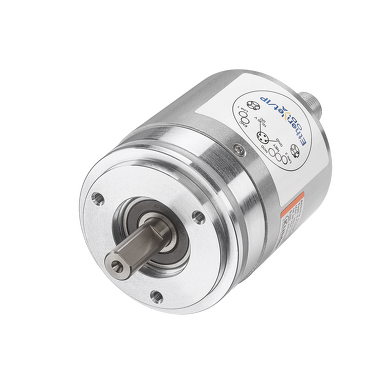

Sendix F5858















Encoders, bearingless encoders and motor feedback systems

Rotative speed measurement and position detection. Optical or magnetic. Incremental or absolute

New generation - ready for the future.

The optical absolute singleturn and multiturn Sendix F58 EtherNet/IP encoders are based on the latest CIP version v3.32 and EtherNet/IP version v1.30.
Key features are neighborhood detection, gear factor, the calculation of acceleration and simultaneous connection to up to 5 controllers. Thanks to the new framework, the functionality can be extended at any time via the integrated web server by update.

• Dimension

  Ø 58 mm

  Resolution

  19 bits singleturn

  Shaft type

  Max 10 mm shaft, with flat surface

  Max 3/8" shaft, with flat surface

  Powerful – RPI time of 1 ms Industry 4.0 / IIoT ready Without gear with 100% magnetic insensitivity

  Dimension Ø 58 mm 19 bits singleturn Max 10 mm shaft, with flat surface Max 3/8" shaft, with flat surface
