Encoders Absolute singleturn

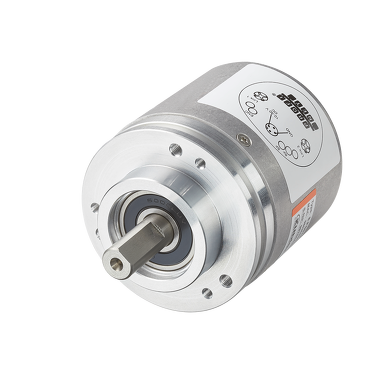

Sendix F5858















Encoders, bearingless encoders and motor feedback systems

Rotative speed measurement and position detection. Optical or magnetic. Incremental or absolute

New generation Industrial Ethernet encoders with PROFINET IO interface.

The Sendix F58 singleturn is a particularly high resolution optical encoder without gears and with 100 percent magnetic insensitivity. 19 bits total resolution, shaft up to 10 mm, blind hollow shaft up to 15 mm and certified PROFINET functionality. A minimum cycle time of 250 µs, the PROFIdrive application profile and a web server for FW updates are supported.

• Dimension

  Ø 58 mm

  Resolution

  19 bits singleturn

  Shaft type

  Max 10 mm shaft, with flat surface

  Max 3/8" shaft, with flat surface

  High precision Without gear with 100% magnetic insensitivity Industry 4.0 / IIoT ready

  Dimension Ø 58 mm 19 bits singleturn Max 10 mm shaft, with flat surface Max 3/8" shaft, with flat surface
