Sendix 5873FS3

Encoders, bearingless encoders and motor feedback systems

Rotative speed measurement and position detection. Optical or magnetic. Incremental or absolute

Safe position acquisition up to SIL3/PLe.

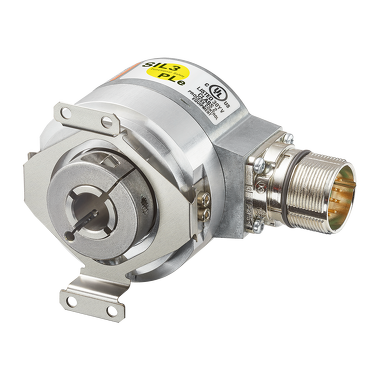

The absolute singleturn encoders 5853FS3 and 5873FS3 are suitable for use in safety-related applications up to SIL3 according to EN 61800-5-2 or PLe according to EN ISO 13849-1. The specially interlocked bearings in the Safety Lock™ design, the high integration density of the OptoASIC-based components and the stable die-cast housing make them perfect for demanding outdoor applications up to IP67.

Dimension
Ø 58 mm
Resolution
2.048 ppr incremental

17 bits singleturn
Shaft type
Max 14 mm hollow shaft, through
For safe drive technology

Certified solution

Reliable
Dimension Ø 58 mm

2.048 ppr incremental

17 bits singleturn

Max 14 mm hollow shaft, through
