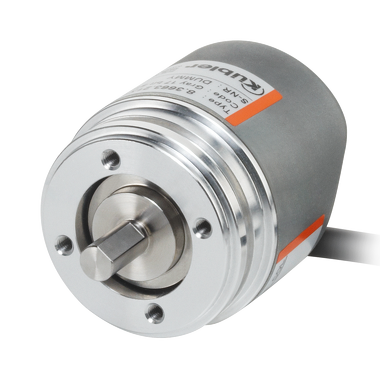

Sendix F3658

Encoders, bearingless encoders and motor feedback systems

Rotative speed measurement and position detection. Optical or magnetic. Incremental or absolute

Intelligent Scan Technology™ – powerful and economical at the same time.

The absolute encoders Singleturn Sendix F3658 / F3678 with patented Intelligent Scan Technology™ and CANopen interface are characterized by special robustness and compactness. With dimensions of only 36 x 42 mm, a shaft or blind hollow shaft up to 10 mm is available. Its high-precision optical electronics achieve a resolution of 16 bits.




Dimension Ø 36 mm Resolution 16 bits singleturn Shaft type Max 10 mm shaft, with flat surface Max 3/8" shaft, with flat surface

High precision
Particularly resistant
Without gear with 100% magnetic insensitivity

Dimension Ø 36 mm
16 bits singleturn
Max 10 mm shaft, with flat surface
Max 3/8" shaft, with flat surface
