5824

Encoders, bearingless encoders and motor feedback systems

Rotative speed measurement and position detection. Optical or magnetic. Incremental or absolute

Sine output with reference signal – for drive technology.

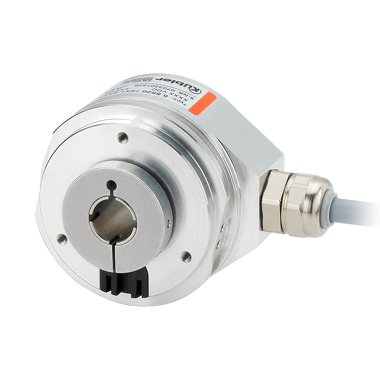

The incremental encoders 5804 / 5824 have a SinCos interface. They are particularly suitable for use in drive technology.
These encoders are preferably used in applications where a standard SinCos interface is sufficient.

Dimension

Ø 58 mm

Resolution

5.000 ppr incremental

Shaft type

Max 12 mm hollow shaft, blind hole

Max 12 mm hollow shaft, through

Reliable
Resistant
High speed

Dimension Ø 58 mm
5.000 ppr incremental
Max 12 mm hollow shaft, blind hole
Max 12 mm hollow shaft, through
