상세설명
|

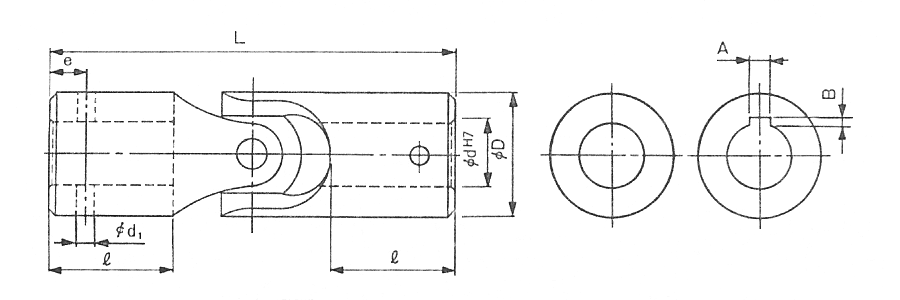

단위 : mm
|
|
형식
|
Ød
|
L
|
ØD
|
ℓ
|
정적파괴TORQUE(kgf-m)
|
정적파괴인장압축하중(kg)
|
중량(kg)
|
|
B-6
|
6
|
50
|
12
|
18.5
|
4.6
|
750
|
0.02
|
|
B-8
|
8
|
56
|
16
|
19
|
9.7
|
907
|
0.075
|
|
B-10
|
10
|
68
|
20
|
23
|
18.5
|
1,450
|
0.13
|
|
B-12
|
12
|
84
|
24
|
29
|
20
|
3,300
|
0.20
|
|
B-14
|
14
|
94
|
28
|
31.5
|
50
|
4,700
|
0.40
|
|
B-16
|
16
|
104
|
32
|
34.5
|
60
|
5,480
|
0.52
|
|
B-18
|
18
|
120
|
36
|
40
|
90
|
5,940
|
0.70
|
|
B-20
|
20
|
124
|
40
|
40
|
120
|
8,330
|
1.06
|
|
B-22
|
22
|
130
|
44
|
41
|
144
|
9,200
|
1.30
|
|
B-25
|
25
|
140
|
50
|
43
|
254
|
12,190
|
1.82
|
|
B-30
|
30
|
178
|
60
|
56
|
330
|
17,800
|
2.80
|
|
B-35
|
35
|
200
|
70
|
62
|
530
|
23,698
|
4.60
|
|
B-40
|
40
|
228
|
80
|
70
|
1,000
|
34,125
|
7.00
|
|
B-45
|
45
|
250
|
90
|
76
|
1,260
|
43,130
|
10.0
|
|
B-50
|
50
|
270
|
100
|
80
|
1,520
|
50,978
|
13.0
|
|
B-60
|
60
|
300
|
120
|
84
|
1,850
|
76,782
|
20.0
|
|
B-70
|
70
|
312
|
126
|
86
|
2,100
|
76,782
|
25.0
|
|
B-80
|
80
|
360
|
140
|
100
|
2,500
|
82,575
|
36.0
|
|
B-100
|
100
|
450
|
176
|
135
|
3,200
|
107,853
|
67.0
|
