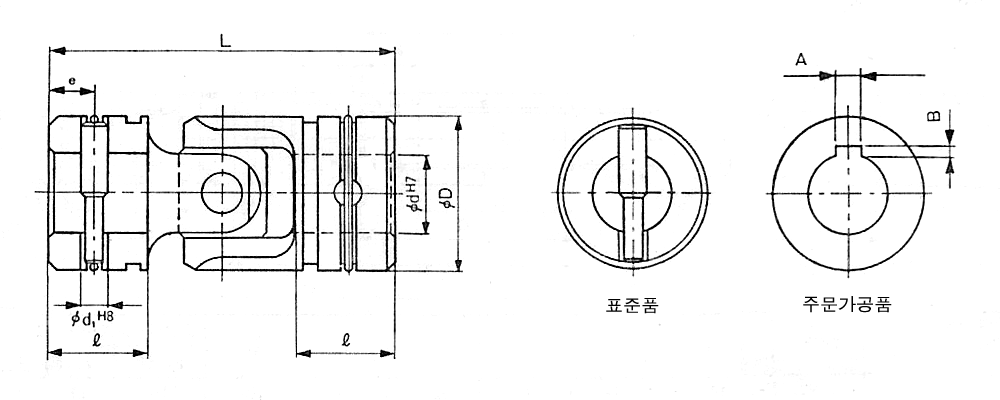

상세설명
|
단위 : mm
|
|
형식
|
Ød
|
L
|
ØD
|
ℓ
|
e
|
Ød₁
|
정적파괴TORQUE(kgf-m)
|
정적파괴인장압축하중(kg)
|
중량(kg)
|
|
SB-6
|
6
|
31
|
12
|
9
|
4.5
|
3
|
3.2
|
550
|
0.015
|
|
SB-8
|
8
|
36
|
15
|
10
|
5
|
3.5
|
6.3
|
800
|
0.030
|
|
SB-10
|
10
|
42
|
19
|
12
|
6
|
4.5
|
13
|
1,420
|
0.055
|
|
SB-12
|
12
|
52
|
23
|
15
|
7.5
|
5
|
21
|
2,440
|
0.110
|
|
SB-14
|
14
|
59
|
26
|
17
|
8.5
|
5.8
|
35
|
2,700
|
0.155
|
|
SB-16
|
16
|
74
|
30
|
22
|
11
|
6.5
|
45
|
3,980
|
0.260
|
|
SB-18
|
18
|
81
|
33
|
23.5
|
11.75
|
7
|
52
|
4,520
|
0.345
|
|
SB-20
|
20
|
87
|
36
|
25
|
12.5
|
8
|
63
|
5,330
|
0.465
|
|
SB-22
|
22
|
94
|
40
|
27
|
13.5
|
9
|
85
|
6,960
|
0.630
|
|
SB-25
|
25
|
105
|
44
|
30
|
15
|
10
|
140
|
8,310
|
0.790
|
|
SB-30
|
30
|
122
|
51
|
35
|
17.5
|
11.5
|
218
|
10,580
|
1.160
|
|
SB-35
|
35
|
140
|
59
|
40
|
20
|
13
|
380
|
14,670
|
2.255
|
|
SB-40
|
40
|
157
|
67
|
45
|
22.5
|
14.5
|
560
|
19,320
|
2.730
|
|
SB-45
|
45
|
176
|
75
|
50
|
25
|
16
|
630
|
23,210
|
4.350
|
|
SB-50
|
50
|
191.4
|
83
|
55
|
27.5
|
17.5
|
760
|
29,080
|
5.200
|
|
SB-60
|
60
|
236
|
98
|
70
|
35
|
22
|
1,510
|
43,490
|
6.538
|
