슈퍼피니싱머신

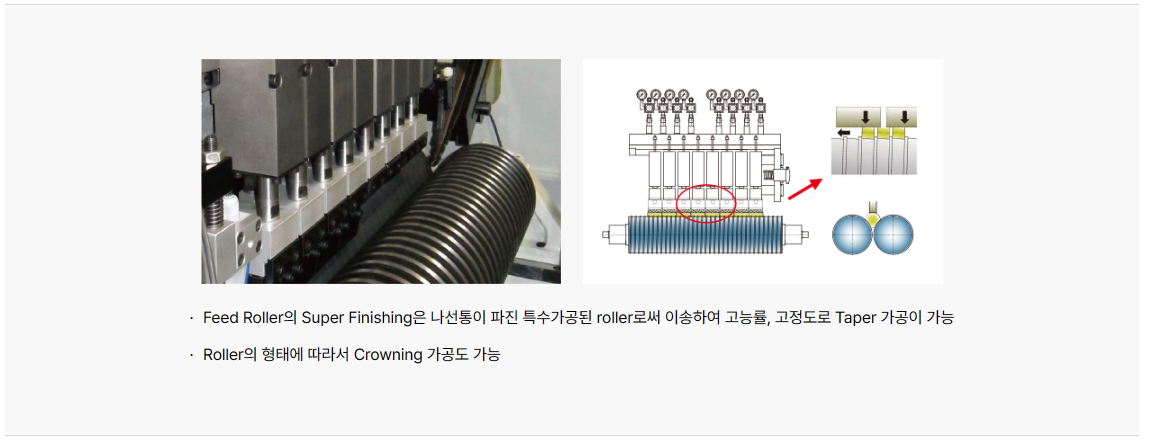

• 쌍곡선체 Feed-roll 사용
  - 지석과 제품이 평행으로 가공
• 지석마모 검출
• 좌우 상하 대칭으로 Air Bearing 채용
  - 부분 마모시 상호보완

• SPEC

  ITEM		TRS-500	TRS-660	TRS-660R
  Working range	Out diameter	Ø2 ~ Ø60mm
  	Length	Max. 500mm	Max. 660mm	Max. 30mm
  Workpiece supplying		Thru- feed (Feed roll)
  Oscillation	Slide	Air Bearing Slide
  	Stroke	0 ~ 3mm (Cam Exchange)
  	Frequency	100 ~ 2,000cpm (Inverter Control)
  Stone head	Stone pressure	Air cylinder
  	Unit	6 Heads	8 Heads
  Feed roll	Out diameter	Φ70 ~ Φ110		Φ120 ~ Φ180
  	Shape	Hyperbolic curve feed roller		Feed roll for tapered roller
  Motor	Feed box	2.2kw, 4p	3.7kw, 4p
  	Oscillation	1.5kw, 4p	1.5kw, 4p
  Floor size		1,580 x 990mm	1,580 x 990mm
  Weight		2,500kg	3,200kg

•
