Measuring Wheel Systems

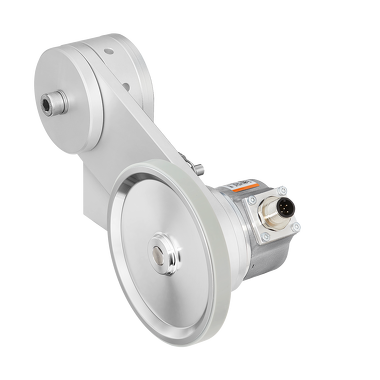

MWE61

Maximum contact pressure
Flexible assembly
Different measuring wheels
Various encoders
Resolution max. 10.000 ppr incremental
Contact force 40 N
Measuring wheel circumference
· 300 mm
· 500 mm
· 12"

Capture linear movements rotationally
Measuring wheel systems from Kübler are the ideal solution for reliable speed, position and distance measurement in applications with linear movements. These are recorded rotationally via the measuring wheel with attached encoder directly on the surface of the material to be measured and converted into linear data.
The robust MWE61 measuring wheel system offers maximum spring travel at maximum contact force to compensate for tolerances perpendicular to the transport movement of the material to be measured.
