Measuring Wheel Systems

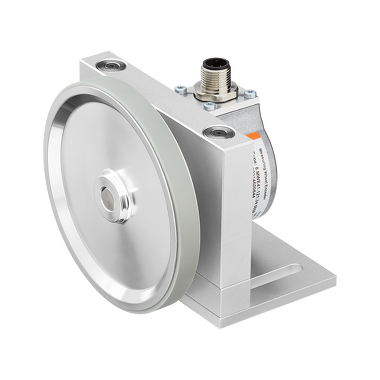

MWE41

Compact solution
Flexible assembly
Different measuring wheels
Various encoders
Resolution max. 10.000 ppr incremental
Contact force 25 N
Measuring wheel circumference
· 300 mm
· 12"

Capture linear motion rotationally
Measuring wheel systems from Kübler are the ideal solution for reliable speed, position and distance measurement in applications with linear movements. These are recorded rotationally via the measuring wheel with attached encoder directly on the surface of the material to be measured and converted into linear data.
The MWE41 measuring wheel system with internal springs can be quickly and easily integrated into many applications.
