Draw-wire encoders

C105

Encoder freely selectable
Simple mounting
Interchangeable installation for encoders
Max. measuring length 6 m
Speed 3 m/s
max. linearity ±0,1 %

Draw wire encoder - flexible encoder mounting.

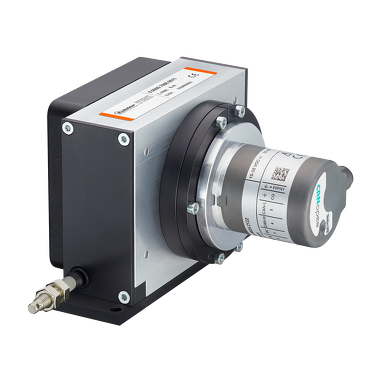

The draw-wire encoder C105 features a compact design. It is available with various wire types. All encoders with 58 mm synchro flange and 6 mm shaft, as well as analog sensors with redundant interfaces can be combined with this draw-wire mechanism. The cable and connector orientations of the encoder can easily be adapted to the position of the mechanism. A flexible wire outlet compensates mounting tolerances
