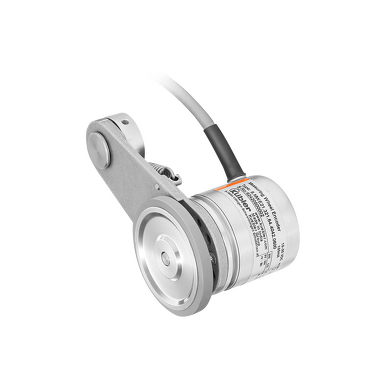

Measuring Wheel Systems

MWE21

Precise measuring
Compact solution
Flexible assembly
Different measuring wheels
Resolution max. 3.600 ppr incremental
Contact force 20 N
Measuring wheel circumference
· 200 mm
· 6"

With adjustable preload
Measuring wheel systems from Kübler are the ideal solution for reliable speed, position and distance measurement in applications with linear movements. These are recorded rotationally directly on the surface of the material to be measured via the measuring wheel with attached encoder and converted into linear data.
The compact measuring wheel system MWE21 with adjustable preload can be integrated very flexibly even in the tightest installation spaces.
