상세설명

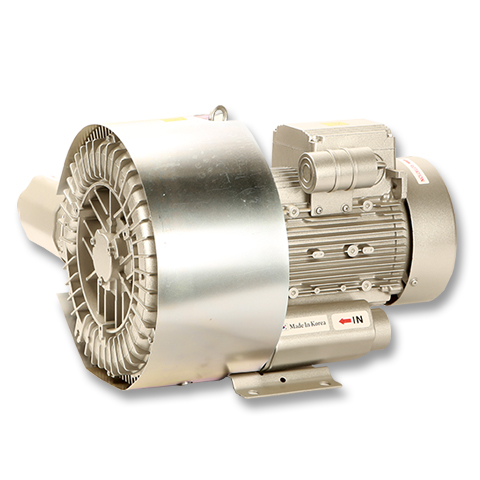

IHB- 402S-1,402-1 Single Phase (1Ø)
| 항 목 | IHB-402S-1 | IHB-402-1 | |||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| 상수 Phase | 1 | 1 | 1 | 1 | |
| 모터 Motor | HP | 2 | 2 | 3 | 3 |
| kW | 1.5 | 1.5 | 2.2 | 2.2 | |
| 소음 Sound Level | dB(A) | 68 | 75 | 68 | 75 |
| 전류 Current(A) | 220V | 11.5 | 11.5 | 15 | 15 |
| 정격토출 Rated Pressure | mmaq | 2500 | 2500 | 3500 | 3500 |
| inch | 98.43 | 98.43 | 137.80 | 137.80 | |
| psig | 3.56 | 3.56 | 4.98 | 4.98 | |
| 정격흡입 Rated Vacuum | mmaq | 2300 | 2400 | 2500 | 2600 |
| inch | 90.55 | 94.49 | 98.43 | 102.36 | |
| psig | 3.27 | 3.41 | 3.56 | 3.70 | |
| 최대풍량 Max Air Flow | ㎥/min | 2.5 | 3.2 | 2.5 | 3.2 |
| cfm | 88.3 | 113.0 | 88.3 | 113.0 | |
| 재질 Material | Impeller | ALDC12.1 | ALDC12.1 | ||
| Casing | ALDC12.1 | ALDC12.1 | |||
| 베어링 Bearing | Front/Rear | 6204z/6205zz | 6204z/6205zz | ||
| 무게 Weight | 35.4 | 39.4 | |||
| 콘덴서 Capacitor | 300Vac/40㎌ | 300Vac/60㎌ | |||
| 절연계급 Insulation Class | F | F | |||
