Shaft copying systems

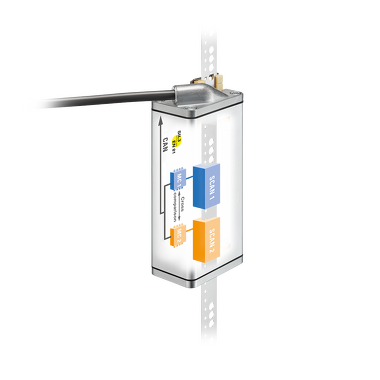

Ants LES03

Safe position and speed detection
100% slip-free
Maximum compact
Teachable nominal speed
Electronical overspeed governor
Max. measuring length 392 m
Speed 8 m/s
Resolution max. 0,5 mm
Accuracy 1 mm

The sensor Ants LES03 is an extremely robust, compact and non-contact measuring system. With a resolution of 0.5 mm and a travel speed of up to 8 m/s, both absolute position values and the speed of the car are detected without slippage via a non-contact measuring principle.
In combination with the Safe Gear Trigger SGT02, mechanical speed governors can be replaced as the Kübler Safe-System LES03/SGT02.
In the Kübler Safe-System LES03/SGT02/PSU02, a large number of additional safety functions are realized by the evaluation unit PSU02.
