Shaft copying systems

Ants LES02

Safe position and speed detection
100% slip-free
Maximum compact
Digitalization of elevator systems
Max. measuring length 392 m
Speed 12 m/s
Resolution max. 0,5 mm
Accuracy 1 mm

Shaft copy system – safe and absolute positioning of the elevator car.

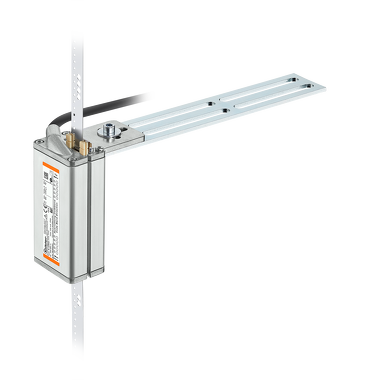

The sensor Ants LES02 is an extremely robust, compact and contactless measuring system. With a resolution of 0.5 mm and a travel speed of up to 12 m/s, absolute position values of the elevator car are determined slip-free via a contactless measuring principle.
In combination with the PSU02 evaluation unit, numerous elevator and safety functions can be implemented as the Kübler LES02/PSU02 Safe System.
