Shaft copying systems

Ants LEB02

Precise position feedback
100% slip-free
Conveyor heights up to 392 m
Maximum compact
Max. measuring length 392 m
Speed 8 m/s
Resolution max. 0,25 mm
Accuracy ±1 mm

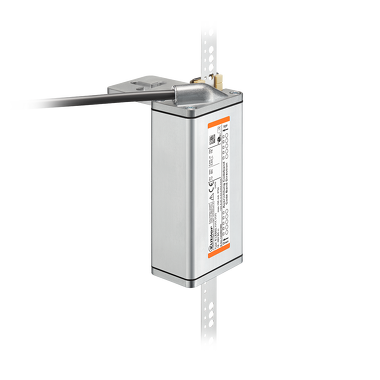

Shaft copying system – absolute positioning of the elevator car.
LEB02 is an extremely robust, compact and contactless measuring system. With a resolution of 1 mm and a travel speed of up to 8 m/s, absolute position values of the elevator car are determined slip-free via a contactless measuring principle. Additional components such as magnetic switches become superfluous.
The simple mounting in particular reduces installation times and thus contributes to lowering overall costs.
