상세설명
|
L.V.D.T / PROBE Sensor |
|
|
● Linear Position Sensor
|
· Compact한 형상으로 취급이 용이함.
· DC 출력 방식이며 입력전압 출력전압비로 출력.
· 반복성이 우수하며 소형으로 취급이 용이함.
|
● Specifications |
||
|
Rated capacity |
10, 30, 50 mm |
80, 100 mm |
|
Nonlinearity |
±0.3% of R.O |
±0.4% of R.O |
|
Hysteresis |
±0.2% of R.O |
±0.1% of R.O |
|
Repeatability |
±0.2% of R.O |
±0.1% of R.O |
|
Toral resistance (±20%) |
2kΩ (stroke 5~10mm) 5kΩ (stroke 30~100mm) |
|
|
Termperature range compensated |
-10℃ ~ 70℃ |
|
|
Terminal range safe |
0℃ ~ 60℃ |
|
|
Exitation recommeneded |
10V DC |
|
|
Cable |
Ø4, Shield 5M |
|
|

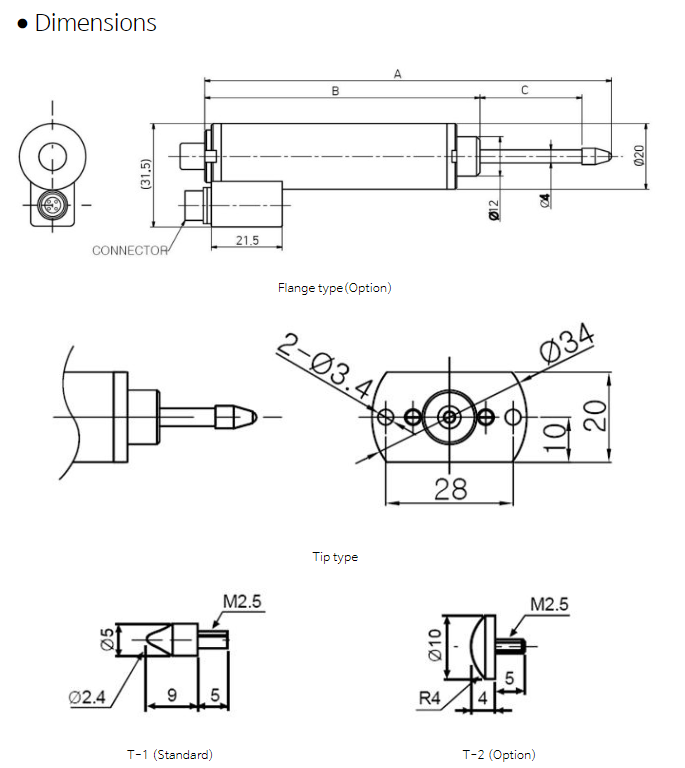

Dimensions table |
|||
|
Stroke |
A |
B |
C |
|
10 mm |
83.5 |
63.5 |
Useful Stroke +0.5 / -0 |
|
30 mm |
123.5 |
83.5 |
Useful Stroke +0.5 / -0 |
|
50 mm |
163.5 |
103.5 |
Useful Stroke +0.5 / -0 |
|
80 mm |
245 |
155 |
Useful Stroke +0.5 / -0 |
|
100 mm |
265 |
155 |
Useful Stroke +0.5 / -0
|
