Bolt Size

Plate Size

Tensil strength

Suitable drill

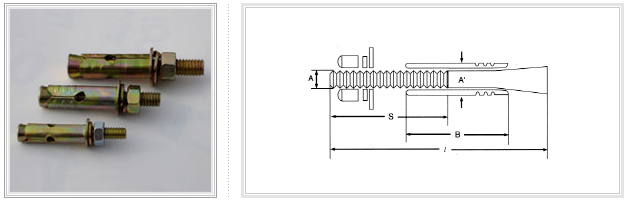

Bolt Size (A)

Total length (l)

Screw length(S)

Drgee (A")

Pipe length (B)

M6 (W1/4)

50

25

10.0

30

740 Kgf

11.0

M8 (W5/16)

60

30

12.0

35

2,120

12.5

M10 (W3/8)

75

45

14.0

40

2,930

14.5

100

70

125

85

150

100

200

150

250

180

300

230

M12 (W1/2)

100

60

17.0

50

4,710

18.0

125

75

150

100

200

150

250

180

300

230

M16 (W5/8)

100

50

4,740

22.0

125

70

21.0

65

5,200

150

90

200

140

250

180

300

230

7,690

M20 (W3/4)

150

80

6,500

26.5

200

130

25.0

75

16,880

250

180

300

230

M22 (W7/8)

200

130

28.0

95

19,750

29.0

250

180

300

230

M24 (W1")

200

130

32.0

110

27,600

33.0

250

180

300

230
