상세설명
폭기용,양식장 공기 보급용 생산라인의
압송,진공용

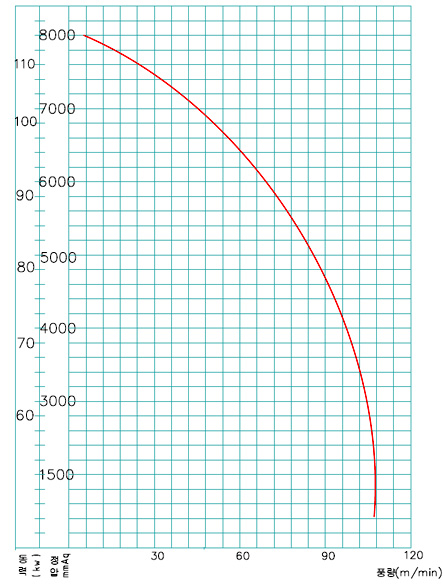

기종선정표 (SPTB-6C10LS)
|
NO. |
DESCRIPTION |
SIZE |
MAT'L |
WEIGHT(kg) |
REMARKS |
|
|
UINT |
TOTAL | |||||
|
1 |
INLET | 150A | FC | 1 | ||
|
2 |
OUTLET | 150A | FC | 1 | ||
|
3 |
INTERMEDIATE DEFLECTOR | Ø760x92L | FC | 9 | ||
|
4 |
IMPELLER | Ø610x25L | AL | 10 | ||
| 5 | SHAFT | Ø90x1576L | CM4 | 1 | ||
| 6 | TRUST BEARING | #7211A | PUR | 1 | ||
| 7 | BALL BEARING | #6411xC3 | PUR | 2 | ||
| 8 | CARBON SEAL | Ø100x12L | CARBON | 2 | ||
| 9 | WATER JOCKET | Ø270x96L | FC | 2 | ||
| 10 | OIL HOUSING | Ø258x75L | FC | 2 | ||
| 11 | BEARING HOUSING | Ø204x129L | FC | 2 | ||
| 12 | OIL VENT LINE | - | HOSE | 1 | ||
| 13 | OILER | W/SIGHT | PUR | 1 | ||
