상세설명

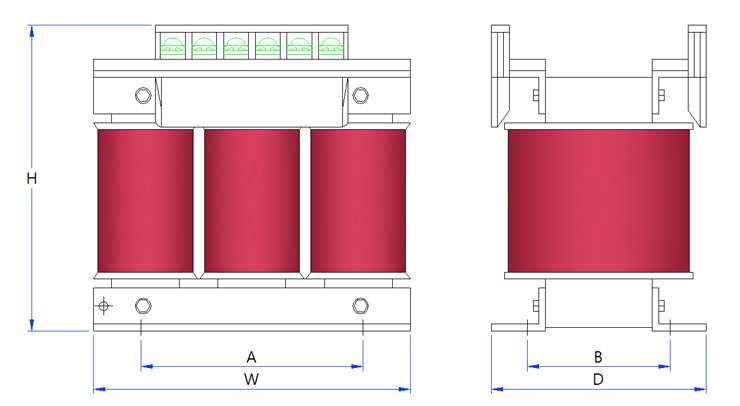

| MODEL NO. | TYPE | 사양(SPECIFICATION) | 외형치수(DIMENSION mm) | 중량(㎏) | 결선 | ||||||
| PRI.(V) | SEC.(V) | 용량(VA) | W | H | D | A | B | ||||
| HD3PS-3822-200W | TB | 380V | 220V | 200 | 140 | 145 | 80 | 100 | 55 | 3 | Y-Y |
| HD3PS-3822-500W | TB | 380V | 220V | 500 | 160 | 155 | 130 | 120 | 75 | 6.3 | Y-Y |
| HD3PS-3822-1KW | TB | 380V | 220V | 1K | 195 | 185 | 140 | 140 | 75 | 8.2 | Y-Y |
| HD3PS-3822-2KW | TB | 380V | 220V | 2K | 195 | 185 | 155 | 140 | 100 | 13.2 | Y-Y |
| HD3PS-3822-3KW | TB | 380V | 220V | 3K | 230 | 200 | 160 | 133 | 115 | 19.3 | Y-Y |
| HD3PS-3822-5KW | TB | 380V | 220V | 5K | 280 | 240 | 170 | 133 | 120 | 26 | Y-Y |
| HD3PS-3822-7KW | TB | 380V | 220V | 7K | 280 | 240 | 180 | 133 | 123 | 28.4 | Y-Y |
| HD3PS-3822-10KW | TB | 380V | 220V | 10K | 350 | 280 | 200 | 177 | 130 | 52 | Y-Y |
| HD3PS-3822-15KW | TB | 380V | 220V | 15K | 350 | 300 | 230 | 177 | 155 | 58.2 | Y-Y |
| HD3PS-3822-20KW | TB | 380V | 220V | 20K | 400 | 370 | 320 | 177 | 140 | 81 | Y-Y |
| HD3PS-3822-30KW | TB | 380V | 220V | 30K | 390 | 400 | 320 | 220 | 165 | 97 | Y-Y |
| HD3PS-3822-40KW | TB | 380V | 220V | 40K | 400 | 430 | 320 | 250 | 180 | 138 | Y-Y |
| HD3PS-3822-50KW | TB | 380V | 220V | 50K | 420 | 450 | 330 | 280 | 200 | 154 | Y-Y |
| HD3PS-3822-70KW | TB | 380V | 220V | 70K | 440 | 460 | 330 | 280 | 200 | 172 | Y-Y |
| HD3PS-3822-100KW | TB | 380V | 220V | 100K | 500 | 500 | 350 | 340 | 235 | 236 | Y-Y |
| HD3PS-3822-150KW | TB | 380V | 220V | 150K | 550 | 530 | 400 | 400 | 235 | 337 | Y-Y |
| HD3PS-3822-200KW | TB | 380V | 220V | 200K | 670 | 650 | 450 | 450 | 230 | 425 | Y-Y |
| HD3PS-3822-300KW | TB | 380V | 220V | 300K | 730 | 670 | 480 | 520 | 245 | 560 | Y-Y |
