상세설명

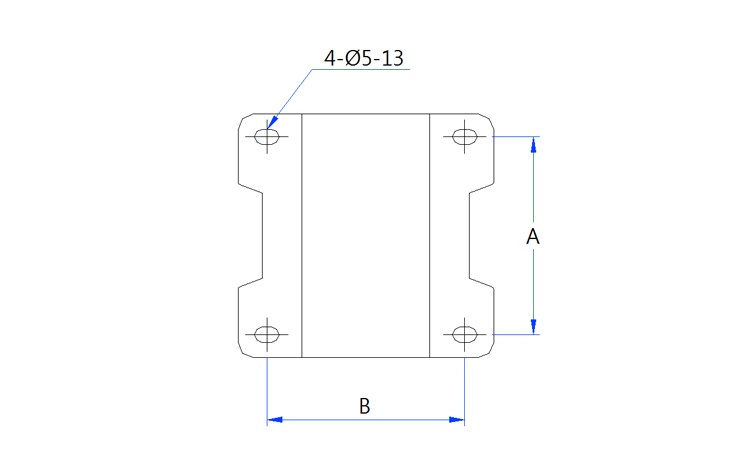

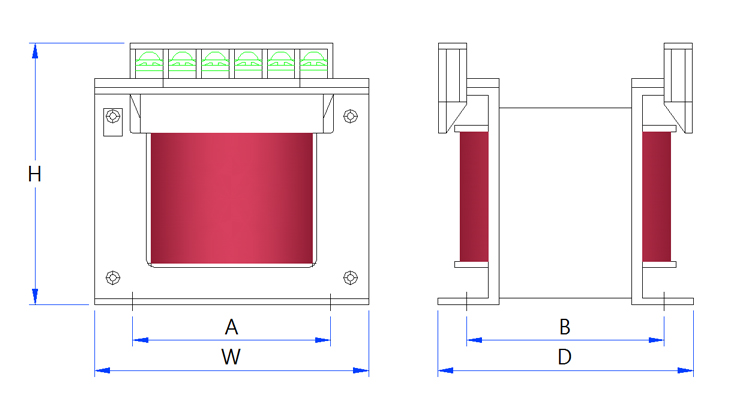

| MODEL NO. | TYPE | 사양(SPECIFICATION) | 외형치수(DIMENSION m/m) | 중량(㎏) | ||||||
| PRI.(V) | SEC.(V) | 용량(VA) | W | H | D | A | B | |||
| HD1PS-4438-80W | TB | 0V-440V | 0V-380V | 80 | 80 | 90 | 73 | 66 | 56 | 1.3 |
| HD1PS-4438-100W | TB | 0V-440V | 0V-380V | 100 | 80 | 90 | 85 | 66 | 68 | 1.48 |
| HD1PS-4438-150W | TB | 0V-440V | 0V-380V | 150 | 90 | 98 | 90 | 73 | 67 | 2.1 |
| HD1PS-4438-200W | TB | 0V-440V | 0V-380V | 200 | 100 | 115 | 85 | 80 | 63 | 2.5 |
| HD1PS-4438-300W | TB | 0V-440V | 0V-380V | 300 | 110 | 125 | 90 | 90 | 65 | 3.3 |
| HD1PS-4438-500W | TB | 0V-440V | 0V-380V | 500 | 120 | 130 | 105 | 102 | 78 | 3.9 |
| HD1PS-4438-700W | TB | 0V-440V | 0V-380V | 700 | 120 | 130 | 117 | 102 | 90 | 4.7 |
| HD1PS-4438-1KW | TB | 0V-440V | 0V-380V | 1K | 140 | 145 | 125 | 120 | 91 | 7.1 |
| HD1PS-4438-1.5KW | TB | 0V-440V | 0V-380V | 1.5K | 160 | 170 | 130 | 137 | 93 | 10.5 |
| HD1PS-4438-2KW | TB | 0V-440V | 0V-380V | 2K | 160 | 170 | 145 | 137 | 103 | 12 |
| HD1PS-4438-3KW | TB | 0V-440V | 0V-380V | 3K | 190 | 185 | 150 | 160 | 100 | 16.3 |
| HD1PS-4438-4KW | TB | 0V-440V | 0V-380V | 4K | 190 | 185 | 180 | 160 | 120 | 20.2 |
| HD1PS-4438-5KW | TB | 0V-440V | 0V-380V | 5K | 225 | 220 | 200 | 190 | 120 | 27 |
| HD1PS-4438-10KW | TB | 0V-440V | 0V-380V | 10K | 250 | 250 | 230 | 205 | 145 | 43 |
| HD1PS-4438-15KW | TB | 0V-440V | 0V-380V | 15K | 280 | 285 | 260 | 234 | 150 | 56 |
| HD1PS-4438-20KW | TB | 0V-440V | 0V-380V | 20K | 320 | 285 | 290 | 270 | 155 | 72 |
| HD1PS-4438-30KW | TB | 0V-440V | 0V-380V | 30K | 320 | 450 | 330 | 200 | 190 | 103 |
| HD1PS-4438-40KW | TB | 0V-440V | 0V-380V | 40K | 330 | 450 | 350 | 200 | 190 | 119 |
| HD1PS-4438-50KW | TB | 0V-440V | 0V-380V | 50K | 330 | 460 | 360 | 220 | 215 | 132 |
| HD1PS-4438-60KW | TB | 0V-440V | 0V-380V | 60K | 340 | 480 | 350 | 220 | 215 | 148 |
| HD1PS-4438-80KW | TB | 0V-440V | 0V-380V | 80K | 350 | 480 | 350 | 240 | 215 | 203 |
| HD1PS-4438-100KW | TB | 0V-440V | 0V-380V | 100K | 390 | 510 | 400 | 280 | 230 | 238 |
| HD1PS-4438-150KW | TB | 0V-440V | 0V-380V | 150K | 430 | 530 | 400 | 310 | 240 | 280 |
| HD1PS-4438-200KW | TB | 0V-440V | 0V-380V | 200K | 530 | 540 | 450 | 390 | 240 | 350 |
