| MODEL | DD80 | ||||||||||||||
| F012030 | F012040 | F012060 | F024025 | F024040 | F024060 | F090030 | F090040 | F090060 | F180030 | F180040 | F180060 | ||||
|
Rated Voltage |
V | 12 | 24 | 90 | 180 | ||||||||||
|
Rated Output |
W | 30 | 40 | 60 | 25 | 40 | 60 | 30 | 40 | 60 | 30 | 40 | 60 | ||
|
Rated Current |
A | 3.5 | 4.7 | 7.0 | 1.5 | 2.3 | 3.5 | 0.5 | 0.6 | 0.9 | 0.2 | 0.3 | 0.5 | ||
|
Rated Speed |
r/min | 3000 | |||||||||||||
|
Rated Torque |
kgf-cm | 1.0 | 1.3 | 1.9 | 1.0 | 1.3 | 1.9 | 1.0 | 1.3 | 1.9 | 1.0 | 1.3 | 1.9 | ||
|
Weight |
kg | 1.4 | 1.5 | 1.9 | 1.4 | 1.5 | 1.9 | 1.4 | 1.5 | 1.9 | 1.4 | 1.5 | 1.9 | ||

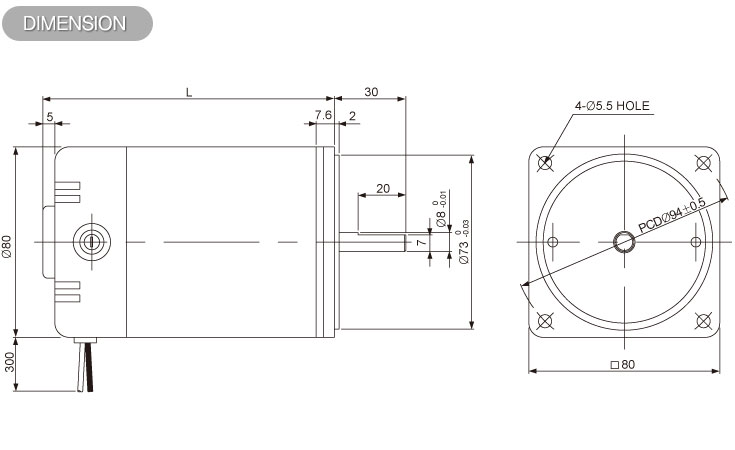

| L | MODEL |
|
122.1 |
F012030 / F012040 / F024025 / F024040 / F090030 / F090040 / F180030 / F180040 |
|
139.6 |
F012060 / F024060 / F090060 / F180060 |
