| MODEL | DG60 | |||||||||||||
| F012015 | F012030 | F024015 | F024030 | F024050 | F090015 | F090030 | F090050 | F180015 | F180030 | F180050 | ||||
|
Rated Voltage |
V | 12 | 24 | 90 | 180 | |||||||||
|
Rated Output |
W | 15 | 30 | 15 | 30 | 50 | 15 | 30 | 50 | 15 | 30 | 50 | ||
|
Rated Current |
A | 1.8 | 3.5 | 0.9 | 1.8 | 3.0 | 0.2 | 0.5 | 0.8 | 0.1 | 0.2 | 0.4 | ||
|
Rated Speed |
r/min | 15~1000 | ||||||||||||
|
Rated Torque |
kgf-cm | 1.2~30 | 2.4~30 | 1.2~30 | 2.4~30 | 3.9~30 | 1.2~30 | 2.4~30 | 3.9~30 | 1.5~30 | 2.4~30 | 3.9~30 | ||
|
Weight |
kg | 1.1 | 1.5 | 1.0 | 1.3 | 1.5 | 1.0 | 1.3 | 1.5 | 1.0 | 1.3 | 1.5 | ||

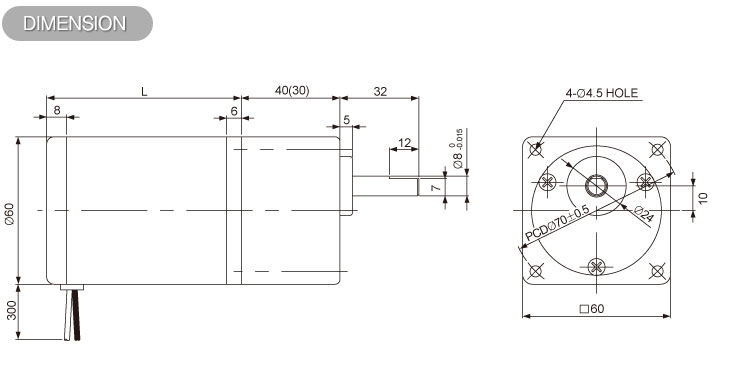

| L | MODEL |
|
79 |
F024015 / F090015 |
|
89 |
F012015 / F090030 / F180015 |
|
99 |
F024030 / F180030 |
|
109 |
F012030 / F024050 / F090050 / F180050 |
