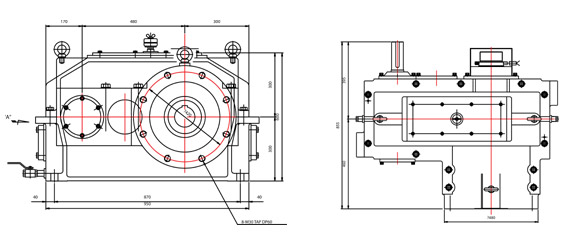

GEAR SPECIFICATION
|
|||||
|
DRIVEN MOTOR
|
110Kw * 1750 RPM | ||||
|
OUTPUT SHAFT SPEED
|
110 RPM | ||||
|
REDUCTION RATIO
|
1 / 10.605 | ||||
|
LUBRICANT
|
ISO VG 220 | ||||
|
WEIGHT
|
|||||
|
NAME
|
STEP
|
1 STEP GEAR
|
2 STEP GEAR
|
||
|
PART
|
PINION
|
GEAR
|
PINION
|
GEAR
|
|
|
MODULE
|
4.5`
|
6.5
|
|||
|
NO DF TEETH
|
19
|
65
|
20
|
62
|
|
|
RATIO
|
1 / 3.421
|
1 / 3.1
|
|||
|
RPESSURE ANGLE
|
20 °
|
20 °
|
|||
|
HELIX ANGLE
|
(R) 15 ° (L)
|
(R) 12° (L)
|
|||
|
STANDARD P.C.D
|
88.516
|
302.82
|
132.9
|
412
|
|
|
WIDTH OF TEETH
|
110
|
90
|
125
|
120
|
|
|
HARDNESS OF TEETH
|
HRc60±2
|
HRc58±2
|
HRc60±2
|
HRc58±2
|
|
|
MATERIAL
|
SNCM21
|
||||
|
HEAT TREATMENT
|
CARBURIZING
|
||||
|
GRADE
|
JIS 2
|
||||
