| Specifications | ||||
|---|---|---|---|---|
|
*1 Excluding interpolation box and connector *2 When using the Bellows Set (optional accessory) *3 Excluding cable section and interpolation box Magnescale reserves the right to change product specifications without prior notice. |
||||

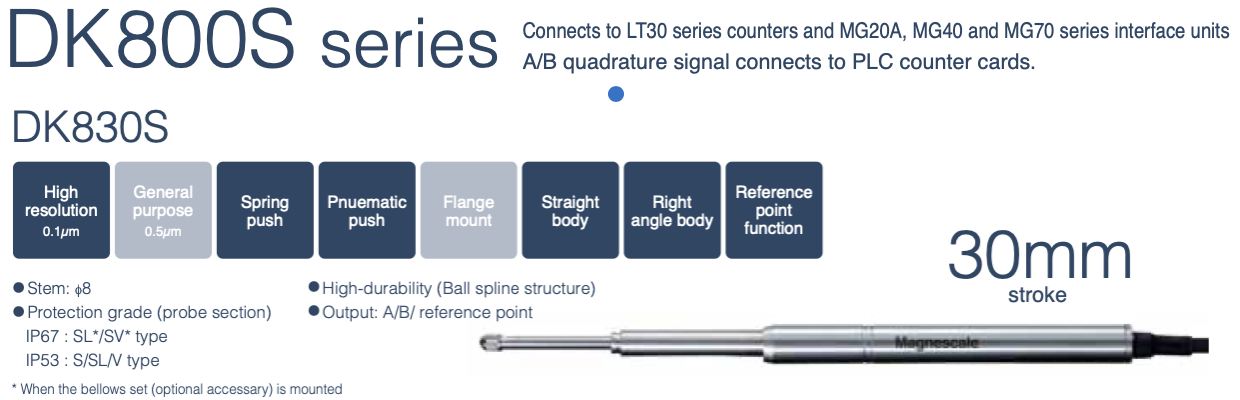

| Model | DK830SR | DK830SLR | DK830SVR | |
| Measuring range | 30 mm | |||
| Maximum resolution | 0.1 µm | |||
| Accuracy (at 20 °C) |
1.3 µm p-p | 1.7 µm p-p | ||
| Measuring force (at 20 °C) |
|
|
||
| Operating temperature | 0 to +50 °C (no condensation) | |||
| Storage temperature | -20 to +60 °C (90 %RH or less) | |||
| Maximum response speed | 80 m/min | |||
| Reference point response speed | 80 m/min | |||
| Spindle driving | Spring push | Pneumatic push | ||
| Reference point | at 1 mm ±0.5 mm position of spindle movement | |||
| Protection grade *1 | IP53 | IP53/IP67 *2 | ||
| Vibration resistance | 100 m/s2 (20 to 2,000 Hz) | |||
| Impact resistance | 1,000 m/s2 (11 ms) | |||
| Stem diameter | Φ8 mm | |||
| Feeler | Carbide ball tip, mounting screw M2.5 | |||
| Power supply | DC 5 V ±5 % | |||
| Power consumption | 1 W | |||
| Mass *3 | Approx. 70 g | Approx. 80 g | ||
| Output | A/B/reference point, voltage-differential line driver output (conforming to EIA-422) | |||
| Output cable length | 2.5 m | |||
| Accessories | Spanner, instruction manual, supplement, +P M4 x 5 screws (2pc) | |||
