중국 신품 CO2 LASER 컷팅 조각기 문의 덕주코리아

문의 010 2845 4417

문의 시 바로 바로 견적제공합니다

CO2 레이져 컷팅기 최신형 (금속/비금속 겸용)도 있음

기타 각종 레이져가공기

(레이져 용접기 포함)

CNC 라우터 조각기

문의 덕주코리아 전화 02 2068 3312 손전화 010 2845 4417 메일문의 sksea99@daum.net

문의 사항 : 선반과딮홀기 기계문의및 A/S 관련 부품 조달문의 ( 대형선반척/특수척/선반 특별부품 문의 포함)

*전용기제작용 선반과딮홀기 베드 염가공급

C6266B CLUTCH TYPE LATHE CJM250 performance 26mm spindle bore mini metal bench lathe with 125mm 3-jaw chuck Mill Drill Lathe G1324 multi-purpose lathe machine CQB9111 DIY0820 8inch X 20inch Gear Head Metal Lathe With Stand for hobby users

중국 디프홀 가공기의 모든 것 (보오링기/드릴링기/SRB/BTA/GUNDRILL/6축/호닝/실린더정밀 가공복합기 등)

덕주코리아 중국 공작기계/산업기계 원스톱 솔류션 프로바이더

주요취급기종

중국 덕주 기상창www.dzjc.com 선반과디프홀 가공기 전반

중국 웨이다 기상창www.weida-mc.com 밀링기/머시닝센타/레디얼 포함

대만 써니 평면연마기www.sunnyfreeport.com 모든 평면연마기 일체

중국 평면연마기www.whfengrun.com 중국 평면연마기 선도업체

중국 원통연마기www.smtw.com 중국 상해 연마기 일체

중국 로타리연마기www.lgmoc.com 로타리연마기 전 기종

중국 칼날연마기www.bstsk.com 칼날연마기 취급전문

중국 공구연마기 (미국 엔드밀 에어베아링식 OEM 모델)

중국 와이어컷www.teruimachine.com 와이어컷 경제형/고급형

중국 레이져 가공기(파이버/CO2) 레이져 용접기(수냉식/공냉식)

중국 라우터기/패턴기/각종 조각기일체

* 각종 대형플랜트/대형선박/군정비실 공무복합장비 취급전문

(세이퍼/스롯터/절곡기/보루방/아크용접기/벤치연마기/컷터기/초소형 탁상형마기 총 망라)

중국 밀링기의 모든 것 웨이다 기상창 www.weida-mc.com (레디얼 드릴링기/엎라이트 포함)

중국 연마기의 모든 것(칼날:평날/원형날, 평면/원통/공구/로타리등)

와이어컷 취급전문 (완벽한 시운전/사후관리)

각 종 레이져 가공기/라우터/패턴기/조각기 일체

1.Fiber laser marker

2.cnc router for woodworking metal foam carving cut:3aixs/4aixs/5aixs/multi heads, customized style and size.

3.Fiber laser cutter for metal plate and pipe cut: 1kw-12kw option

4.Fiber laser rust remover/welding3 in 1 machine rust remover/welding/cut combined/ 100w/200w/300w/1000w/1500w/2000w

5.CO2 Laser machine for metal and non-metal cut and engrave 80w 100w 150w 180w 300w 500w 600

6. metal milling machine

7. Vibrating/Pneumatic knife cutter

DAESANG MACHINE DEZHOU KOREA CORP. TEL:82-2-2068-3312

M:010-2845-4417 E-MAIL :sksea99@daum.net

CHINA DEZHOU PRECION www.dzjc.com GRINDER www.sunnyfreeport.com

Products Description

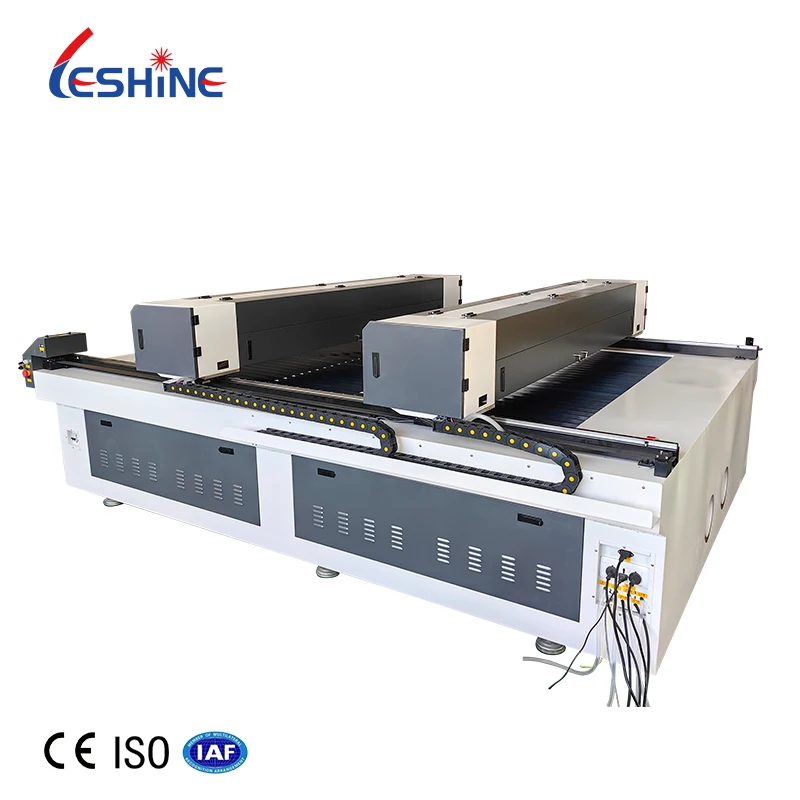

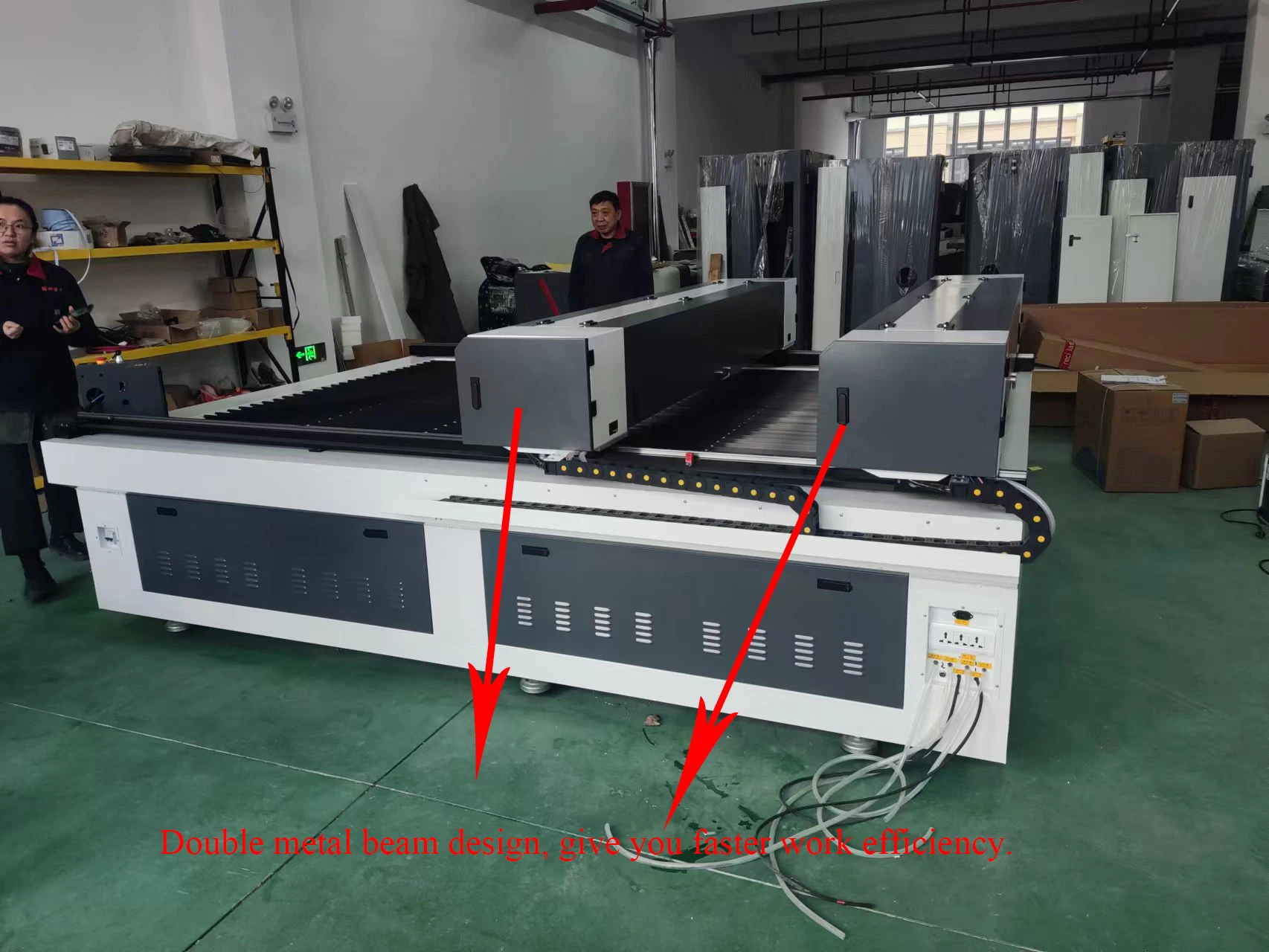

Double Beam Laser Head 1300x2500mm Co2 Laser Cutting Machine

Applicable materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,towers, glass and other nonmetal materials.

Applicable industries:
advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping,jeans, packaging and paper industry.

Main Features
1.-Optimization of mechanical and electrical design, processing speed can be up to 200mm/s;
2.-Configured high power laser tube,can cut Acrylic of 20mm thickness in one step;
3.-With multi-function,FPGA controlling system can effectively engrave on plane,gradient engraving by 360,cutting and drilling holes,etc.Support output of USB flash disk and work off-line of the computer;
4.-Restoring from power-off,continuation on break point;
5.-Transmit files directly in CorelDraw,AutoCAD etc;
6.-Configured laser lens from America,can ensure the cutting effect perfect;
7.-Adopt international advanced linear rail for X.Y axis,more precision;
8.-Standard configuration of chilling machine.

Product configuration

Sample

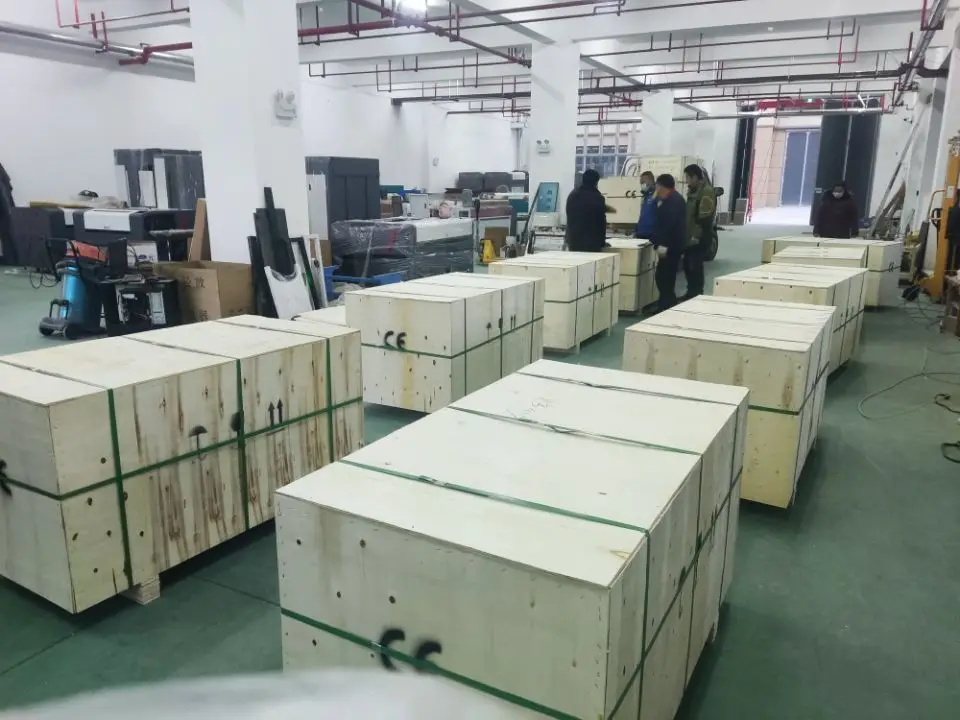

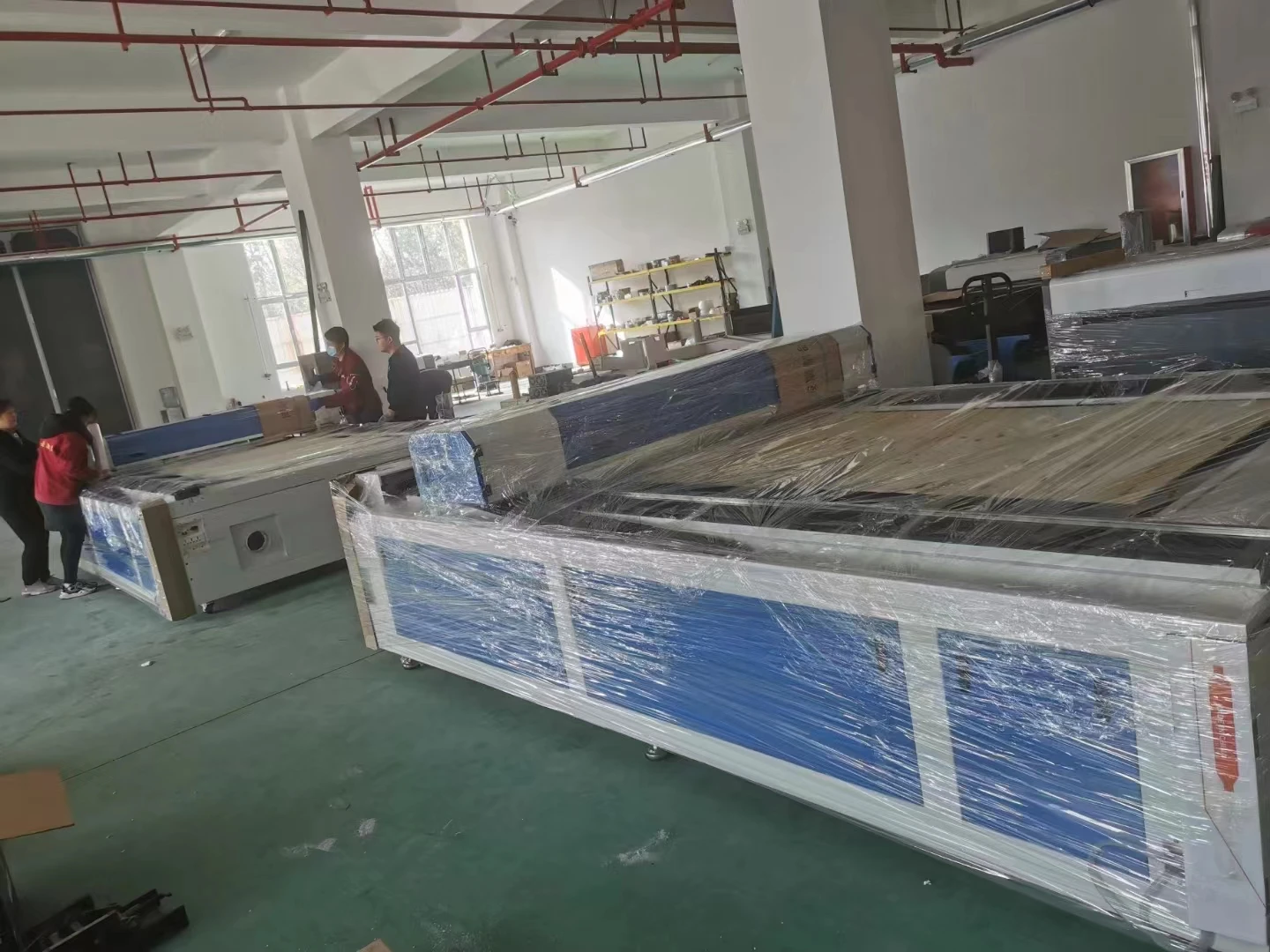

Machine packing

Machine will packed in plywood box

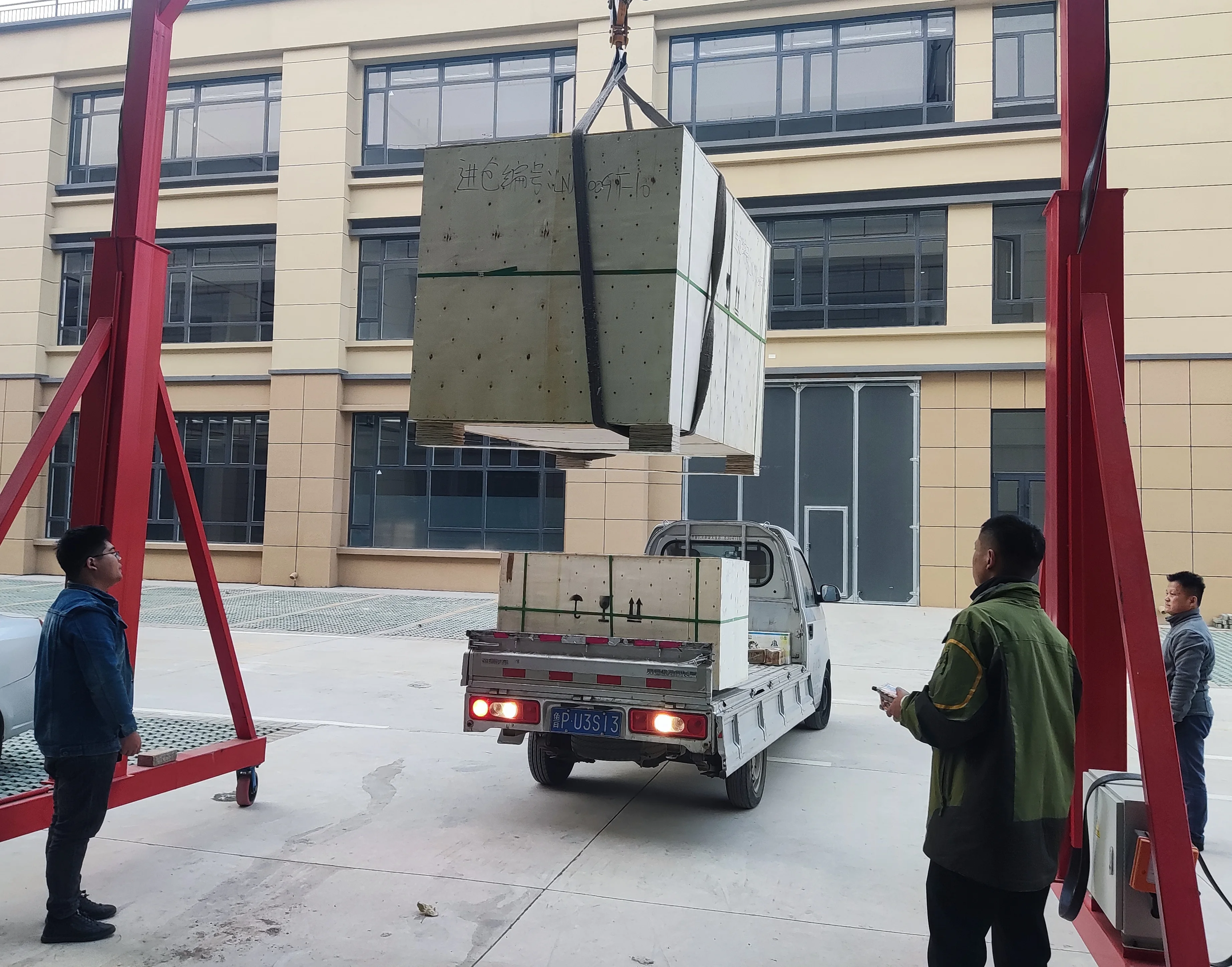

Packing & Delivery

1. Outside package: Standard marine export plywood case.

2. Inner package: Stretchy film and plastic film for humidity. widely used in processing industries of lager-scale cutting and
engraving.

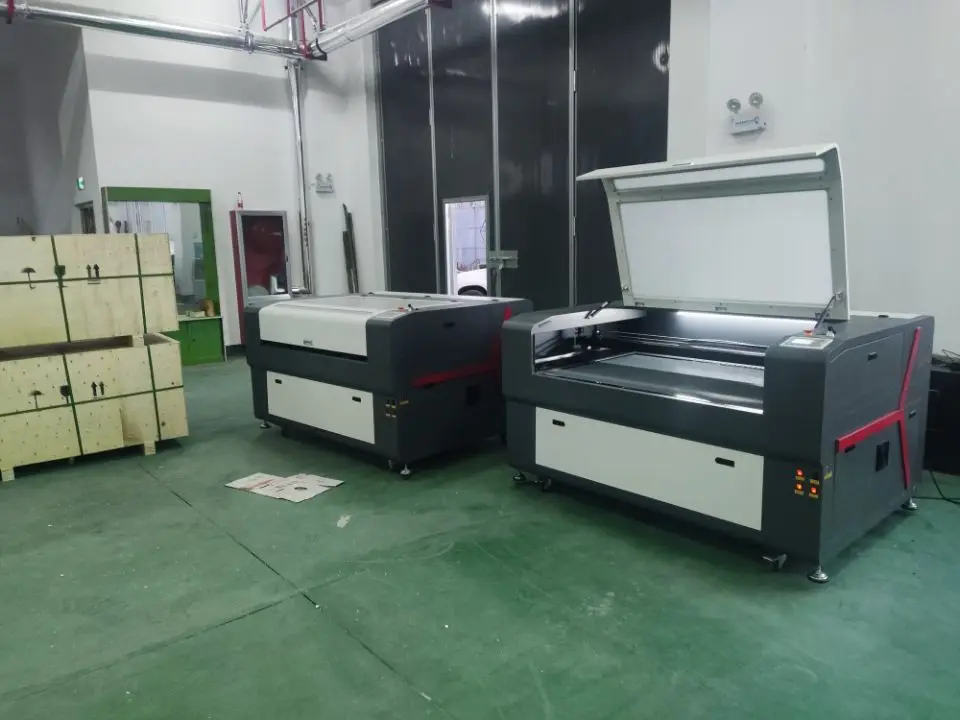

CO2 LASER ENGRAVING CUTTING MACHINE

Machine Features ★Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by compressed air;
★High-performance,imported the original fiber laser source, with stable performance and the lifespan is over 100,000 hours;
★High speed and efficiency, the speed of cutting metal sheets close to 20m/min;
★The cutting edge looks perfect without burrs;
★Imported Japanese servo motor with high cutting accuracy;
★Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation. CO2 2030 CNC Co2 Laser Cutting Machine 100w Acrylic Laser Cutting Machines Price

MODEL NO.	UTE1325	UTE1530	UTE2030
Work Size	1300*2500mm	1500*3000mm	2000*3000mm
Laser Output Power	80W/100W/130W/150W/300W
Locating Accuracy	≤ 0.01 mm
Engraving Speed	0-20000mm/min
Min.Engraving Size English Letter	1.0mm * 1.0mm
Cooling Type	Water Cooling
Control System	RDCAM / DSP Control System
Highest Scanning Precision	250ODPI

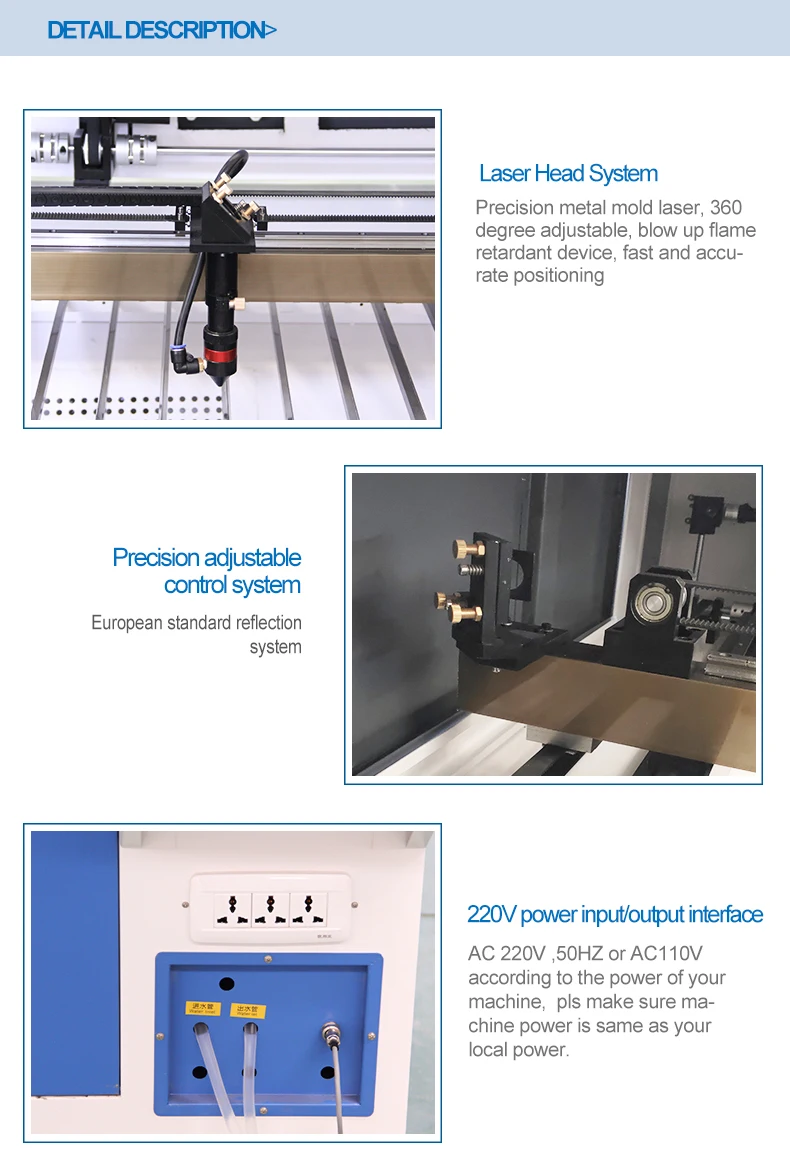

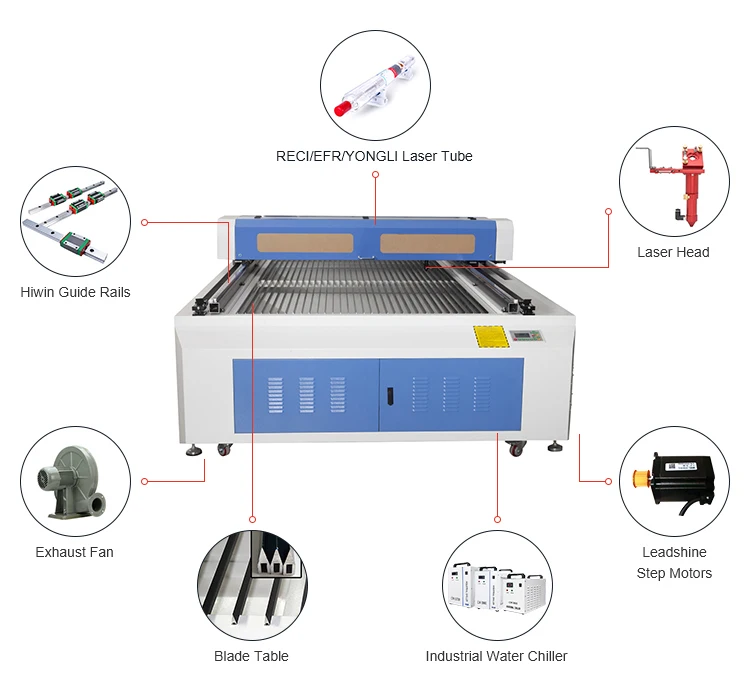

Laser Head

Closed new design, effectively protecting the lenses from dust; High transparency and fine carving; Additional red light positioning with air blowing function.

RD Controller

The product adopts three-phase Leisai motor, which has strong power and accurate rotation. Provide better and more accurate power guarantee for the whole machine processing.

Belt Transmisson

The high quality belt transmisson, wear resi-stance, good stability, compact structure and low noise, high speed and precision, high load capacity and rigidity.

Hiwin Guide Rail

Adopting high-quality linear guide rails to ensure the quality and accuracy of the machine, with good stability, long service life, low noise, and high accuracy.

Laser Tube

High quality C02 laser tube, enclosed carbon dioxide laser tube, long service life, stable power, complete specifications, quality assurance, professional after-sales service.

Leadshine Step Motor

The product adopts a three-phase Leisai motor, which has strong power and precise rotation. Provide better and more accurate power guarantee for the entire machine processing.

Our Advantages

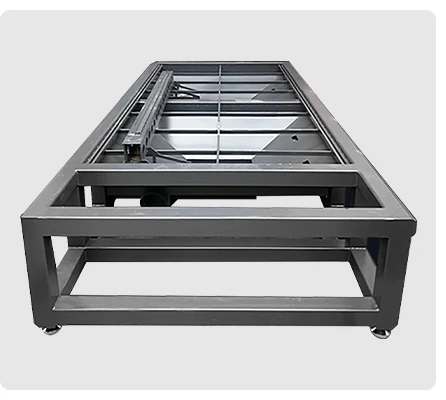

Heavy machine bed

The machine is welded with metal 100mm square tubes and the bed has alongitudina main beam of square tubes to ensure a longer service life and higher cutting accuracy.

Precision craftsmanship

The CNC centre's precision process table support eliminates the need to manually adjust the position of the toolholder.The tool holders are

polished with high precision to ensure that the deviation in working accuracy is within 1%.

Industrial Drive Systems

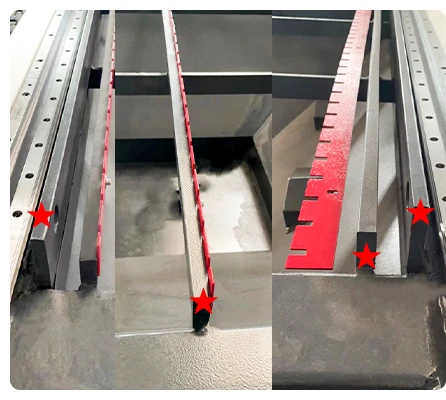

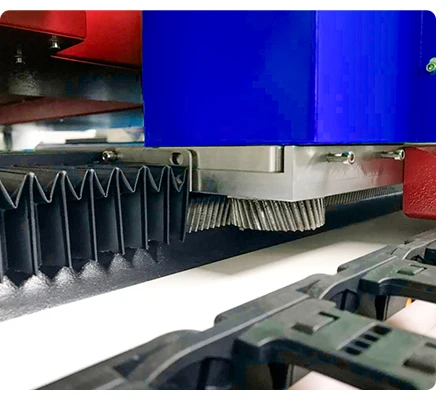

Innovative application of the double drive rack and pinion Industrial drive system with gear box guideway.Therack and pinion drive construction allows for a large load carrying capacity of the machine.It also enables transmission speeds of up to 2 m/S and transmission accuracy of 0.1 mm.

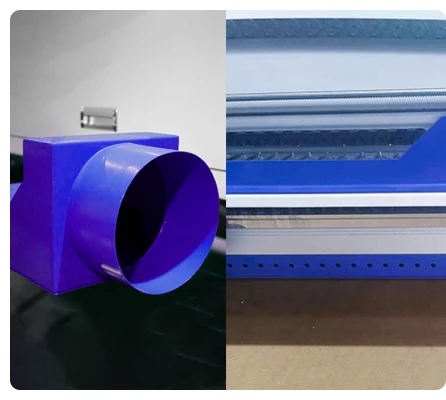

Patented smoke extraction system

Patented follow-up smoke extraction system and reaction smoke extractior system. The system's barrier design and U-shape allows 95% of the smoke to be exhausted,protecting the environment and the human body.

Details Images

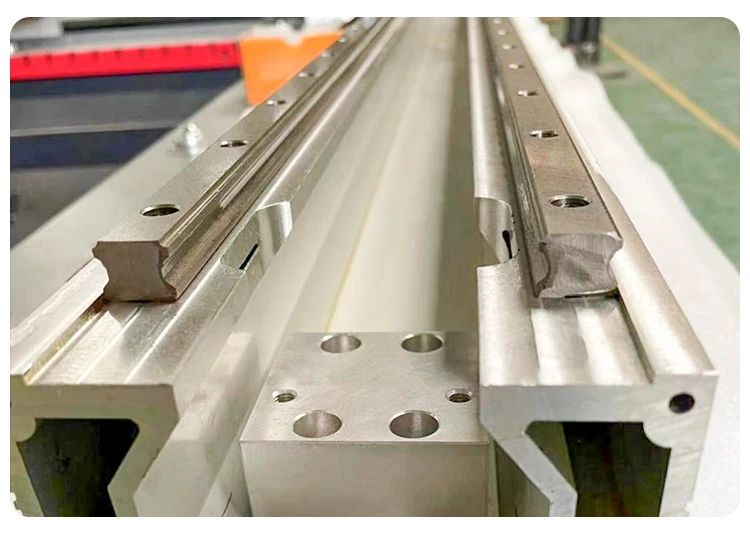

industrial aerospace extruded aluminium beams are characterised by their low density toughness and corrosion resistance, allowing machines to run faster.

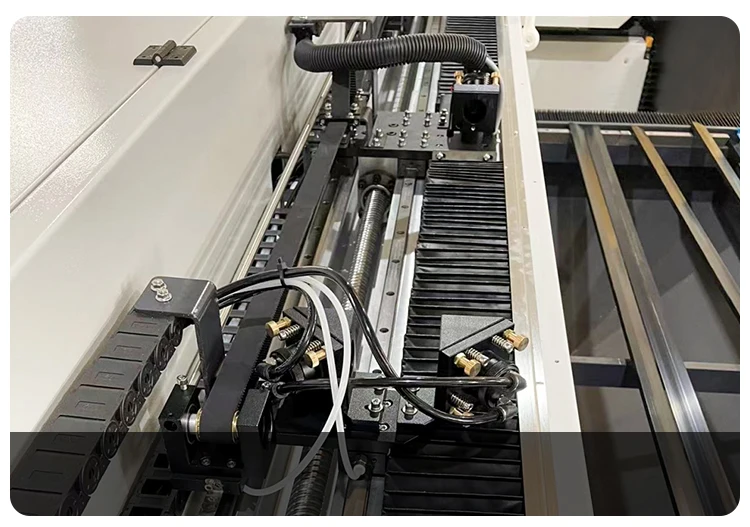

X-axis with high precision ball screw construction. The double guide rails and servo motor drive system make the drive more efficient. The long service life of the screw due to low friction also reduces later maintenance.

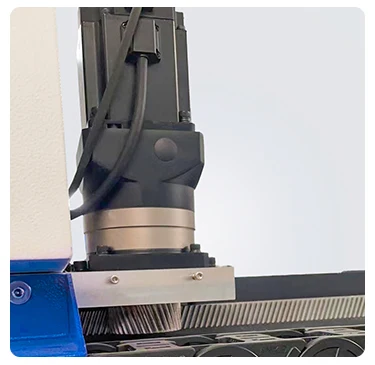

Servo motors give the machine greater

speed and precision.

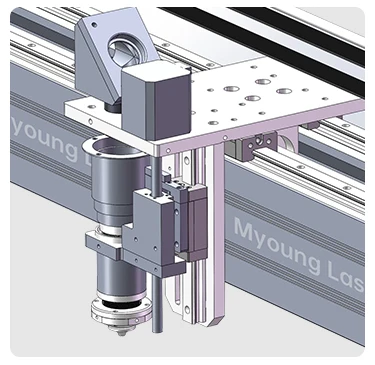

The auto-focus cutting head makes operation even easier.

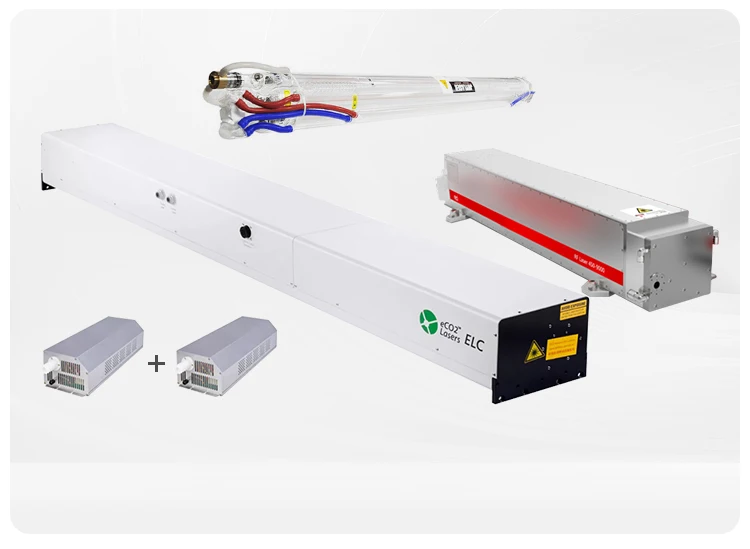

High quality and stable laser tube. We offer 150W/280W/300W/400W laser power to meet your different thickness material cutting.RECI/YongLi/Joy Laser/ECO2 etc brand lasers are available.
