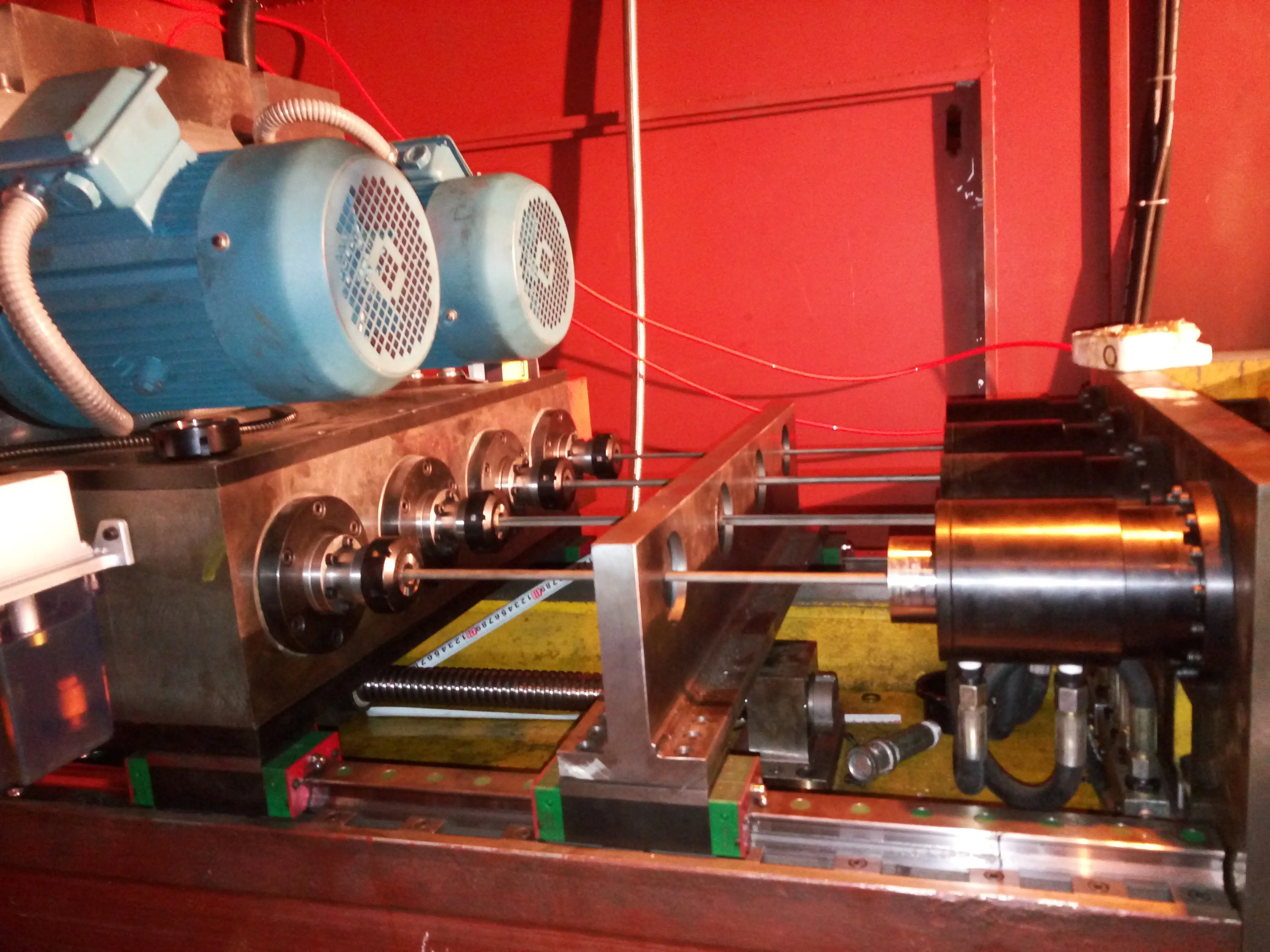

The CNC eight-axis deep hole gun drilling machine is mainly used for the processing of the ball guide hole of the linear guide slider, and it can also be used for the simultaneous processing of multi-holes of professional parts.
More pictures:
Product Parameters
Project Name
Parameters
Working range
Drilling diameter range
Φ4-Φ30mm
Drilling depth (XA axis)
200mm
Stroke of lifting slide (Z axis)
60mm
Table size (Y*X)
260*1090mm
Maximum travel of table (Y axis)
860mm
Maximum worktable load
200Kg
Machining precision
Aperture accuracy
H8-H11
Cylindricity of holes
≤0.03/500mm
Hole straightness
≤0.05/100mm
Hole surface roughness
Ra≤3.2um
Orifice position
≤0.03/500mm
Deviation of hole axis from datum
≤0.05/100mm
Running speed
Y axis feed speed range
0-500mm/min
Fast moving speed of Y axis
3000mm/min
X, Z axis fast moving speed
2000mm/min
Feed motor torque (X, Y, Z)
10Nm,10Nm,25Nm
Speed range of drill box
400-4000r/min
Cooling systerm
Cooling system pressure range
0-10MPa
Cooling system flow range
0-100L/min
Coolant filtration accuracy
30um
Coolant tank maximum volume
3000L
Machine tool power
Motor power of drill pipe box
4KW*4
Oil pump motor power
11KW
Feed servo motor power
1.5KW
Motor power of oil cooling system
0.75KW
Total machine power
50KW
Machine Fetures
1. The CNC system and deep hole machining are perfectly combined to realize the simultaneous processing of eight axes, which is equivalent to the processing efficiency of eight single-axis deep hole drilling machines.
2. Optional CNC rotary table for four-axis four-link machining
3. The workpiece has high machining accuracy, the tolerance of parallelism and position of deep holes is within 0.015 (135mm), and the surface roughness can reach Ra0.8-1.2
