Product details
Company Profile\Company Profile
Product details
coolant system, milling chuck, worling lamp, parallel vise QH160mm,
oil tray, wrench, reduction sleeve ,
horizontal milling bar
drill chuck, draw bar
3-axis DRO58 pcs clamping kit
Dividing head
Rotary table
Spindle protection
CE Electrical part
universal metal milling vertical and horizontal taiwan turret milling machine price with DRO
| Specification | Unit | X6325W | X6330W | X6333W |
| Table size | mm | 1370*254 | 1370*305 | 1500*300 |
| T slot | 3/16/65 | 3/16/65 | 3/18/85 | |
| Longitudinal travel | mm | 750 | 800 | 1000 |
| Cross travel | mm | 380 | 380 | 350 |
| Vertical travel | mm | 360 | 360 | 360 |
| Spinedle and ram distance | mm | 210 | 210 | 300 |
| Spindle and table distance | mm | 0-400 | 0-380 | 0-360 |
| Arm travel | mm | 400 | 400 | 500 |
| Milling head tilting | degree | 90(left right) 45(front back) | 90(left right) 45(front back) | 90(left right) 45(front back) |
| Spindle taper | R8(V);NT40(H) | R8(V);NT80(H) | NT40(V.), NT40(H.) | |
| Spindle speed | r/min | 66-4540(V)/16steps; 40-1300(H)/12steps | 66-4540(V)/16steps; 40-1300(H)/12steps | 66-4540(V)/16steps; 40-1300(H)/12steps |
| Spindle motor power | kw | 2.2(V);3(H) | 2.2(V);3(H) | 3.75(V.), 3(H) |
| Overall size | mm | 1700x1600x2250 | 1700x1600x2250 | 2400x1700x2350 |
| Net weight | kg | 1380 | 1450 | 1980 |
Standard accessories
milling chuck
drilling chuck

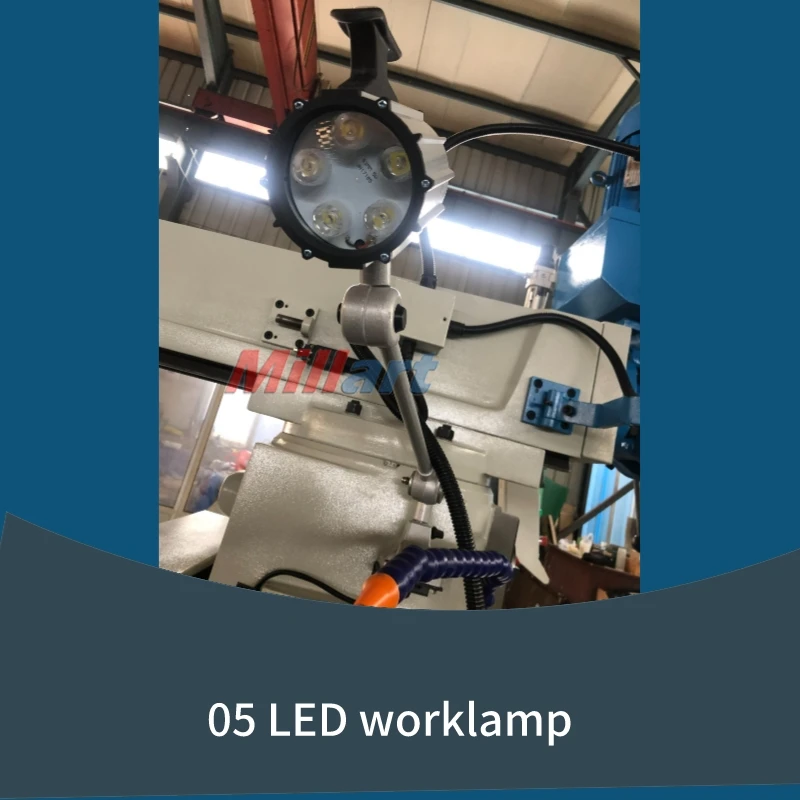

work light
reduction sleeve
machine vice
tools and tool box
draw bar
coolant system
Optional accessories:
3 axis DRO
dividing head
clamping kits
X,Y power feed
rotary table
Features:
1. Flexible, multi-function of milling, drilling and tapping .
2. Easy to operate, convenient maintenance
3. High speed milling head , high precision, swivel 90°, flexible processing.
4. Cast iron after artificial aging treatment,high precision,long service life
5. Hardening treatment.
6. Equipped with manual lubricating device, the lubrication on the lead screw and guideway
7. X, Y, Z-axis auto-feeding.
Specifications:
SPECIFICATION//CODE NO. | UNIT | ZX6332Z |
Table size | MM | 1370x320 |
T slot no./width/distance |
| 3/14/70 |
Table loading capacity | kg | 400 |
Table Longitudinal travel | mm | 1000 |
Table Cross travel | mm | 380 |
Table Vertical travel | mm | 440 |
Spindle taper |
| ISO40 (V/H) |
Spindle sleeve stroke | mm | 120 |
Spindle speed /step -- Vertical | rpm | 90-2000/8 steps |
-- Horizontal | rpm | 40-1300/12steps |
Vertical spindle axis to column surface | mm | 200-800 |
Vertical spindle nose to table surface | mm | 200-640 |
Horizontal spindle axis to table surface | mm | 0-440 |
Horizontal spindle axis to arm bottom | mm | 200 |
Ram travel | mm | 600 |
Longitudinal feed rate | mm/min | 22-555/8steps |
Longitudinal rapid moving | mm/min | 760 |
Cross feed rate | mm/min | 22-555/8steps |
Cross rapid moving | mm/min | 760 |
Vertical feed rate | mm/min | 7-150/8steps |
Rapid Traverse vertical | mm/min | 210 |
Main motor | kw | 2.2(V) 3.0(H) |
Feed motor | kw | 1.1 |
Coolant motor | kw | 0.04 |
Packing dimensions | mm | 1400x1600x2250 |
Net/Gross weight | kg | 1850/1950 |
Standard accessories:
Drill chuck |
Reduction sleeve |
Draw bar |

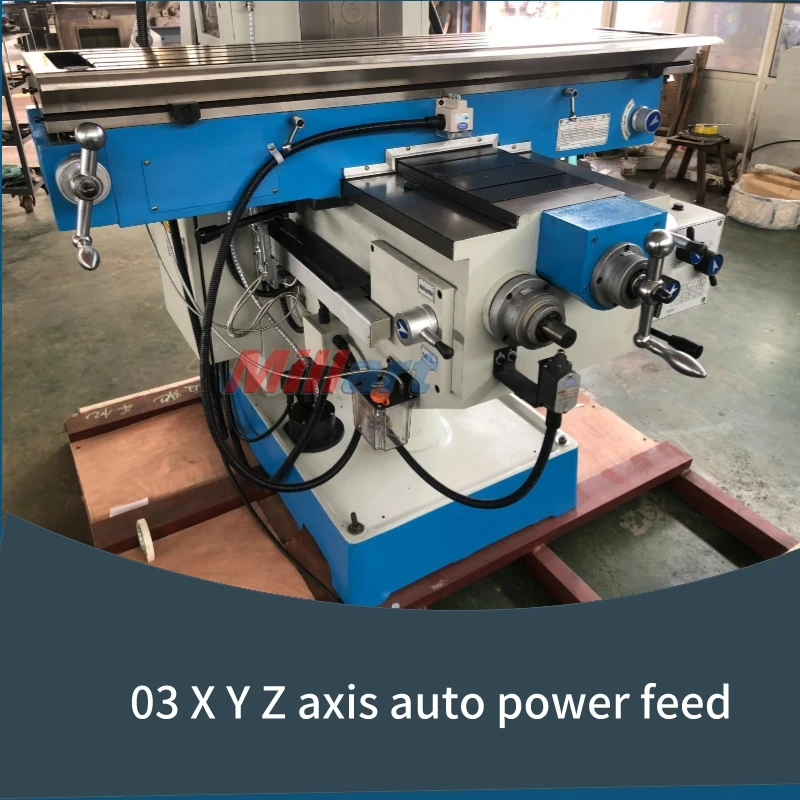

X,Y,Z axis auto power feed |
Mill arbors |
Collet chuck kits |

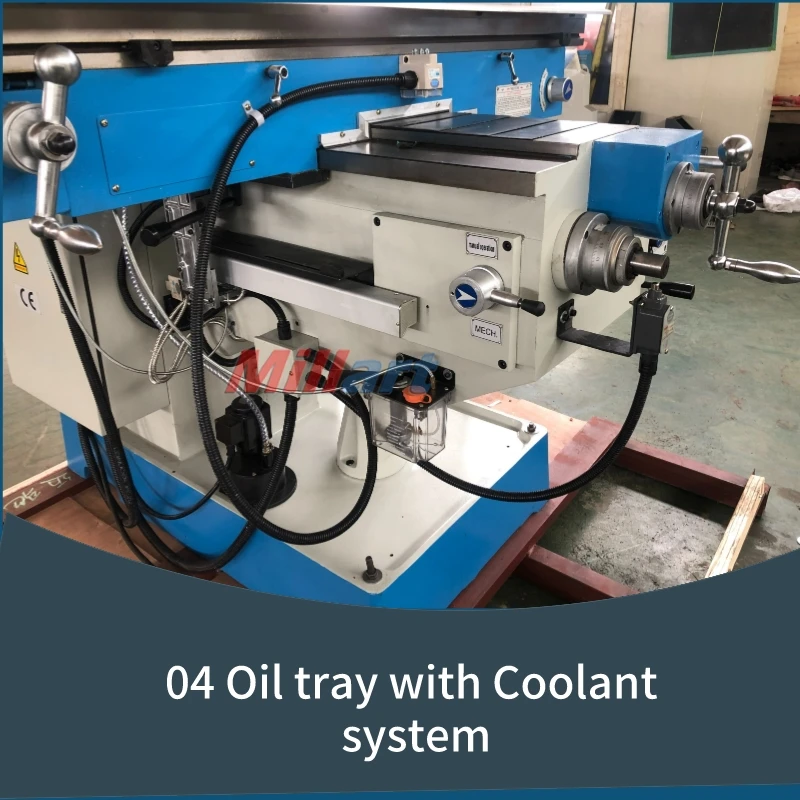

Coolant system |
Chip tray |
Work lamp |
Tools and box |
Optional accessories:

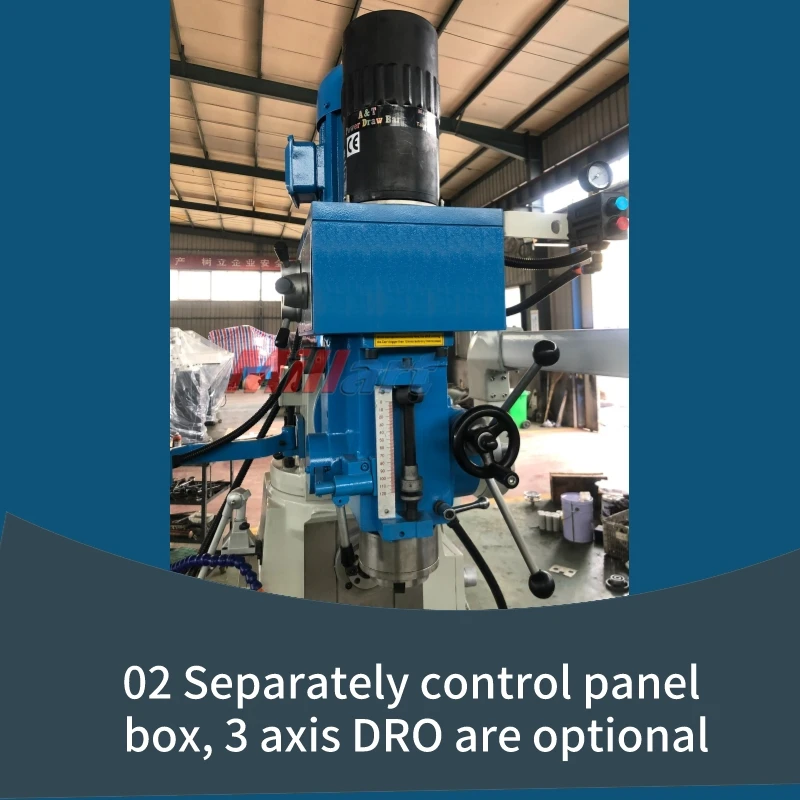

3 axis DRO |
Air draw bar |
58 pcs Clamping kits |
Spindle protection |
Worktable protection |
Rotary table HV10 |
Dividing head F11-160A |
Machine vice 160mm |
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after
fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
5.Many parts of the machine tools have been applied for patent
Application：

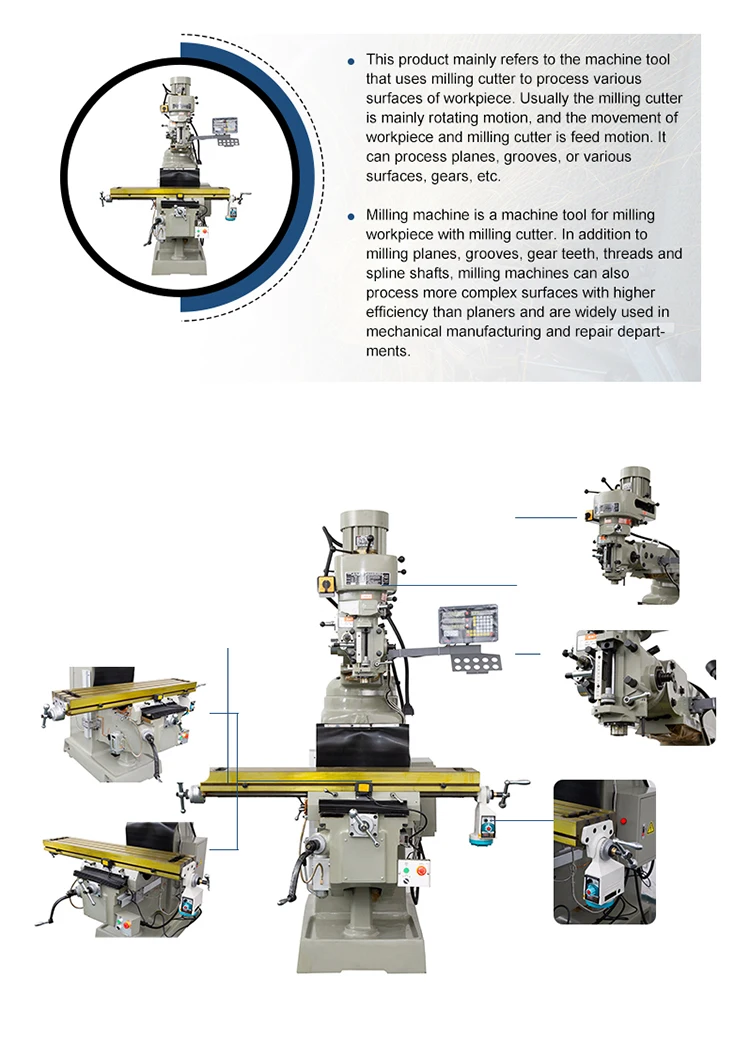

The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline,
etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Product main technical parameters:
중국 밀링기분야 최대 최고 선도기업 웨이다기상창
문의 010 2845 4417 바로 바로 상세견적 제공합니다
범용밀링기부터 초대형 문형머시닝까지
specifications | units | x6328b | ||
table size | mm | 1120*260 | ||
max.load of table | kg | 250 | ||
Table Travel (X) | mm | 600 | ||
Table Travel (Y) | mm | 270 | ||
Table Travel (Z) | mm | 300 | ||
spindle speed range | rpm | 65-4510 | ||
spindle travel | mm | 127 | ||
spindle motor power | kw | 2.2 | ||
overall dimention | mm | 1710*1480*2330 | ||
machine weight | kg | 1350 | ||

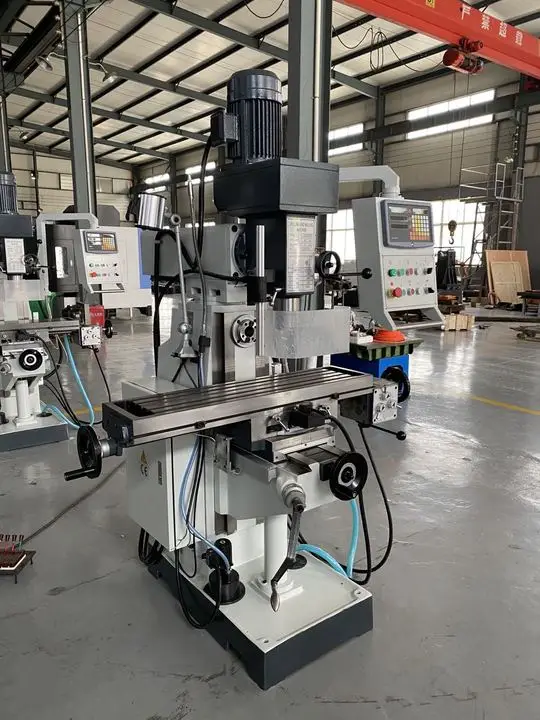

- XZ6326B WEIDA small vertical universal drilling milling machineProduct Description
Specification1.XZ6326 WEIDA small vertical universal drilling milling machine is a kind of drilling and milling machine. It has widely application. It can milling, drilling, reaming,tapping etc.
2.The machine is with X gear box.The head can swivel /-45 degrees. The ram can move forward and backward, and also can swivel 180 degrees.
3.XZ6326 is conventional small mill drill machine, and the operation is easy for operator to perform.
unit specification XZ6326 TABLE : Table size mm 1120X260 T slot no./width/distance no 5/14/50 Max. load of Table kg 200 machining range : table Longitudinal travel(manual/auto) mm 600 table Cross travel (manual) mm 300 table Vertical travel(manual) mm 380 MAIN SPINDLE : Spindle taper ISO40 spindle speed /step -- Vertical rpm 67-2010/12steps --Horizontal rpm 40-1300/12steps Max.drilling dia. mm 30 Max.end milling width mm 125 Max. vertical milling Dia. mm 25 Max.tapping dia. mm M16 quill travel mm 120 swivel angle of headstock degree ±45º vertical spindle axis to column surface mm 220-760 vertical spindle nose to table surface mm 115-430 horizontal spindle axis to table surface mm 0-380 horizontal spindle axis to ram bottom mm 175 ram travel mm 520 FEEDS : Longitudinal feed mm / min 24-720/8steps Longitudinal rapid speed mm / min 1040(X) automatic spindle feed 0.1/0.15/0.3 POWER main motor kw 1.5/2.2(V),2.2(H) feed motor kw 0.37(X) coolant motor kw 0.04 others package dimension cm 160X152X222 1pc/case 220X152X222 2pcs/case overall dimension cm 158X145X215 N/W,G/W kg 1350/1500 Detailed Images
XZ6326 WEIDA small vertical universal drilling milling machineis light duty universal machine tools. It's suitable for drilling, milling and tapping metals and some other materials which are easy to be processed.
This model is only auto feed on X axis. We can supply it with X,Y auto feed, too. It's equipped with working lamp,cooling, lubrication.Its milling head can swivel /-45 degrees. You can equip different optional accessories according to your inquiry.
Quality inspection
We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal
machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine,
Shanghai C N C gantry guide rail grinding machine, Beijing C N C gantry type boring milling machine and automatic
powder coating line .Besides, C N C machine tool project laboratory with advanced testing equipments is built for quality
control.
We will test every machines carefully in different status by our professional engineers to make sure our machines
quality. For linear guides cnc milling machine, we will test the accuracy by Renishaw laser interferometer and will
make ball bar test, as well as cutting test before delivery.With the sequence testing, we can make sure the machines'
quality.
Optional accessories
XZ6326 WEIDA small vertical universal drilling milling machine can be equipped with many accessories to carry out different works.Mostly, the machine can be equipped with machine vice, rotary table,dividing head etc.
You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.
gantry type CNC drilling milling machining center
Model | GDC2030 | Unit | |||
Table | Worktable size | 2000×3000 | mm | ||
Distance of two columns | 2400 | mm | |||
Max. load | 5000 | Kg | |||
T slot | 9×22 | Mm | |||
Machining range | Max. travel - X | 3000 | mm | ||
Max. Saddle travel - Y | 2000 | mm | |||
Max. Spindle travel - Z | 500 | mm | |||
Distance from spindle nose to table surface | Max. | 650 | mm | ||
Min. | 150 | mm | |||
Spindle | Taper(7:24) | BT50 | |||
Speed range | 10-3000 | r/min | |||
Rated output torque | 230 | N·m | |||
Max. Axial force | 15000 | N | |||
Main motor power | 12 | Kw | |||
Max.drilling dia. | Φ40 | mm | |||
Max. Tapping dia. | Cast iron | M24 | mm | ||
Carbon steel | M20 | ||||
Feed | Feeding speed range | 1-4000 | mm/min | ||
Rapid feed | X | 12 | m/min | ||
Y | 12 | ||||
Z | 8 | ||||
Positioning accuracy | National standard: JB/T 8771.4 | X | 0.042 | mm | |
Y | 0.032 | ||||
Z | 0.022 | ||||
Repeat positioning accuracy | National standard :JB/T 8771.4 | X | 0.020 | mm | |
Y | 0.015 | ||||
Z | 0.012 | ||||
Machine weight | 20000 | Kg | |||
Overall dimension | 8400×3900×3080 | mm | |||
Machine type: gantry type CNC drilling milling machining center
Packing size: plywood cases or flat rack
1. We are the biggest manufacturer in our city. Our products includes milling machine, drilling machines,
cnc drilling and milling machine center ,cnc machines etc.
2. We attend many home and abroad exhibitions every year. In China, we attend Beijing or Shanghai exhibition, Canton fair.
In abroad, we attend EMO, Russia exhibition, Brazil exhibition etc.
3. Our market covers more than 70 ountries and regions, especially Europe & America market.
4. We have got many certifications, such as CE,ISO etc
Fixed beam gantry type milling machine X2010
| Specification | Unit | GMC0916 | ||
| Table effective size | Length | mm | 1600 | |
| Width | mm | 900 | ||
| T slot | mm | 5-22-180 | ||
| Max. load of table | kg | 3000 | ||
| Table travel | mm | 1800/1400/800 | ||
| Gantry width | mm | 1300 | ||
| Milling head | Power | kw | 15 | |
| Spindle taper | BT50 | |||
| Speed range | r/min | 10-3200 | ||
| Spindle motor power | kw | 15/18.5 | ||
| Overall dimension | L | mm | 6200 | |
| W | 3900 | |||
| H | 4580 | |||
| Machine weight | t | 13000 | ||
Details Images
