중국 밀링기분야  최대 최고 선도기업 웨이다기상창

문의 010 2845 4417 바로 바로  상세견적 제공합니다

범용밀링기부터 초대형 문형머시닝까지

specifications		units	x6328b
table size		mm	1120*260
max.load of table		kg	250
Table Travel (X)		mm	600
Table Travel (Y)		mm	270
Table Travel (Z)		mm	300
spindle speed range		rpm	65-4510
spindle travel		mm	127
spindle motor power		kw	2.2
overall dimention		mm	1710*1480*2330
machine weight		kg	1350

• XZ6326B WEIDA small vertical universal drilling milling machine
  Product Description



  Specification

  1.XZ6326 WEIDA small vertical universal drilling milling machine is a kind of drilling and milling machine. It has widely application. It can milling, drilling, reaming,tapping etc.

  2.The machine is with X gear box.The head can swivel /-45 degrees. The ram can move forward and backward, and also can swivel 180 degrees.

  3.XZ6326 is conventional small mill drill machine, and the operation is easy for operator to perform.

  	unit	specification XZ6326
  TABLE :
  Table size	mm	1120X260
  T slot no./width/distance	no	5/14/50
  Max. load of Table	kg	200
  machining range :
  table Longitudinal travel(manual/auto)	mm	600
  table Cross travel (manual)	mm	300
  table Vertical travel(manual)	mm	380
  MAIN SPINDLE :
  Spindle taper		ISO40
  spindle speed /step -- Vertical	rpm	67-2010/12steps
  --Horizontal	rpm	40-1300/12steps
  Max.drilling dia.	mm	30
  Max.end milling width	mm	125
  Max. vertical milling Dia.	mm	25
  Max.tapping dia.	mm	M16
  quill travel	mm	120
  swivel angle of headstock	degree	±45º
  vertical spindle axis to column surface	mm	220-760
  vertical spindle nose to table surface	mm	115-430
  horizontal spindle axis to table surface	mm	0-380
  horizontal spindle axis to ram bottom	mm	175
  ram travel	mm	520
  FEEDS :
  Longitudinal feed	mm / min	24-720/8steps
  Longitudinal rapid speed	mm / min	1040(X)
  automatic spindle feed		0.1/0.15/0.3
  POWER
  main motor	kw	1.5/2.2(V),2.2(H)
  feed motor	kw	0.37(X)
  coolant motor	kw	0.04
  others
  package dimension	cm	160X152X222 1pc/case
  		220X152X222 2pcs/case
  overall dimension	cm	158X145X215
  N/W,G/W	kg	1350/1500

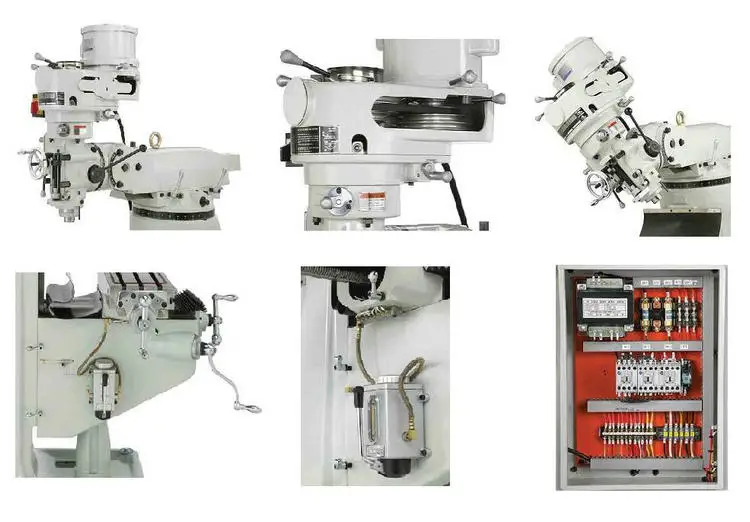

  Detailed Images



  XZ6326 WEIDA small vertical universal drilling milling machineis light duty universal machine tools. It's suitable for drilling, milling and tapping metals and some other materials which are easy to be processed.

  This model is only auto feed on X axis. We can supply it with X,Y auto feed, too. It's equipped with working lamp,cooling, lubrication.Its milling head can swivel /-45 degrees. You can equip different optional accessories according to your inquiry.

  Quality inspection

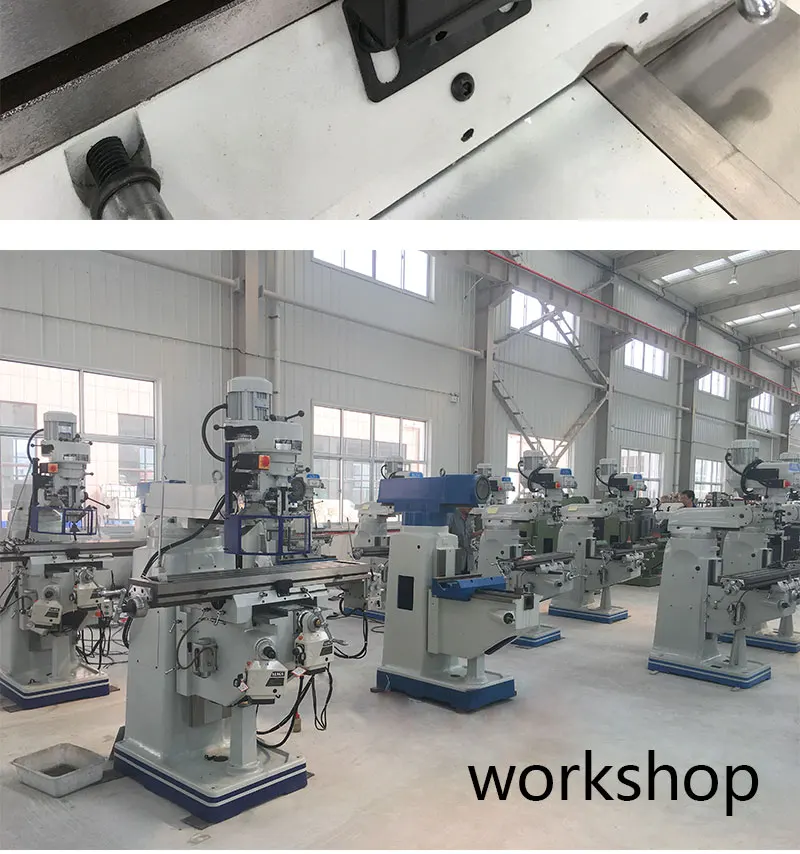

  We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal

  machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine,

  Shanghai C N C gantry guide rail grinding machine, Beijing C N C gantry type boring milling machine and automatic

  powder coating line .Besides, C N C machine tool project laboratory with advanced testing equipments is built for quality

  control.

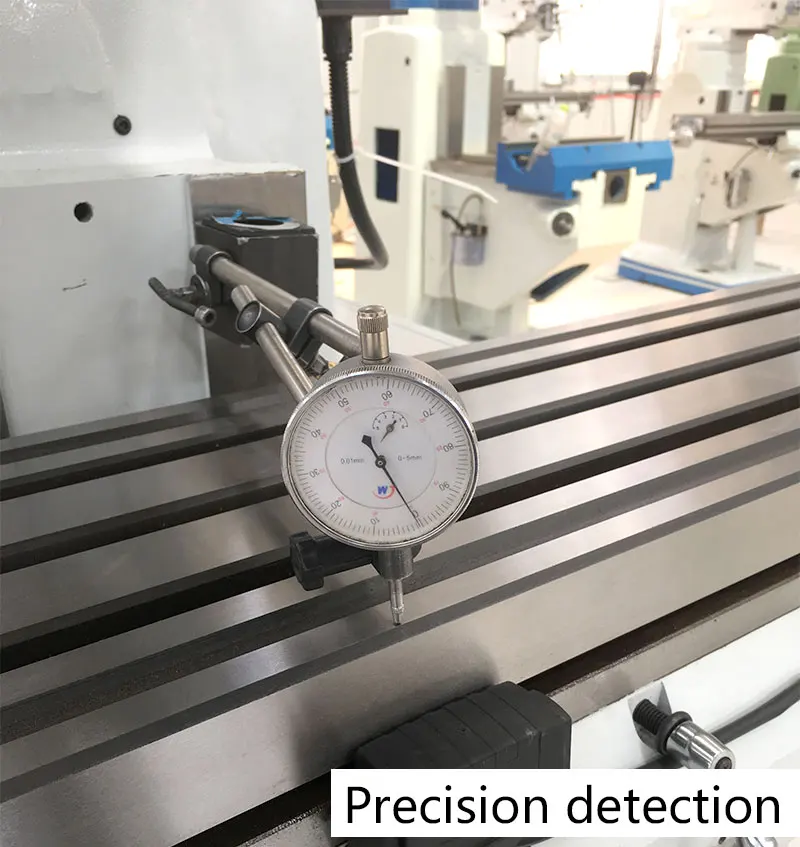

  We will test every machines carefully in different status by our professional engineers to make sure our machines

  quality. For linear guides cnc milling machine, we will test the accuracy by Renishaw laser interferometer and will

  make ball bar test, as well as cutting test before delivery.With the sequence testing, we can make sure the machines'

  quality.

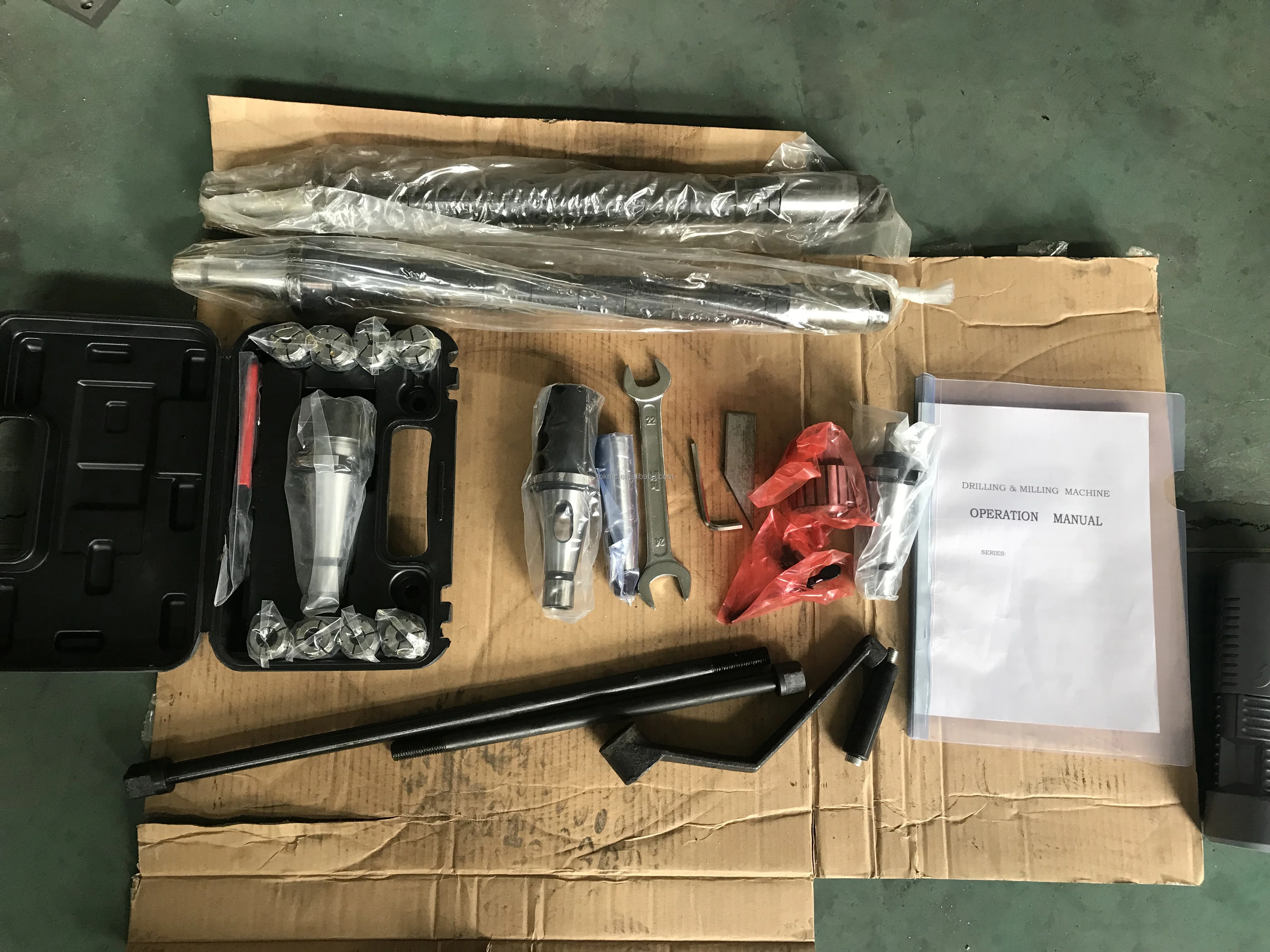

  Optional accessories

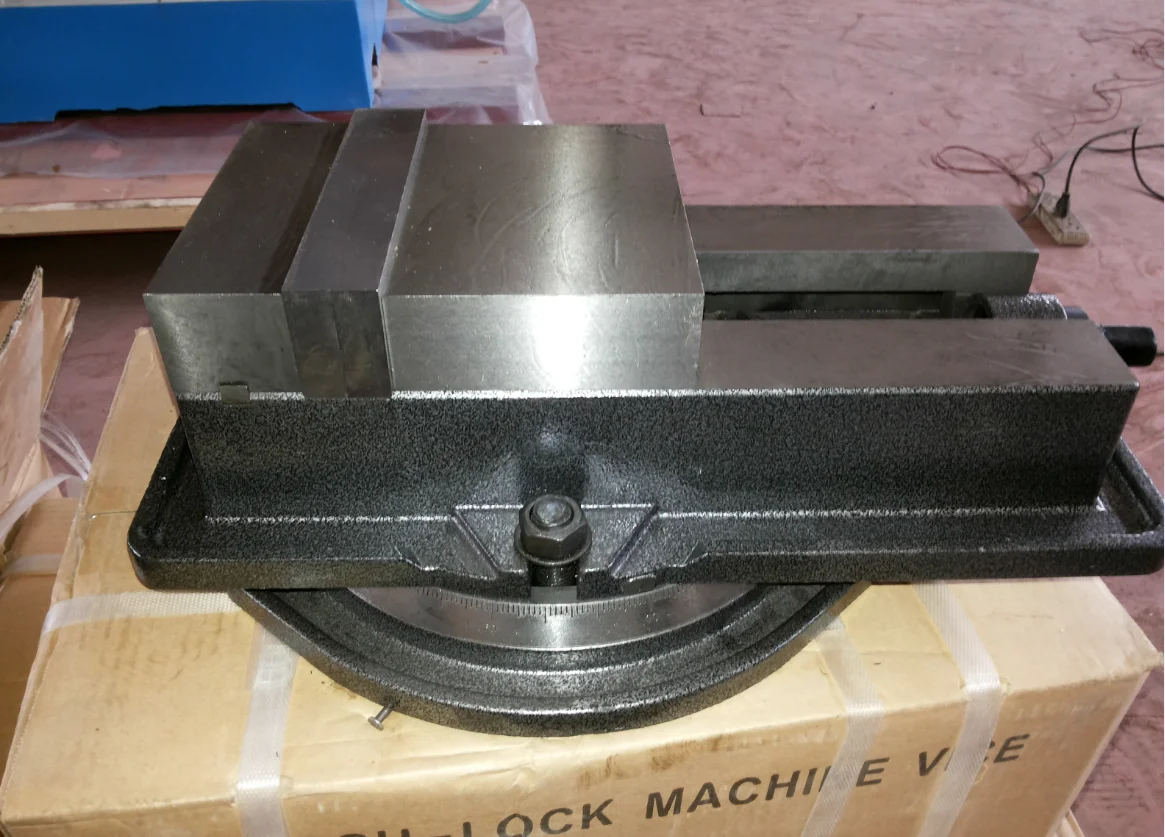

  XZ6326 WEIDA small vertical universal drilling milling machine can be equipped with many accessories to carry out different works.Mostly, the machine can be equipped with machine vice, rotary table,dividing head etc.

  You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.

•


gantry type CNC drilling milling machining center

Machine type: gantry type CNC drilling milling machining center

Packing size: plywood cases or flat rack

1. We are the biggest manufacturer in our city. Our products includes milling machine, drilling machines,

cnc drilling and milling machine center ,cnc machines etc.

2. We attend many home and abroad exhibitions every year. In China, we attend Beijing or Shanghai exhibition, Canton fair.

In abroad, we attend EMO, Russia exhibition, Brazil exhibition etc.

3. Our market covers more than 70 ountries and regions, especially Europe & America market.

4. We have got many certifications, such as CE,ISO etc
