※개요
•제품 외형의 재질이 Stainless Steel 또는 Die-cast aluminum으로 제공되어 다양한 분야에 적용
•다양한 Fieldbus 통신, 디지털 및 아날로그 입력, 출력 제어를 지원
•21CFR Part11 및 GMP 실험실 요구 사항의 요구 사항을 충족하는 전자 서명 및 감사 추적 기능이 있는 3단계 사용자 권한 관리
•다양한 감지 기술 지원: 액체 누출 감지, 덮개 열림 정지, 예측 유지보수를 위한 유량 센서
•높은 외함보호등급으로 해충 또는 진균 및 외부 분진 등의 침투에 대한 내부 기기를 보호하며, 물 또는 습기 및 오일 등의 침투로 인한 내부 기기를 보호할 수 있도록 설계 [International Protection, IP66]
※특징
•Available in stainless steel housing and cast aluminum housing for variety of applications
•IP66 for wet and dusty environment
•Supporting fieldbus communication control, digital signal control,analog signal control, and pump status output
•Three-level user authority management, with electronic signature and audit trail functions, meet 21CFR Part 11 and GMP lab requirements
•Integrating multiple sensors: fluid leakage sensor, open-head sensor and flow rate sensor, to realize predictive maintenance
※규격
|
Housingmaterial | Cast aluminum |
|---|---|
|
Speed range | 0.1rpm-265rpm, CW/CCW |
|
Speedresolution | 0.1rpm |
|
Clock function | Year/month/day/hour/minutecan be set, hours and minutes are displayed on the running screen |
|
Work mode | Flow rate mode,dispensing mode, calibration mode |
|
Flow rate mode | Pump runscontinuously at the set flow rate,and displays flow rate and pump speed onthe screen |
|
Flow ratesetting range | 1.1ml/min-17.0L/min（depending on pump head and tubing） |
|
Dispensingmode | Pump repeats thedispensing at set volume, cycles and interval time, and displays singlevolume, dispensed volume, dispensed cycles/target cycles on screen |
|
Volume ofsingle dispense | 1.0mL-274.9L（dependingon pump head and tubing） |
|
Dispensingcycles | 1-9999 (0 forunlimited) |
|
Interval time | 5s-9999s |
|
Calibrationfunction | Improve the flow rateand dispensing volume accuracy |
|
Control mode | Keypad control,external signal control and communication control |
|
Communicationcontrol | RS485 orTCP/IP(optional) interface, Modbus RTU, Industrial Ethernet(optional),Profibus DP (optional) |
|
Externalcontrol | Speed control: 0-10V,4-20mA, Start/stop, direction control: 5V-24V logic level signal or relaysignal (dry contact) |
|
Status output | Pump Speed: 0-10V,4-20mA, frequency signal (optional), Running/stop, direction, tubing leakalarm: relay signal (dry contact) |
|
Open headsensor | Pump will stop whenpump head is open for enhanced user safety |
|
Status whenpower up | Stop |
|
Keypad lockfunction | Enable the keypadlock function to lock the keypad automatically after 20s standby, (start/stopkey will not be locked) |
|
Tubing leakdetection | Detect the tubingleak and give alarm (optional) |
|
Flow ratemeasurement | Measure the flow rateby connecting flow meter (optional) |
|
User accesscontrol | Three levels of useraccesses (administrator, technician, operator) |
|
Electronicsignature and audit trail | Meet the requirementof FDA 21CFR Part 11 |
|
Log record | Record 90 days operation history, andcan be exported directly |
|
Support IQ/OQ | Meet GMP requirement |
|
Certificate | CE, UKCA , EN 61010-1:2010，EN IEC61010-2-201；EMC：EN IEC61000-6-2，EN IEC 61000-6-4 |
|
Deminsion(LxWxH) | 260x407x298mm |
|
Power supply | AC100-240V 50/60Hz |
|
Operatingcondition | Temperature: 5℃-40℃,relative humidity≤100% |
|
IP rating | IP66 |
|
Weight (driveonly) | ≤17.6kg |
※주문정보
|
Drive |
Pump head |
Roller Number |
Tubing |
Flowrates(L/min) |
|---|---|---|---|---|
|

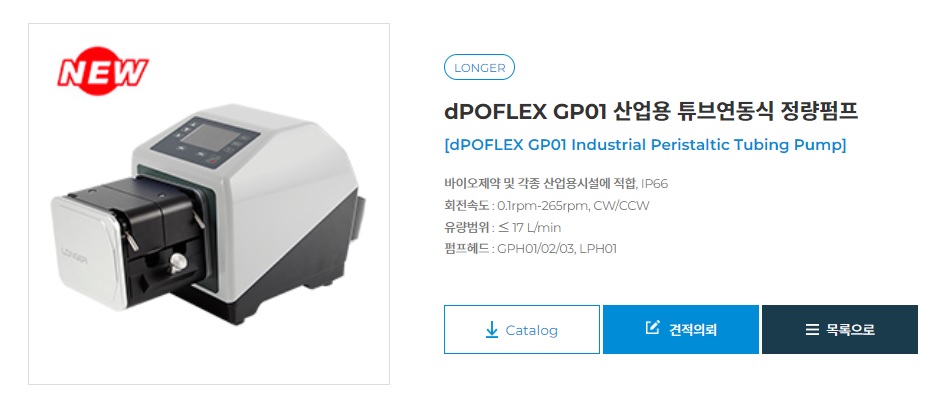

dPOFLEX GP01 (05.02.80A) |
GPH01 |
2 |
26# 73# 82# 184# |
15 L/min |
|
GPH02 |
2 |
186# 188# |
17 L/min | |
|
GPH03 |
4 |
186# 188# |
14 L/min | |
|
LPH01 |
6 |
186# 188# 187# |
13.5 L/min |
|
|
| ||
|
GPH Pump Head |
LPH Pump Head |
*******************************************************************************************************************
