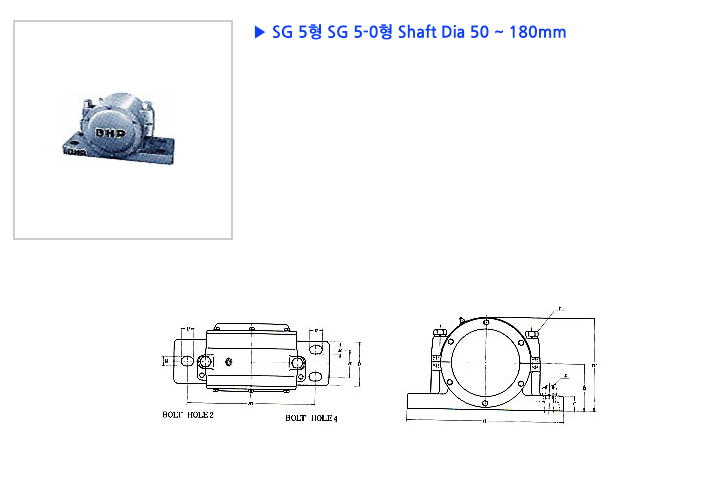

Shaft Diameter(mm) |
Housing Number |
Spherical roller Bearing |
Adapter Sleeve |
SR Ring |
Oil Seal |
||
|---|---|---|---|---|---|---|---|
|
貫通形 |
軸端形 |
Number |
C(kgf) (1kgf=9.8N) |
||||
|
50 |
SG 511 |
SG 511-0 |
22211CDK |
9.250 |
H 311 |
SR 100×4 |
GS 11 |
|
55 |
SG 512 |
SG 512-0 |
22212CDK |
11.000 |
H 312 |
SR 110×4 |
GS 12 |
|
60 |
SG 513 |
SG 513-0 |
22213CDK |
13.500 |
H 313 |
SR 120×5 |
GS 13 |
|
65 |
SG 515 |
SG 515-0 |
22215CDK |
14.500 |
H 315 |
SR 130×5 |
GS 15 |
|
70 |
SG 516 |
SG 516-0 |
22216CDK |
16.100 |
H 316 |
SR 140×5 |
GS 16 |
|
75 |
SG 517 |
SG 517-0 |
22217CDK |
19.100 |
H 317 |
SR 150×5 |
GS 17 |
|
80 |
SG 518 |
SG 518-0 |
22218CDK |
22.800 |
H 318 |
SR 160×5 |
GS 18 |
|
90 |
SG 520 |
SG 520-0 |
22220CDK |
29.100 |
H 320 |
SR 180×5 |
GS 20 |
|
100 |
SG 522 |
SG 522-0 |
22222CDK |
37.500 |
H 322 |
SR 200×5 |
GS 22 |
|
110 |
SG 524 |
SG 524-0 |
22224CDK |
43.500 |
H 124 |
SR 215×5 |
GS 24 |
|
115 |
SG 526 |
SG 526-0 |
22226CDK |
50.000 |
H 126 |
SR 230×5 |
GS 26 |
|
125 |
SG 528 |
SG 528-0 |
22228CDK |
57.500 |
H 128 |
SR 250×5 |
GS 28 |
|
135 |
SG 530 |
SG 530-0 |
22230CDK |
67.500 |
H 130 |
SR 270×5 |
GS 30 |
|
140 |
SG 532 |
SG 532-0 |
22232CDK |
81.000 |
H 132 |
SR 290×5 |
GS 32 |
|
150 |
SG 534 |
SG 534-0 |
22234CDK |
88.000 |
H 134 |
SR 310×5 |
GS 34 |
|
160 |
SG 536 |
SG 536-0 |
22236CDK |
90.500 |
H 3136 |
SR 320×5 |
GS 36 |
|
170 |
SG 538 |
SG 538-0 |
22238CAK |
101.000 |
H 3138 |
SR 340×5 |
GS 38 |
|
180 |
SG 540 |
SG 540-0 |
22240CAK |
115.000 |
H 3140 |
SR 360×5 |
GS 40 |
