중국 CNC 선반 취급 전문 덕주코리아 문의 010 2845 4417

중국 선반/밀링기/연마기

해외직구 구입관련 길잡이 안내

덕주코리아 - 중국 공작기계 취급전문( 30여년 취급경험)

덕주코리아와 협의를 통해 좋은 구매 결과를 얻으시기 바랍니다

이왕이면 좀 더 우수한 메이커 것을 선정

사후관리도 원활한 것으로

제대로 필요한 부품 사전에 기계구매시 동시 확보

중고 가치가 계속 높게 유지되는 것으로

이미 성능과 품질이 정평이 나 있는 것으로

심층 파악

선반 주축경이 큰 대주축경 선반

밀링 소형 밀링기 /1.5호기 밀링/양두밀링

연마기소형 평면연마기/칼날연마기/공구 연마기

래디얼 40*1300/50*1600/63*2000

와이어컷팅기/레이져가공기

프레스/절곡기 /파이프 밴딩기

소형 선반/밀링기/연마기 및 기타

* 복합기도 공급됨

밀링기 : 소형 탁상/1.5호기/공무용 밀링기 (중대형)

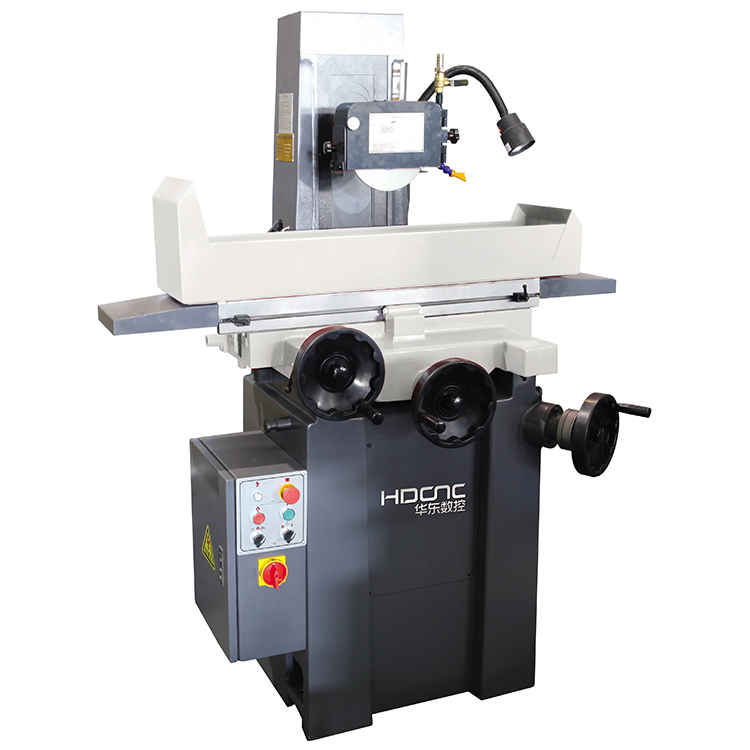

연마기 : 평면연마기/칼날(평날)연마기/공구연마기/원통연마기

1. 소형선반 (탁상용포함)

소형 선반

180*300

210*400/700 * 38파이도 있음

250*500/750

280*550/610/815 BESTECH BT280

320*600

330*550/750

360*750/1000

400*1000 약 5가지 층이 있음

베드폭 200/250/300/350/400MM

주축경 38/40/52/58/80/100파이

모터 마력/기계중량/기타 스펙 변화

1) 선반 밀링 드릴링 복합기

MPV 290*700 38파이 견실형

HQ400/500 가공범위 확대형

super mini lathe

00:25

04:29

7" X 12" Variable-speed Metal Lathe With A Movable Lamp & 9 Cutters & 1x 4-Jaw Chuck

German lathes small bench table lathe machine for home using

Product Description

Our Precision Mini Benchtop Lathe is by far-and-away the best spec mini-lathe for the money. With this lathe you will get a superb workhorse, a guarantee and a full after sales service. The 7 x 12 Inch lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor. 0-2250RPM continuously adjustable. 1x free lamp, 1x 4-Jaw Independent Chuck, 1x Quick Change Tool Post Set and 4x Engineers Measuring Kit for free.

Sturdy Iron Construction
Infinitely Variable Speeds
Accurate 3-jaw Chuck
Professional Compound Rest

Features & Details
1. STURDY IRON CONSTRUCTION:
The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splashguard provides maximum protection.
2. INFINITELY VARIABLE SPEEDS:
0-2250RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The handness and accuracy of the v-slideways are obtained by raw material, heat hardening and grinding. Emergency stop buttom included.
3. ACCURATE 3-JAW CHUCK:
Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm. A free lamp, 1x 4-Jaw Independent Chuck, 1x Quick Change Tool Post and 4x Engineers Measuring Kit are included.
4.PROFESSIONAL COMPOUND REST:
The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
5.WIDE APPLICATION:

Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works. 9 Cutters for easy replacement.

Application

· Suitable for turnings of metal, wood, jade, etc.

· Ideal for use in labs, workshops, engineering and education.

· Can be turned within foreign aid, turning thread, turning taper and so on.

Key Features

Heavy & Sturdy Machine
Features a 7 inch swing over bed, 11.81 inch distance between centers and 20mm spindle bore. Includes a thread range of 12-52 TPI, standard and metric handwheel graduations.
Infinitely Variable Speeds
Variable speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm. One free 4-Jaw Independent Chuck for you.
Four-way Tool Post
T-slotted compound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever. 1x free Quick Change Tool Post Set.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 300mm(11.81"). A lamp is for acurate operation in a dark environment.
Wide Applications
Suitable for processing jobs, like counter face turning, driling, threading and cutting jobs on materials made up of round bar. All accessories are well packed.

Specifications:

Power of Motor: 550W DC Single Phase
Spindle Speed: 0-2250PRM
Swing Over Bed: 180mm(7.09")
Chuck Diameter: 80mm(3.15")
Centers Distance: 300mm(11.81")
Spindle Bore: 21mm(0.83")
Inch Thread: 12-52 T.P.I
Metric Thread: 0.4-2mm
Tail Stock Taper: MT2
Spindle Taper: MT3
Gear Material: Plastic Nylon
Power Source: Electric
Control: Manual
Machine Type: Metal Lathe
Treated Material: Metal
Net Weight: 50kg(110.23 lb)
Package size:81*31*34CM

Package

1 x Mini Metal Lathe
1 x Lamp
Some Related Accessories
1 x Manual

German lathes small bench table lathe machine for home using

Photos

German lathes small bench table lathe machine for home using

Attention:

1.Read the manual carefully before open the package
2.Make sure the machine is leveled before Power on the machine.
3.Make sure that the gap between the middle plate or guide is moderate, not too small.Moving the plate by swiving the wheel to make sure the plate can move smoothly
4. .Before starting up, make sure that the voltage is within the working voltage range(230V /- 10% or 120V /- 10% base on the products you bought ).
5. The cutting amount should be controlled within 1.5 mm for steel or iron , 3 mm for Alumium or copper to prevent damage of the motor or the motor circuit board due to overload.

Factory and shipping

CJ18A 7x14 Mini Lathe Blue Accessory Package Tooling Bench Top Cutter

Premier quality CJ18A mini lathe with accessory package for sale! This set will be a perfect choice for anyone starting to set up a workshop or if you are new to metalwork as this set includes the main items you’ll need.
This listing includes the following accessories:
Fixed and traveling steadies, tail stock chuck, live centre, quick change tool post, 100mm independent chuck, 9 piece indexable Tin coated lathe tools (high quality) & 4pc engineers' measuring kit (including caliper
and outside micrometer).
Features
 * 100mm (4") chuck.
 * 350mm (14") between centers, 550W powerful motor.
 * Digital readout of spindle speed, tailstock lever lock.
 * Brand new machine and accessories from manufacturer.
 * Ideal for both professionals and green hands.
 * With purchasement of this lathe set, you will get a superb workhouse with brilliant after sales service.
 * Specifications should be treated as a guide as there can sometimes be a small variance from the quoted details.

Feature

*350mm (14") between centers, 180mm (7") swing over bed.*Digital readout of spindle speed, tailstock lever lock.
*Brand new machine and accessories from manufacturer.
*Ideal for both professionals and green hands.
*Good quality, brilliant after sales service. 2-year free warranty.

Specifications
Power:	550W, 220V
Distance Between Centers :	350mm (14")
Swing Over Bed:	180mm (7")
Swing Over Cross Slide:	110mm (4.3")
Taper:	MT3
Tailstock Taper:	MT2
Chuck Diameter:	100mm (3.9")
Spindle Speed:	50-2500rpm
Spindle Bore:	21mm (0.8")
Cross Slide Travel:	65mm (2.6")
Chuck Diameter:	100mm (3.9") (Integral spindle plate is 100mm and can take 3 or 4 jaw chucks-no adapter plate required)
Range of Metric Threads:	0.5-2.5mm (0.02"-0.1")
Range of Imperial Threads:	12-52 TPI
Spindle Accuracy:	0.01mm
Actual Lathe Dimensions:	773229cm (30"13"12")

Package Content
* 1 X CJ18A Mini Lathe	* 1 X Oil Can
* 1 X Set of External Jaw	* 1 X Set of Accessories Shown on Pictures
* 9 X Indexable Tin Coated Lathe Tools	* 1 X Operation Manual
* 1 X Rear Splash Guard	* 1 X Set of Spanner
* 1 X Set of Hex Keys

Other Model
Model	MX180V	MX210D/S	MX250D/S
Power	600W, 110V/60Hz	750W,220V	750W
Distance Between Centers	12" (300mm)	400/700mm	500/750mm
Swing Over Bed	7" (180mm)	210mm	250mm
Swing Over Cross Slide	4" (95mm)	110mm	150mm
Width of Bed	4" (100mm)	100mm	100mm
Taper of Spindle Bore	MT3	MT3	MT4
Spindle Bore	1inch (21mm)	21mm	26mm
Range of Spindle Speeds	50-2500RPM	50-2500RPM	80-1600RPM(12)
Range of Longitudinal Feeds	0.08-0.16mm	0.08-0.16mm	0.03-0.275mm
Range of Threads	10-44T.P.I (0.5-3mm)	10-44T.P.I (0.5-3mm)	0,25-2.5mm
Top Slide Travel	2" (55mm)	55mm	55mm
Cross Slide Travel	3" (75mm)	75mm	75mm
Tailstock Quill Travel	2.5" (60mm)	60mm	60mm
Taper of Tailstock Quill	MT2	MT2	MT3
Gross Weight	68kg (149.6lbs)	80/95kg (176lbs)	163/180kg
Package Dimensions (LWH)	780480420mm (31"19"17")	900480480mm (35.4"19"19")	1200620600mm

Details Images

Precise Engineering

This power metal lathe's high-precision 4-inch 3-jaw chuck handles both square and round objects with equal aplomb. It's especially suitable for jobs requiring high accuracy, such as threading.

Variable Speeds

The milling machine can adjust the speed from 0-2500rpm by the knob. Spindle adjustable rate for multiple workings

User-friendly Design

The aluminum handwheel is more durable. A digital display screen is convenient for you to follow up the processing. LED light can help you finish the work in gloomy places.

Large Working Capacity

This metal working lathe provides a 7.09"/180mm swing over bed and 13.78"/350mm center distance so that you can manage more extensive projects.

Complete Accessory Set

The lathe machine is equipped with a foot stock, which supports the longitudinal rotary axis of a workpiece that you are going to process.

Wide Application

The mini lathe is designed for turning, drilling, and threading. It is widely used in metal taper, and slot turning, screw
threading.

Recommend Products

Recommended by seller

1) 선반 밀링 드릴링 복합기

MPV 290*700 38파이 견실형

HQ400/500 가공범위 확대형

Product Description

Manual Lathe Features:

1) High precision spindle.
2) More popular, widely useful variable speed lathe.
3) Induction harden precision bedway.
4) Powerful, maintenance-free motor.
5) Gear head, low noise.

Specification for MPV290
Distance between centers	700mm
Swing over bed	290mm
Swing over cross slide	165mm
Spindle taper	MT5
Width of bed	180mm
Spindle bore	38mm
Range of spindle speeds(variable speed)	80-2000rpm
Range of cross feed	0.01-0.10mm /rev
Range of longitudinal feed	0.085-0.832mm/rev
Range of inch threads	8-56T.P.I
Range of metric threads	0.2 -3.5mm
Top slide travel	70mm
Cross slide travel	160mm
Tailstock quill travel	70mm
Taper of tailstock quill	MT3
Main motor	1.5kw
Drilling and milling head	BF20
Spindle taper	MT2
Spindle travel	52mm
Range of spindle speeds(variable speed)	50-2250rpm
Max.distance from spindle nose to table	380mm
Max.distance from spindle to columm	190mm
Motor power	750w
Packing size(for machine)	1450X700X1040mm
Packing size(for stand)	800X580X415mm
N.W	325kgs

Detailed Images

Product Description

Features:

Turning,milling,drilling and treading

Metric or imperial thread cutting

Suitable for processing metal,wood and other materials

Excellent advantage of various functions,small occupation and economic

Specification	HQ400	MP500
Max. Swing over bed	420mm	420mm
Max. Distance between centers	400mm	500mm
Max. longitudinal travel	380mm	400mm
Max. cross travel	120mm	200mm
Spindle taper	MT3	MT4
Spindle bore	20mm	φ28mm
Step of spindle speed	3 steps	7 steps
Range of spindle speed	500.900.1600rpm	160-1360rpm
Barrel travel	70mm	70mm
Barrel taper	MT3	MT3
Max. drilling capacity	20mm	φ22mm
Worktable size (L×W)	200*150mm	475×160mm
Max. end mill	20mm	φ28mm
Max. face mill	63mm	φ80mm
Spindle taper	MT3	MT3
Step of spindle speed	6 steps	16steps
Range of spindle speed	375-1600rpm	120-3000rpm
Swivel degree of headstock	±360°	±360°
Motor power	0.55kw	0.75kw
Packing size	10305801070mm	1130×580×1100mm
N.W/G.W	155/185kgs	245/280kgs

320* 750

선반 CJM 320 *750

Product Description

Machine Features:

Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 9-1800rpm.
Two different lengths of bed are available.
With or without cabinet according to requirement.

Specification	CJM320C
Max. swing over the bed	320mm
Max. length of work piece	500/750mm
Max. swing over cross slide	180mm
Max. cross slide travel	160mm
Max. longitudinal stroke over tool post:	75mm
Spindle bore	38mm
Spindle taper	MT5
Spindle speeds range	8 steps: 90-1800r/min
Metric thread kinds	18
Metric pitches	0.20-3.5mm
Inch threads kinds	34
Inch pitches	41/2-48 1/n''
Longitudinal-feed range	0.08-0.56mm/r
Cross-feedrange	0.04-0.28mm/r
Tailstock quill travel	60mm
Tailstock quill taper	MT3
Motor	1100W
N.W/G.W	300/350kg
Packing size: (L×W×H)	15007001300mm

Detailed Images

1. 초소형 탁상 밀링기

TM13 mini milling machine

(SPECIFICATIONS)

Drilling capacity	13mm
Max.end mill capacity	16mm
Max.face mill capacity	30mm
Headstock travel(Z)	180mm
Cross axis(X)	100mm
Longitudinal axis(Y)	220mm
Throat	170mm
Max.distance spindle to table	280mm
Head tilt	45°L, 45°R
Spindle taper	MT3 or R8
Motor output power	350W
Spindle speed Low range /High range	100-1100RPM±10%/ 100-2500RPM±10%
Table effective size	390×92mm
T-slot size	12mm
Net weight/Gross weight	50kg/68kg
Packing size	520×520×730mm

PRODUCT SPECIFICATIONS

13Max. Drilling Diamter		13mm
Max. Face Milling Capacity		30mm
Max. Vertical Milling Capacity		16mm
Worktable Size		485×110mm
T-slots Size		12mm
X-Axis Travel		300mm
Y-Axis Travel		130mm
Z-Axis Travel		180mm
Spindle Taper		MT3/R8
Spindle Incline Angle		±45°
Spindle Speed (Variable Speed)		50-2500mm
Motor Power		600W
N.W./G.W.		62kg/80kg
Packing size		550×550×735mm

FEATURES AT A GLANCE

2. 소형 벤치밀링

Product Description

Equipment technical features:
The working table can move vertically and horizontally.
The base is integral casting, the workpiece is more stable and the precision is higher!
With drilling, milling, boring, grinding, tapping, and other cutting functions of the machine.
The headstock can turn around 90° in the vertical plane.
The working table can turn around 45° in the horizontal plane
The worktable can automatically move the knife longitudinally to improve the processing

Specification

item	value
Condition	New
type	Drilling & Milling Machine
Max. Drilling Dia. (mm)	50
Range of Spindle Speed(r.p.m)	11r.p.m - 1750r.p.m
CNC or Not	Normal
Drilling Speed	115-1750
Place of Origin	China
	Shandong
Brand Name	No.1 machine
Model Number	ZX50C
Voltage	110V/220V/380V/440V
Dimension(LWH)	11009701650
Certification	CE/ISO
Power (kW)	1.5
Weight (KG)	500KG
Warranty	1 Year
	Online support, Video technical support
Key Selling Points	Competitive Price
After Warranty Service	Video technical support, Online support
Local Service Location	China
Showroom Location	China
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Motor
Product name	Drilling and milling Machine
drilling a max.diameter	50
max.milling width	100
milling diameter	25
bore diameter	120
max.tapping diameter	M16
spindle taper hole	MT4
distance spindle nose to table	38-430
weight	500/600
dimensions	11009701650

Product main technical specifications:

Specifications	ZX50A milling machine	ZX50C milling machine
Max. Drilling Dia. (mm)	50	50
Max. Horizontal Milling Dia.	100	100
Max. Vertical Milling Dia.	32	32
Max. Boring Dia.	100	100
Spindle Taper	MT4,R8	MT4,R8
Spindle Speeds Range	(5 step) 270-2400	(5 step) 115-1750
Spindle Travel	120	120
Table Size (mm)	800*240	800*240
Table Travel (mm)	400230380	400230380
Main Motor Power (KW)	1.5	0.85/1.5
N.W./G.W.(Kg)	460/540	470/550

Standard Accessories:

Work lamp
Cooling system

Milling Chuck

Drilling Chuck

Draw bar

Oil collecting plate
Tool & toolbox
Reduction sleeve

Optional Accessories:

Power feed

3-axis Digital Reading

Turret Milling Head

Machine Vise

Dividing Head

Rotary Table
Clamping Kits

3. 소형 복합밀링

VERTICAL MILLING AND DRILLING MACHINE:
1. Uses standardized assemblies from the VH milling machine universal use as

milling machines and drill press
2. Easily shift able gear drive ensures power transmission without losses
3. With V-belt spindle drive and gear spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear,

easy activation of manual micro-feed for the spindle quill

MODEL	ZX7550	ZX7550C	ZX7550W	ZX7550CW
Max.drilling dia (mm)	50	50	50	50
Max.horizontal milling dia (mm)	100	100	100	100
Max.vertical milling dia (mm)	25	25	25	25
Max.boring dia (mm)	120	120	120	120
Max.tapping dia	M16	M16	M16(Vertical)	M16
Distance.spindle to table surface (mm)	140-490	90-490	80-460	90-490
Spindle speeds range (r.p.m)	230-1825	115-1750	230-1825(Vertical) 80-1300(horizontal)	(Vertical)115-1750 (Horizontal)60-1350
Spindle travel	120	120	120	120
Table size (mm)	800×240	800×240	800x240	800×240
Table travel (mm)	400×230	400×230	400x230	400×230
Overall dimensions (mm)	1100×1100×2080	1100×1100×2080	1280×1100×2080	1280×1100×2080
Motor (Kw)	0.85/1.5	0.85/1.5	0.85/1.5(Vertical) 1.1(horizontal)	( Vertical)0.85/ 1.5 (horizontal)2.2
N.W/G.W (Kg)	610/770	610/770	700/880	850/1000

Item	TU60S
Spindle taper	R8/MT4/ISO30/ISO40
Distance from vertical spindle nose to table	70~420mm
Distance from horizontal spindle centerline to table	0-280mm
Distance from vertical spindle centerline to column	220-700mm
Distance from horizontal spindle centerline to ram bottom	170mm
Spindle speed range	(H) 8steps, 60-1350r.p.m (V) L:90-425r.p.m./H:425-2100r.p.m.
Swivel angle of milling head	±45°
Table size (L×W)	1000x240mm
Max.rotations angle of tadle	±45°
Table travel (X/Y/Z)	500x200x350mm
Table longitudinal & cross feed	4 steps, 7-42mm/min
Table vertical feed (Z)
X,Y-axis rapid feed speed	800mm/min
Z-axis rapid feed speed
Feed motor power	370w
Max.loading of worktable	200kgs
Table T-slots (No./Width/Pitch)	3/14mm/60mm
Z-axis guide way type	Dovetail
Y-axis guide way type	Dovetail
X-axis guide way type	Dovetail
Main motor power	(V)2.2KW (H)1.5KW
Overall dimensions (L×W×H)	1290X1220X2100mm
Packing size (one/two sets)	114x134x222cm
N.W (one set)	850kgs

4. 1.5호기 밀링 Item	Unit	X6325	X6325A	X6325B	X6325C	X6325D	XU6325
Table size	mm	254x1270					250x1270
Longitudinal travel	mm	850					770
Cross travel	mm	400					400
Vertical travel	mm	400					400
T-slot		3x16
Distance from spindle nose to table	mm	0-400
Ram Travel	mm	470
Spindle taper		Standard: R8; Optional: ISO30/ISO40			ISO40		R8
Spindle travel	mm	127
Spindle speed	Rpm	Standard: 16-steps, 66-5440
		Optional: Variable 60-4200			Variable 60-3600		60-4200
Spindle feed		3-steps: 0.04/0.08/0.15 mm/rev
Main motor	kw	2.25/3HP			3.75/5HP		2.25/3HP
Head Swivel (Right-Left)		90°
Head Swivel (Front-Back)		45°
Single milers package	mm	1516x1550x2080
Weight	kg	1490

Standard Accessories

Plastic splashing guard
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Milling Chuck

Optional Accessories

Power feed
3-axis Digital Reading
Machine Vise
Clamp Kits
Variable milling head
Air drawbar
Dividing Head
Rotary Table

ZAY7040G vertical drilling & milling machine power feed==Main features

1. Gear-driven and round column

2. Milling, drilling, tapping, boring and reaming

3. Adjustable gibs on table precision

4. Strong rigidity, powerful cutting and precise positioning

5. Reversible spindle direction

6. Dovetail ways

7. Head tilts up to 90° left or right and swivels up to 360° around the column

ZAY7040G vertical drilling & milling machine power feed==SPECIFICATION

SPECIFICATION
ITEM	ZAY7020G	ZAY7032G	ZAY7040G	ZAY7045G

Drilling capacity	20mm	32mm	40mm	45mm
Face milling capacity	63mm	63mm	80mm	80mm
End milling capacity	20mm	20mm	32mm	32mm
Distance from spindle nose to table	439mm	440mm	440mm	440mm
Min.distance from spindle axis to column	197.5mm	272.5mm	272.5mm	272.5mm
Spindle travel	85mm	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6	6
Range of spindle speed 50Hz	95-1420 r.p.m	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	115-1700 r.p.m	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Swivel angle of headstock(horizontally/perpendicularly)	360°/±90°	360°/±90°	360°/±90°	360°/±90°
Table size	520×160mm	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	140mm	175mm	175mm	175mm
Left and right travel of table	290mm	500mm	500mm	500mm
Motor power	0.37KW	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/frequency	As customer's requirement	As customer's requirement	As customer's requirement	As customer's requirement
Net weight/gross weight	130kg/190kg	315kg/365kg	318kg/368kg	320kg/370kg
Packing size	680×750×1000mm	770×880×1160mm	770×880×1160mm	770×880×1160mm
Loading amount	48pcs/20'container	36pcs/20'container	36pcs/20'container	36pcs/20'container

ZAY7040G vertical drilling & milling machine power feed==Standard accessories

Allen srench
Wedge
Tie rod

ZAY7040G vertical drilling & milling machine power feed==Optional accessories

Drill chuck
Milling cutter holder
Mill chuck
Power feed attachment
Auto-tapping electrical
Paraller vise
Working lamp
Coolat system
Machine stand and chip tray
Clamping kits

ZAY7040G vertical drilling & milling machine power feed==FACTORY AND OTHER

1.Main Application and Applicable Scope

ZX7045 is used for drilling, milling,tapping and reaming on ferrous and non-ferrous materials, its max drilling capacity is 45mm, width of face milling is 80mm, diameter of vertical milling is 28mm, it is widely used in the machinery workshops,hardware, instrument and gauge industries, and repair workshops for single piece or mass production and so on.

2.Technical Parameters

Max drilling capacity		45mm
Width of face milling		80mm
Diameter of vertical milling		28mm
Max tapping capacity		M12
Spindle travel		120mm
Distance spindle axis to column surface		260mm
Distance spindle nose to worktable		475mm
Taper of spindle		MT.4
Spindle speeds		6 steps
Spindle speeds range	65、120、190、370、670、1380r/min
Travel of worktable (L×W)		550×200mm
Size of worktable		820×240mm
Main motor		1100W, 910r/min
Outline dimension (L×W×H)		1140×800×1040mm
Net/Gross weight		320/370kg

Product Description

Hot selling desktop milling machine, manual scale slotter, mini slotting machine price

Feature:

1.This manual milling machine is small and exquisite, also with beautiful appearance.

2.Good accuracy and stability, easy to operate.

3.Widely used in non-ferrous metals and plastics, plexiglass, wood sawing, milling, engraving, milling and other milling, the above cutting can be done in any position.

4.Spindle arbor default 22MM, can be customized 16MM.

Specification:

M1514 desktop manual grooving machine

Table size	335x130mm
Horizontal travel	110mm
Vertical travel	180mm
Lifting travel	180mm
Table rotation	-45 degree
Power	750W
Spindle speed series	3 level
Machine size	650x600x660mm
Weight	93kg
Spindle spee	610/1400/2700 r/min
T slot width	12mm
T-slot pitch	68mm

Product Overviews

Product Display

Product name	Manual Surface Grinder Machine
MOQ	1set
Payment	L/C,T/T

Specification

Specification	Metric	Inch(“)
Longitudinal stroke	340mm	14
Cross stroke	170mm	7
Vertical stroke	210mm	8
Table size(W*L)	152mm×304mm	6×12
Width of T-slot	1-12mm	1-0.47
Cross feed per graduation	0.02mm	0.001
Cross feed per round	2.54mm	0.1
Vertical feed per graduation	0.025mm	0.001
Vertical feed per round	1.25mm	0.05
Size of grinding wheel	180mm×32mm×13mm
Motor power	0.55kw
Roughness	1.6μm
N.W. / G.W. of machine	210/258kg
N.W. / G.W. of stand	30/54kg
Overal dimensions of machine	930×780×730mm
Case dimensions of machine	930×780×1480mm
Case dimensions of stand	720×550×550mm

NO.	Model	X1514B
1	Worktable Size(length * width )	325x130mm
2	Longitudinal Moving Distance	100mm
3	Horizontal Moving Distances	100mm
4	Spindle Vertical Moving Distances	180mm
5	Spindle Diameter for ftool	22mm
6	Spindle Speed Range	780--2480r/min
7	Angle of Worktable Revolution	0--180°
8	Motor Power	0.75kw
9	Motor Speed	1400r/min
10	Motor Voltage	380V
11	Overal Size	700x700x570mm
12	Net Weight	85kg
