신품 판매중
초소형 연마기 테이블 150*300 덕주코리아 -중국 공작기계 취급전문-
가격 가격협의
모델명 PSG612
제품분류 연삭기
업체명 덕주코리아
전화번호 0504-0668-0044
등록일 23.01.26
판매자의 다른 제품 판매자의 제품 모두보기
Z3040 레디얼 드릴링기 40*1000/1100/1200/1300/1400
1325 CO2 레이져 컷팅기1300*2500 150W 180W 200W/250W/300W/500
2000 cnc 면깎기 밀링기중국기계 덕주코리아
DUPLEX 양두밀링 염가공급 모델 350/430/500/600/700/800/1000/1300/1
CW 선반 중국 덕주선반의 모든 것 덕주코리아
상세설명

중국산 신품 소형 연마기 취급 전문  덕주코리아

중국산 소형 선반/밀링기/각종 소형 공작기계류 종합 취급

Product Paramenters

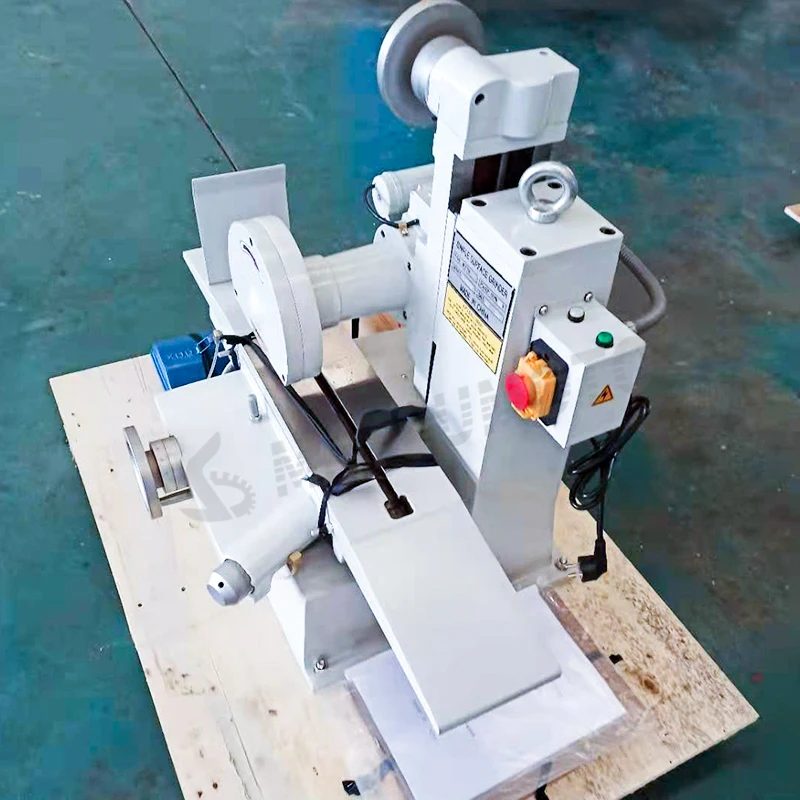

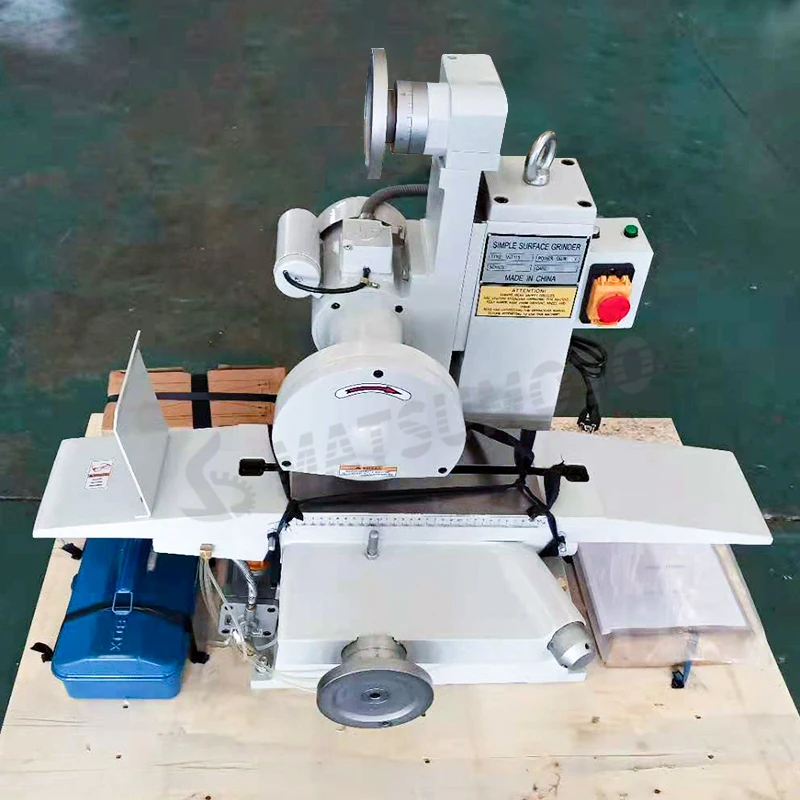

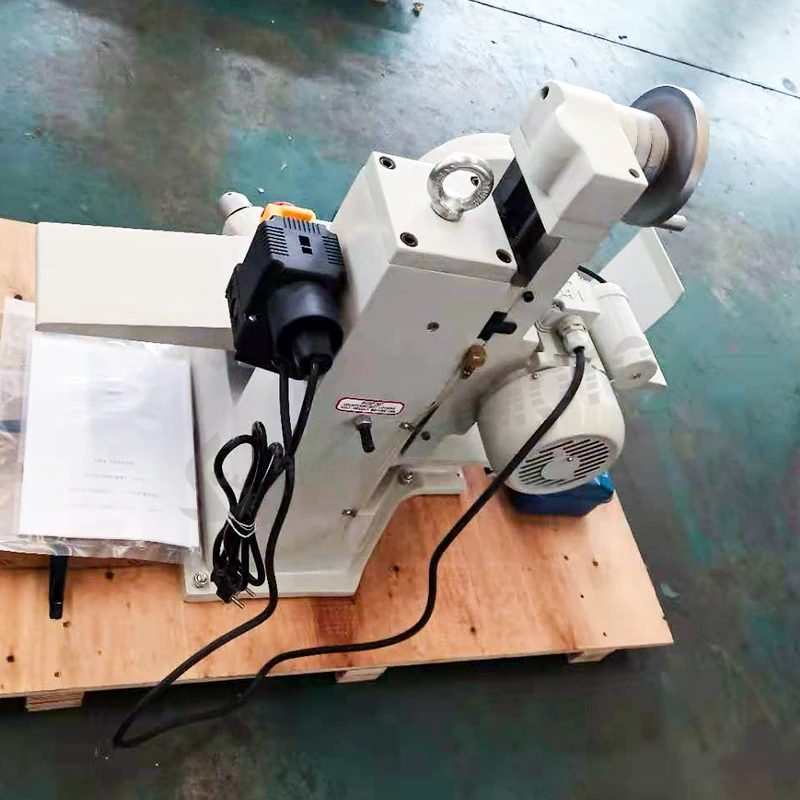

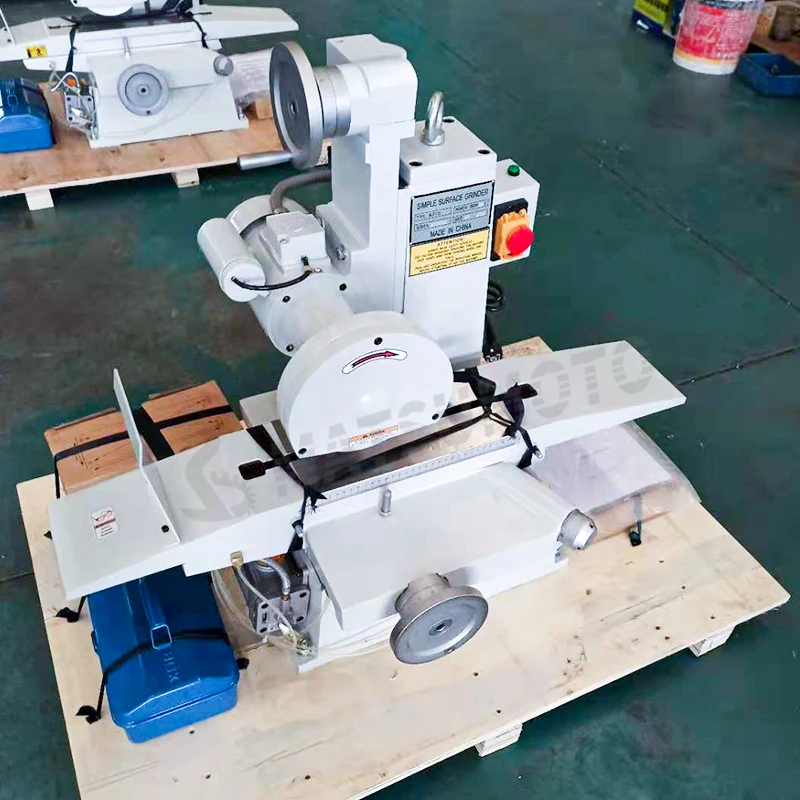

MJ7115 surface grinder is designed to grind various horizontal and vertical surfaces of the workpieces by the periphery and end faces of the grinding wheel respectively. It can also grind contoured workpieces with shaped wheel or craftsmanship apparatus. With small dimensions, light wight, smoothly safe operation and convenient maintenance, etc., it can be used in small enterprises,repairing shops, household industry, lab, teaching demonstrations, etc.
1.Integrated grinding head of high quality, high rigidity and accuracy.
2. Small size and light weight, easy operation and maintenance.
3. Pompa manual pelumas terpusat.
SPECIFICATIONS
Metric
Inch
Longitudinal stroke
340mm
14
Lateral stroke
170mm
7
Grinding height
210mm
8
Area of table
152*304mm
6*12
Width of T-slot
1-12mm
1-0.47
Cross feed per graduation
0.02mm
0.001
Cross feed per round
2.54mm
0.1
Vertical feeds per graduation
0.025mm
0.001
Vertical feed per round
1.25mm
0.05
Roughness
1.6μm
Grinding wheel
180mm*32mm*13mm
Power of motor
0.55kw
N. W. / G.W.of machine
210/260kg
N. W. / G.W.of stand
30/54kg
Overall dimension of machine L*W*H
930*780*730mm
Case dimension of machine L*W*H
930*780*1480mm
Case dimension of stand L*W*H
720*550*550mm
Oil tark capacity
L
Surface Roughness
μm
Paraller Level
mm
Weight
KG
Machine Size (L*W*H)
mm
Packing Size (L*W*H)
mm
Details Images

중국 소형 선반 둘러보기  덕주코리아  제공

​중국 소형선반 집중 탐구

점검 사항

스윙 최대가공경/최대 가공길이/주축경 크기 여부/가공 속도 등

초소형 탁상형 스윙 200/250/280/320/360

길이 500/600/750/800/910/1000

주축경 25/38/52


​탁상선반

소형 기본형 280MM 스윙 센타길이 600MM

표준형 주축경 26파이 모터 마력 1.1KW  (기어체인지 나사가공형)

나사가공 편리형 주축경 26파이 모터 마력 0.75 KW 기어체인지 없이 나사 가공형

주축 확대형( 26-->38파이)


탁상선반 부품

표준부속품: 3본척 125MM/MT3 데드센타/체인지 기어 셋트/기본공구류

옵션 선택부품

-심압대 센타 척 : 3만

-미국식 툴 셋팅장치 : 18만

-고정방진구 : 4만

-이동방진구: 3만

-스텐드(경제형 15만/일반형 20만/고급형/25만)

-4본 단동척 200mm :15만

-DRO 2축 : 35만

-면판(FACE PLATE):3만

-절삭유 장치: 15만

-작업등(할로겐): 3만

-리드스크류 커버 : 4만

-롤링 센타 (라이브):3만


Product Description
BT280/CJM280 China Engine Lathe Mini Bench Hobby Metal Lathe
Features:
1.Induction harden bedway.
2.Enough strong power motor.
3.Euro-safety magnetic switch or lock key switch.
4.Widely useful,operation very easy,processing scope widespread.
5.Cost-efficient,precise andof stable value.
Model No.
BT280
Center distance
550/610/815mm
Max. Swing over bed
280mm
Max. Swing over cross slide
160mm
Spindle center height
140mm
Width of bed
150mm
Max. travel of cross slide
130mm
Max. travel of top slide
65mm
Spindle bore
26mm
Range of spindle speed
L80-H1600rpm
Tailstock stroke
MT3
Taper of tailstock quill
60mm
Motor
1100w
Packing case length/width /height
1500×614×647mm
Motor type
ordinary brush motor
Voltage/Frequency
Customer requested
Standard Accessories
Optional Accessories
3-jaw Chuck 125mm
4-jaw chuck(125mm)
MT3 Dead center
Follow rest
Change gear set
Steady rest
Wrench set
Face plate
Oil can
Cooling pump
Splash guard
Working lamp
Chip tray
Lead screw cover
Toolbox &tools
Quick change tool post

Rolling center

Stand
Detailed Images
Related Products
Product Description

Features:
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 80-1600rpm.
Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.

Model
CJM280
Swing over bed
280 mm
Center distance
500/750 mm
Swing over carriage
160 mm
Spindle bore
38 mm
Spindle taper
MT.5#
Swing over toolpost
140 mm
Longitudinal travel over toolpost
75 mm
Metric thread available
18
Metric thread range
0.20~3.5 mm
Inch thread available
34
Inch thread range
41/2~48 1/n″
Module thread available
16
Module thread range
0.20~1.75
Pitch thread available
24
Pitch thread range
16~120 /DP
Longitudinal feed on spindle toolpost
0.08~0.56 mm/r
Cross feed on spindle toolpost
0.04~0.28 mm/r
Tailstock sleeve travel
60 mm
Tailstock sleeve taper
MT.3#
Spindle speed step
8
Spindle speed range
90~1800 r/mim
Motor
750W 380V 50HZ (220V 50HZ)
Packing size
1450×650×1200
Products Show


​

CTC 280

00:52
01:00
CTC280 HIGH CONFIGURATION MANUAL BENCH LATHE

Mechanical Metal lathe machine CTC280 Manual lathe with DRO and Quick Tool ChangerMechanical Metal lathe machine CTC280 Manual lathe with DRO and Quick Tool ChangerMechanical Metal lathe machine CTC280 Manual lathe with DRO and Quick Tool ChangerMechanical Metal lathe machine CTC280 Manual lathe with DRO and Quick Tool ChangerMechanical Metal lathe machine CTC280 Manual lathe with DRO and Quick Tool ChangerMechanical Metal lathe machine CTC280 Manual lathe with DRO and Quick Tool ChangerMechanical Metal lathe machine CTC280 Manual lathe with DRO and Quick Tool ChangerMechanical Metal lathe machine CTC280 Manual lathe with DRO and Quick Tool ChangerMechanical Metal lathe machine CTC280 Manual lathe with DRO and Quick Tool ChangerMechanical Metal lathe machine CTC280 Manual lathe with DRO and Quick Tool Changer

3-jaw Chuck 125mm,MT3 Dead center,Change gear set,Wrench set,Oil can,Splash guard, Chip tray,Toolbox &tools.

Optional attachment

Item

Description

Pic

Price

BTL0001

tailstock chuck

USD 18.00

BTL0002

US quick chance toolpost

USD 137.00

BTL0003

Steady rest

USD 24.00

BTL0004

Following rest

USD 22.00

BTL0005

stand

USD 185.00

BTL0006

4 independent jaw chuck

USD 108.00

BTL0007

Face Plate

USD 24.00

BTL0008

2 Axis DRO

USD 300.00

BTL0009

Cooling system

USD 118.00

BTL0010

Working light

USD 28.00

BTL0011

Leadscrwe cover

USD 29.00

BTL0012

Rolling center

USD 20.00

BTL0013

Stand

USD 200.00


​


DAESANG MACHINE DEZHOU KOREA CORP. 덕주코리아 zip 150-961 #202 of 4 unit, 247, 1-ga, yangpyeong-dong, yeongdeungpo-gu,seoul, korea TEL:82-2-2068-3312 FAX:82-2-2068-3313 M:010-2845-4417 E-MAIL :sksea99@hanmail.net BLOG : http://blog.daum.net/sksea99 lathe www.dzjc.com / grinder www..sunnyfreeport.com



주요 추천 모델

280* 600 25파이/38파이 선택

320/330* 750/1000 주축경 38파이

360*1000 경제형 38파이/52파이 선택

400*1000 경제형

기본 가격 개념

소형 선반

100만원 부터 800만원

180*300

210*400/700 * 38파이도 있음

250*500/750

280*550/610/815

320*600

330*550/750

360*750/1000

400*1000 가격대

800만/1000만/1250만/1500만/1750만/2000만

베드폭 200/250/300/350/400MM

주축경 38/40/52/58/80/100파이

소형 선반 100만원 부터 800만원

180*300

210*400/700 * 38파이도 있음

250*500/750

280*550/610/815 BESTECH BT280

320*600

330*550/750

360*750/1000

400*1000 가격대 800만/1000만/1250만/1500만/1750만/2000만

베드폭 200/250/300/350/400MM

주축경 38/40/52/58/80/100파이

모터 마력/기계중량/기타 스펙 변화




1) 선반 밀링 드릴링 복합기

MPV 290*700 38파이 견실형

HQ400/500 가공범위 확대형

super mini lathe

00:25
04:29

7" X 12" Variable-speed Metal Lathe With A Movable Lamp & 9 Cutters & 1x 4-Jaw Chuck

German lathes small bench table lathe machine for home using

German lathes small bench table lathe machine for home using

Product Description

Our Precision Mini Benchtop Lathe is by far-and-away the best spec mini-lathe for the money. With this lathe you will get a superb workhorse, a guarantee and a full after sales service. The 7 x 12 Inch lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor. 0-2250RPM continuously adjustable. 1x free lamp, 1x 4-Jaw Independent Chuck, 1x Quick Change Tool Post Set and 4x Engineers Measuring Kit for free.

  • Sturdy Iron Construction
  • Infinitely Variable Speeds
  • Accurate 3-jaw Chuck
  • Professional Compound Rest

Features & Details
1. STURDY IRON CONSTRUCTION:
The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splashguard provides maximum protection.
2. INFINITELY VARIABLE SPEEDS:
0-2250RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The handness and accuracy of the v-slideways are obtained by raw material, heat hardening and grinding. Emergency stop buttom included.
3. ACCURATE 3-JAW CHUCK:
Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm. A free lamp, 1x 4-Jaw Independent Chuck, 1x Quick Change Tool Post and 4x Engineers Measuring Kit are included.
4.PROFESSIONAL COMPOUND REST:
The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
5.WIDE APPLICATION:

Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works. 9 Cutters for easy replacement.

Application

· Suitable for turnings of metal, wood, jade, etc.

· Ideal for use in labs, workshops, engineering and education.

· Can be turned within foreign aid, turning thread, turning taper and so on.

Key Features

  1. Heavy & Sturdy Machine

    Features a 7 inch swing over bed, 11.81 inch distance between centers and 20mm spindle bore. Includes a thread range of 12-52 TPI, standard and metric handwheel graduations.

  2. Infinitely Variable Speeds

    Variable speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.

  3. High Accuracy Chuck

    3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm. One free 4-Jaw Independent Chuck for you.

  4. Four-way Tool Post

    T-slotted compound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever. 1x free Quick Change Tool Post Set.

  5. Professional Cross Slide

    Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 300mm(11.81"). A lamp is for acurate operation in a dark environment.

  6. Wide Applications

    Suitable for processing jobs, like counter face turning, driling, threading and cutting jobs on materials made up of round bar. All accessories are well packed.

Specifications:

  • Power of Motor: 550W DC Single Phase
  • Spindle Speed: 0-2250PRM
  • Swing Over Bed: 180mm(7.09")
  • Chuck Diameter: 80mm(3.15")
  • Centers Distance: 300mm(11.81")
  • Spindle Bore: 21mm(0.83")
  • Inch Thread: 12-52 T.P.I
  • Metric Thread: 0.4-2mm
  • Tail Stock Taper: MT2
  • Spindle Taper: MT3
  • Gear Material: Plastic Nylon
  • Power Source: Electric
  • Control: Manual
  • Machine Type: Metal Lathe
  • Treated Material: Metal
  • Net Weight: 50kg(110.23 lb)

  • Package size:81*31*34CM

Package

  • 1 x Mini Metal Lathe
  • 1 x Lamp
  • Some Related Accessories
  • 1 x Manual

German lathes small bench table lathe machine for home using

Photos

German lathes small bench table lathe machine for home usingGerman lathes small bench table lathe machine for home usingGerman lathes small bench table lathe machine for home usingGerman lathes small bench table lathe machine for home usingGerman lathes small bench table lathe machine for home usingGerman lathes small bench table lathe machine for home using

Attention:

1.Read the manual carefully before open the package
2.Make sure the machine is leveled before Power on the machine.
3.Make sure that the gap between the middle plate or guide is moderate, not too small.Moving the plate by swiving the wheel to make sure the plate can move smoothly
4. .Before starting up, make sure that the voltage is within the working voltage range(230V /- 10% or 120V /- 10% base on the products you bought ).
5. The cutting amount should be controlled within 1.5 mm for steel or iron , 3 mm for Alumium or copper to prevent damage of the motor or the motor circuit board due to overload.

Factory and shipping


CJ18A 7x14 Mini Lathe Blue Accessory Package Tooling Bench Top Cutter

Premier quality CJ18A mini lathe with accessory package for sale! This set will be a perfect choice for anyone starting to set up a workshop or if you are new to metalwork as this set includes the main items you’ll need.
This listing includes the following accessories:
Fixed and traveling steadies, tail stock chuck, live centre, quick change tool post, 100mm independent chuck, 9 piece indexable Tin coated lathe tools (high quality) & 4pc engineers' measuring kit (including caliper
and outside micrometer).
Features
* 100mm (4") chuck.
* 350mm (14") between centers, 550W powerful motor.
* Digital readout of spindle speed, tailstock lever lock.
* Brand new machine and accessories from manufacturer.
* Ideal for both professionals and green hands.
* With purchasement of this lathe set, you will get a superb workhouse with brilliant after sales service.
* Specifications should be treated as a guide as there can sometimes be a small variance from the quoted details.

Feature

*350mm (14") between centers, 180mm (7") swing over bed.
*Digital readout of spindle speed, tailstock lever lock.
*Brand new machine and accessories from manufacturer.
*Ideal for both professionals and green hands.
*Good quality, brilliant after sales service. 2-year free warranty.
Specifications
Power:
550W, 220V
Distance Between Centers :
350mm (14")
Swing Over Bed:
180mm (7")
Swing Over Cross Slide:
110mm (4.3")
Taper:
MT3
Tailstock Taper:
MT2
Chuck Diameter:
100mm (3.9")
Spindle Speed:
50-2500rpm
Spindle Bore:
21mm (0.8")
Cross Slide Travel:
65mm (2.6")
Chuck Diameter:
100mm (3.9") (Integral spindle plate is 100mm and can take 3 or 4 jaw chucks-no adapter plate required)
Range of Metric Threads:
0.5-2.5mm (0.02"-0.1")
Range of Imperial Threads:
12-52 TPI
Spindle Accuracy:
0.01mm
Actual Lathe Dimensions:
77*32*29cm (30"*13"*12")
Package Content
* 1 X CJ18A Mini Lathe
* 1 X Oil Can
* 1 X Set of External Jaw
* 1 X Set of Accessories Shown on Pictures
* 9 X Indexable Tin Coated Lathe Tools
* 1 X Operation Manual
* 1 X Rear Splash Guard
* 1 X Set of Spanner
* 1 X Set of Hex Keys
Other Model
Model
MX180V
MX210D/S
MX250D/S
Power
600W, 110V/60Hz
750W,220V
750W
Distance Between Centers
12" (300mm)
400/700mm
500/750mm
Swing Over Bed
7" (180mm)
210mm
250mm
Swing Over Cross Slide
4" (95mm)
110mm
150mm
Width of Bed
4" (100mm)
100mm
100mm
Taper of Spindle Bore
MT3
MT3
MT4
Spindle Bore
1inch (21mm)
21mm
26mm
Range of Spindle Speeds
50-2500RPM
50-2500RPM
80-1600RPM(12)
Range of Longitudinal Feeds
0.08-0.16mm
0.08-0.16mm
0.03-0.275mm
Range of Threads
10-44T.P.I (0.5-3mm)
10-44T.P.I (0.5-3mm)
0,25-2.5mm
Top Slide Travel
2" (55mm)
55mm
55mm
Cross Slide Travel
3" (75mm)
75mm
75mm
Tailstock Quill Travel
2.5" (60mm)
60mm
60mm
Taper of Tailstock Quill
MT2
MT2
MT3
Gross Weight
68kg (149.6lbs)
80/95kg (176lbs)
163/180kg
Package Dimensions
(L*W*H)
780*480*420mm
(31"*19"*17")
900*480*480mm (35.4"*19"*19")
1200*620*600mm
Details Images

Precise Engineering

This power metal lathe's high-precision 4-inch 3-jaw chuck handles both square and round objects with equal aplomb. It's especially suitable for jobs requiring high accuracy, such as threading.

Variable Speeds

The milling machine can adjust the speed from 0-2500rpm by the knob. Spindle adjustable rate for multiple workings

User-friendly Design

The aluminum handwheel is more durable. A digital display screen is convenient for you to follow up the processing. LED light can help you finish the work in gloomy places.

Large Working Capacity

This metal working lathe provides a 7.09"/180mm swing over bed and 13.78"/350mm center distance so that you can manage more extensive projects.

Complete Accessory Set

The lathe machine is equipped with a foot stock, which supports the longitudinal rotary axis of a workpiece that you are going to process.

Wide Application

The mini lathe is designed for turning, drilling, and threading. It is widely used in metal taper, and slot turning, screw
threading.
Recommend Products
Recommended by seller

1) 선반 밀링 드릴링 복합기

MPV 290*700 38파이 견실형

HQ400/500 가공범위 확대형


Product Description

Manual Lathe Features:

1) High precision spindle.
2) More popular, widely useful variable speed lathe.
3) Induction harden precision bedway.
4) Powerful, maintenance-free motor.
5) Gear head, low noise.

Specification for MPV290
Distance between centers
700mm
Swing over bed
290mm
Swing over cross slide
165mm
Spindle taper
MT5
Width of bed
180mm
Spindle bore
38mm
Range of spindle speeds(variable speed)
80-2000rpm
Range of cross feed
0.01-0.10mm /rev
Range of longitudinal feed
0.085-0.832mm/rev
Range of inch threads
8-56T.P.I
Range of metric threads
0.2 -3.5mm
Top slide travel
70mm
Cross slide travel
160mm
Tailstock quill travel
70mm
Taper of tailstock quill
MT3
Main motor
1.5kw
Drilling and milling head
BF20
Spindle taper
MT2
Spindle travel
52mm
Range of spindle speeds(variable speed)
50-2250rpm
Max.distance from spindle nose to table
380mm
Max.distance from spindle to columm
190mm
Motor power
750w
Packing size(for machine)
1450X700X1040mm
Packing size(for stand)
800X580X415mm
N.W
325kgs
Detailed Images
Product Description


Features:


Turning,milling,drilling and treading
Metric or imperial thread cutting
Suitable for processing metal,wood and other materials
Excellent advantage of various functions,small occupation and economic
Specification
HQ400
MP500
Max. Swing over bed
420mm
420mm
Max. Distance between centers
400mm
500mm
Max. longitudinal travel
380mm
400mm
Max. cross travel
120mm
200mm
Spindle taper
MT3
MT4
Spindle bore
20mm
φ28mm
Step of spindle speed
3 steps
7 steps
Range of spindle speed
500.900.1600rpm
160-1360rpm
Barrel travel
70mm
70mm
Barrel taper
MT3
MT3
Max. drilling capacity
20mm
φ22mm
Worktable size (L×W)
200*150mm
475×160mm
Max. end mill
20mm
φ28mm
Max. face mill
63mm
φ80mm
Spindle taper
MT3
MT3
Step of spindle speed
6 steps
16steps
Range of spindle speed
375-1600rpm
120-3000rpm
Swivel degree of headstock
±360°
±360°
Motor power
0.55kw
0.75kw
Packing size
1030*580*1070mm
1130×580×1100mm
N.W/G.W
155/185kgs
245/280kgs

DAESANG MACHINE DEZHOU KOREA CORP. 덕주코리아 zip 150-961 #202 of 4 unit, 247, 1-ga, yangpyeong-dong, yeongdeungpo-gu,seoul, korea TEL:82-2-2068-3312 FAX:82-2-2068-3313 M:010-2845-4417 E-MAIL :sksea99@hanmail.net BLOG : http://blog.daum.net/sksea99 lathe www.dzjc.com / grinder www..sunnyfreeport.com


중국 선반의 모든 것 덕주코리아 제공

수평선반/수직선반

1. 초소형 탁상선반

(동일가격으로 해외직구 상담 컨설팅 지원)

2. 소형선반/중형선반/대형선반

(가성비 높은 모델 선정 추천/부담없는 가격제공)

3. 대주축경 선반

(이왕이면 다홍치마 대주축경 선반 구득 생산성 제고)

4. 장축선반

(18 METER 선반 기공급)

5. 초 강력반

(중국 덕주선반 초강력반 세계시장 선도)

6. 디프홀 보링바/연마장치 장착선반

(선반추가 기능 보완 가공효율성제고)

7. 오방구 선반

부담없는 가격으로 신품 가격 제공

8. 대형 선반 척

9. 선반 옵션 추가 필요부품

10 . 덕주선반( 중국 선반) A/S 부품 공급

*** 수직선반도 전 세계시장 선도 합니다

​중국 덕주 선반의 모든 것 둘러보기

1. 중국 선반 선도업체 (덕주기상창 www.dzjc.com)

동 홈페이지에서 하기 선반 추천

가. 소형선반 특징 주축경 대주축경 102파이

기본스펙 500*1000/1500

나. 중형선반 대주축경 120파이

기본스펙 630*1500/2000

다. 스크류 가공 장축선반

스윙 800/1000* 4000/6000/8000/10000

라. 대형선반

스윙 1000/1250/1400/1600/2000/2500/3500/5000

길이 1M- 25M


DAESANG MACHINE DEZHOU KOREA CORP.   TEL:82-2-2068-3312

M:010-2845-4417  E-MAIL :sksea99@daum.net

CHINA DEZHOU  PRECION www.dzjc.com GRINDER www.sunnyfreeport.com

중국 선반/밀링기/연마기

해외직구 구입관련 길잡이 안내

덕주코리아 - 중국 공작기계 취급전문( 30여년 취급경험)

덕주코리아와 협의를 통해   좋은 구매 결과를 얻으시기  바랍니다

이왕이면  좀 더  우수한 메이커  것을 선정

사후관리도  원활한 것으로

제대로 필요한 부품  사전에 기계구매시 동시 확보

중고 가치가  계속 높게 유지되는  것으로

이미 성능과 품질이 정평이  나  있는  것으로

심층 파악

선반 주축경이 큰 대주축경 선반

밀링 소형 밀링기  /1.5호기 밀링/양두밀링

연마기소형 평면연마기/칼날연마기/공구 연마기

래디얼 40*1300/50*1600/63*2000

와이어컷팅기/레이져가공기

프레스/절곡기 /파이프 밴딩기


소형 선반/밀링기/연마기 및 기타

* 복합기도 공급됨

밀링기 : 소형 탁상/1.5호기/공무용 밀링기 (중대형)

연마기 : 평면연마기/칼날(평날)연마기/공구연마기/원통연마기



1. 소형선반 (탁상용포함)

소형 선반

180*300

210*400/700 * 38파이도  있음

250*500/750

280*550/610/815 BESTECH BT280

320*600

330*550/750

360*750/1000

400*1000  약  5가지 층이 있음

베드폭 200/250/300/350/400MM

주축경 38/40/52/58/80/100파이

모터  마력/기계중량/기타 스펙 변화


1) 선반 밀링 드릴링 복합기

MPV 290*700 38파이 견실형

HQ400/500 가공범위 확대형

super  mini lathe

00:25
04:29

7" X 12" Variable-speed Metal Lathe With A Movable Lamp & 9 Cutters & 1x 4-Jaw Chuck

 German lathes small bench table lathe machine for home using

German lathes small bench table lathe machine for home using

Product Description



Our Precision Mini Benchtop Lathe is by far-and-away the best spec mini-lathe for the money. With this lathe you will get a superb workhorse, a guarantee and a full after sales service. The 7 x 12 Inch lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor. 0-2250RPM continuously adjustable. 1x free lamp, 1x 4-Jaw Independent Chuck, 1x Quick Change Tool Post Set and 4x Engineers Measuring Kit for free.

  • Sturdy Iron Construction
  • Infinitely Variable Speeds
  • Accurate 3-jaw Chuck
  • Professional Compound Rest

Features & Details
1. STURDY IRON CONSTRUCTION:
The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splashguard provides maximum protection.
2. INFINITELY VARIABLE SPEEDS:
0-2250RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The handness and accuracy of the v-slideways are obtained by raw material, heat hardening and grinding. Emergency stop buttom included.
3. ACCURATE 3-JAW CHUCK:
Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm. A free lamp, 1x 4-Jaw Independent Chuck, 1x Quick Change Tool Post and 4x Engineers Measuring Kit are included.
4.PROFESSIONAL COMPOUND REST:
The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
5.WIDE APPLICATION:

Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works. 9 Cutters for easy replacement.

Application

· Suitable for turnings of metal, wood, jade, etc.

· Ideal for use in labs, workshops, engineering and education.

· Can be turned within foreign aid, turning thread, turning taper and so on.

Key Features

  1. Heavy & Sturdy Machine

    Features a 7 inch swing over bed, 11.81 inch distance between centers and 20mm spindle bore. Includes a thread range of 12-52 TPI, standard and metric handwheel graduations.

  2. Infinitely Variable Speeds

    Variable speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.

  3. High Accuracy Chuck

    3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm. One free 4-Jaw Independent Chuck for you.

  4. Four-way Tool Post

    T-slotted compound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever. 1x free Quick Change Tool Post Set.

  5. Professional Cross Slide

    Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 300mm(11.81"). A lamp is for acurate operation in a dark environment.

  6. Wide Applications

    Suitable for processing jobs, like counter face turning, driling, threading and cutting jobs on materials made up of round bar. All accessories are well packed.

Specifications:

  • Power of Motor: 550W DC Single Phase
  • Spindle Speed: 0-2250PRM
  • Swing Over Bed: 180mm(7.09")
  • Chuck Diameter: 80mm(3.15")
  • Centers Distance: 300mm(11.81")
  • Spindle Bore: 21mm(0.83")
  • Inch Thread: 12-52 T.P.I
  • Metric Thread: 0.4-2mm
  • Tail Stock Taper: MT2
  • Spindle Taper: MT3
  • Gear Material: Plastic Nylon
  • Power Source: Electric
  • Control: Manual
  • Machine Type: Metal Lathe
  • Treated Material: Metal
  • Net Weight: 50kg(110.23 lb)

  • Package size:81*31*34CM

Package

  • 1 x Mini Metal Lathe
  • 1 x Lamp
  • Some Related Accessories
  • 1 x Manual

German lathes small bench table lathe machine for home using

Photos

German lathes small bench table lathe machine for home usingGerman lathes small bench table lathe machine for home usingGerman lathes small bench table lathe machine for home usingGerman lathes small bench table lathe machine for home usingGerman lathes small bench table lathe machine for home usingGerman lathes small bench table lathe machine for home using

Attention:

1.Read the manual carefully before open the package
2.Make sure the machine is leveled before Power on the machine.
3.Make sure that the gap between the middle plate or guide is moderate, not too small.Moving the plate by swiving the wheel to make sure the plate can move smoothly
4. .Before starting up, make sure that the voltage is within the working voltage range(230V /- 10% or 120V /- 10% base on the products you bought ).
5. The cutting amount should be controlled within 1.5 mm for steel or iron , 3 mm for Alumium or copper to prevent damage of the motor or the motor circuit board due to overload.



Factory and shipping


CJ18A 7x14 Mini Lathe Blue Accessory Package Tooling Bench Top Cutter

Premier quality CJ18A mini lathe with accessory package for sale! This set will be a perfect choice for anyone starting to set up a workshop or if you are new to metalwork as this set includes the main items you’ll need.
This listing includes the following accessories:
Fixed and traveling steadies, tail stock chuck, live centre, quick change tool post, 100mm independent chuck, 9 piece indexable Tin coated lathe tools (high quality) & 4pc engineers' measuring kit (including caliper
and outside micrometer).
Features
* 100mm (4") chuck.
* 350mm (14") between centers, 550W powerful motor.
* Digital readout of spindle speed, tailstock lever lock.
* Brand new machine and accessories from manufacturer.
* Ideal for both professionals and green hands.
* With purchasement of this lathe set, you will get a superb workhouse with brilliant after sales service.
* Specifications should be treated as a guide as there can sometimes be a small variance from the quoted details.

Feature

*350mm (14") between centers, 180mm (7") swing over bed.
*Digital readout of spindle speed, tailstock lever lock.
*Brand new machine and accessories from manufacturer.
*Ideal for both professionals and green hands.
*Good quality, brilliant after sales service. 2-year free warranty.
Specifications
Power:
550W, 220V
Distance Between Centers :
350mm (14")
Swing Over Bed:
180mm (7")
Swing Over Cross Slide:
110mm (4.3")
Taper:
MT3
Tailstock Taper:
MT2
Chuck Diameter:
100mm (3.9")
Spindle Speed:
50-2500rpm
Spindle Bore:
21mm (0.8")
Cross Slide Travel:
65mm (2.6")
Chuck Diameter:
100mm (3.9") (Integral spindle plate is 100mm and can take 3 or 4 jaw chucks-no adapter plate required)
Range of Metric Threads:
0.5-2.5mm (0.02"-0.1")
Range of Imperial Threads:
12-52 TPI
Spindle Accuracy:
0.01mm
Actual Lathe Dimensions:
77*32*29cm (30"*13"*12")
Package Content
* 1 X CJ18A Mini Lathe
* 1 X Oil Can
* 1 X Set of External Jaw
* 1 X Set of Accessories Shown on Pictures
* 9 X Indexable Tin Coated Lathe Tools
* 1 X Operation Manual
* 1 X Rear Splash Guard
* 1 X Set of Spanner
* 1 X Set of Hex Keys
Other Model
Model
MX180V
MX210D/S
MX250D/S
Power
600W, 110V/60Hz
750W,220V
750W
Distance Between Centers
12" (300mm)
400/700mm
500/750mm
Swing Over Bed
7" (180mm)
210mm
250mm
Swing Over Cross Slide
4" (95mm)
110mm
150mm
Width of Bed
4" (100mm)
100mm
100mm
Taper of Spindle Bore
MT3
MT3
MT4
Spindle Bore
1inch (21mm)
21mm
26mm
Range of Spindle Speeds
50-2500RPM
50-2500RPM
80-1600RPM(12)
Range of Longitudinal Feeds
0.08-0.16mm
0.08-0.16mm
0.03-0.275mm
Range of Threads
10-44T.P.I (0.5-3mm)
10-44T.P.I (0.5-3mm)
0,25-2.5mm
Top Slide Travel
2" (55mm)
55mm
55mm
Cross Slide Travel
3" (75mm)
75mm
75mm
Tailstock Quill Travel
2.5" (60mm)
60mm
60mm
Taper of Tailstock Quill
MT2
MT2
MT3
Gross Weight
68kg (149.6lbs)
80/95kg (176lbs)
163/180kg
Package Dimensions
(L*W*H)
780*480*420mm
(31"*19"*17")
900*480*480mm (35.4"*19"*19")
1200*620*600mm
Details Images

Precise Engineering

This power metal lathe's high-precision 4-inch 3-jaw chuck handles both square and round objects with equal aplomb. It's especially suitable for jobs requiring high accuracy, such as threading.

Variable Speeds

The milling machine can adjust the speed from 0-2500rpm by the knob. Spindle adjustable rate for multiple workings

User-friendly Design

The aluminum handwheel is more durable. A digital display screen is convenient for you to follow up the processing. LED light can help you finish the work in gloomy places.

Large Working Capacity

This metal working lathe provides a 7.09"/180mm swing over bed and 13.78"/350mm center distance so that you can manage more extensive projects.

Complete Accessory Set

The lathe machine is equipped with a foot stock, which supports the longitudinal rotary axis of a workpiece that you are going to process.

Wide Application

The mini lathe is designed for turning, drilling, and threading. It is widely used in metal taper, and slot turning, screw
threading.
Recommend Products
Recommended by seller

1) 선반 밀링 드릴링 복합기

MPV 290*700 38파이 견실형

HQ400/500 가공범위 확대형


Product Description

Manual Lathe Features:

1) High precision spindle.
2) More popular, widely useful variable speed lathe.
3) Induction harden precision bedway.
4) Powerful, maintenance-free motor.
5) Gear head, low noise.

Specification for MPV290
Distance between centers
700mm
Swing over bed
290mm
Swing over cross slide
165mm
Spindle taper
MT5
Width of  bed
180mm
Spindle bore
38mm
Range of spindle speeds(variable speed)
80-2000rpm
Range of cross feed
0.01-0.10mm /rev
Range of longitudinal feed
0.085-0.832mm/rev
Range of inch threads
8-56T.P.I
Range of metric threads
0.2 -3.5mm
Top slide travel
70mm
Cross slide travel
160mm
Tailstock quill travel
70mm
Taper of tailstock quill
MT3
Main motor
1.5kw
Drilling and milling head
BF20
Spindle taper
MT2
Spindle travel
52mm
Range of spindle speeds(variable speed)
50-2250rpm
Max.distance from spindle nose to table
380mm
Max.distance from spindle to columm
190mm
Motor power
750w
Packing size(for machine)
1450X700X1040mm
Packing size(for stand)
800X580X415mm
N.W
325kgs
Detailed Images
Product Description


Features:


Turning,milling,drilling and treading
Metric or imperial thread cutting
Suitable for processing metal,wood and other materials
Excellent advantage of various functions,small occupation and economic
Specification
HQ400
MP500
Max. Swing over bed
420mm
420mm
Max. Distance between centers
400mm
500mm
Max. longitudinal travel
380mm
400mm
Max. cross travel
120mm
200mm
Spindle taper
MT3
MT4
Spindle bore
20mm
φ28mm
Step of spindle speed
3 steps
7 steps
Range of spindle speed
500.900.1600rpm
160-1360rpm
Barrel travel
70mm
70mm
Barrel taper
MT3
MT3
Max. drilling capacity
20mm
φ22mm
Worktable size (L×W)
200*150mm
475×160mm
Max. end mill
20mm
φ28mm
Max. face mill
63mm
φ80mm
Spindle taper
MT3
MT3
Step of spindle speed
6 steps
16steps
Range of spindle speed
375-1600rpm
120-3000rpm
Swivel degree of headstock
±360°
±360°
Motor power
0.55kw
0.75kw
Packing size
1030*580*1070mm
1130×580×1100mm
N.W/G.W
155/185kgs
245/280kgs

320* 750


선반 CJM 320 *750

Product Description

Machine Features:

1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 9-1800rpm.
6. Two different lengths of bed are available.
7. With or without cabinet according to requirement.

Specification
CJM320C
Max. swing over the bed
320mm
Max. length of work piece
500/750mm
Max. swing over cross slide
180mm
Max. cross slide travel
160mm
Max. longitudinal stroke over tool post:
75mm
Spindle bore
38mm
Spindle taper
MT5
Spindle speeds range
8 steps: 90-1800r/min
Metric thread kinds
18
Metric pitches
0.20-3.5mm
Inch threads kinds
34
Inch pitches
41/2-48 1/n''
Longitudinal-feed range
0.08-0.56mm/r
Cross-feedrange
0.04-0.28mm/r
Tailstock quill travel
60mm
Tailstock quill taper
MT3
Motor
1100W
N.W/G.W
300/350kg
Packing size: (L×W×H)
1500*700*1300mm
Detailed Images



1. 초소형  탁상 밀링기

TM13 mini milling machine

(SPECIFICATIONS)



Drilling capacity

13mm

Max.end mill capacity

16mm

Max.face mill capacity

30mm

Headstock travel(Z)

180mm

Cross axis(X)

100mm

Longitudinal axis(Y)

220mm

Throat

170mm

Max.distance spindle to table

280mm

Head tilt

45°L,  45°R

Spindle taper

MT3 or R8

Motor output power

350W

Spindle speed   Low range /High range

100-1100RPM±10%/ 100-2500RPM±10%

Table effective size

390×92mm

T-slot size

12mm

Net weight/Gross weight

50kg/68kg

Packing size

520×520×730mm

PRODUCT SPECIFICATIONS
13Max. Drilling Diamter
13mm
Max. Face Milling Capacity
30mm
Max. Vertical Milling Capacity
16mm
Worktable Size
485×110mm
T-slots Size
12mm
X-Axis Travel
300mm
Y-Axis Travel
130mm
Z-Axis Travel
180mm
Spindle Taper
MT3/R8
Spindle Incline Angle
±45°
Spindle Speed (Variable Speed)
50-2500mm
Motor Power
600W
N.W./G.W.
62kg/80kg
Packing size
550×550×735mm
FEATURES AT A GLANCE


2. 소형 벤치밀링

Product Description
Equipment technical features:
1. The working table can move vertically and horizontally.
2. The base is integral casting, the workpiece is more stable and the precision is higher!
3. With drilling, milling, boring, grinding, tapping, and other cutting functions of the machine.
4. The headstock can turn around 90° in the vertical plane.
5. The working table can turn around 45° in the horizontal plane
6. The worktable can automatically move the knife longitudinally to improve the processing
Specification
item
value
Condition
New
type
Drilling & Milling Machine
Max. Drilling Dia. (mm)
50
Range of Spindle Speed(r.p.m)
11r.p.m - 1750r.p.m
CNC or Not
Normal
Drilling Speed
115-1750
Place of Origin
China
Shandong
Brand Name
No.1 machine
Model Number
ZX50C
Voltage
110V/220V/380V/440V
Dimension(L*W*H)
1100*970*1650
Certification
CE/ISO
Power (kW)
1.5
Weight (KG)
500KG
Warranty
1 Year
Online support, Video technical support
Key Selling Points
Competitive Price
After Warranty Service
Video technical support, Online support
Local Service Location
China
Showroom Location
China
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor
Product name
Drilling and milling Machine
drilling a max.diameter
50
max.milling width
100
milling diameter
25
bore diameter
120
max.tapping diameter
M16
spindle taper hole
MT4
distance spindle nose to table
38-430
weight
500/600
dimensions
1100*970*1650

Product main technical specifications:

Specifications

ZX50A milling machine

ZX50C milling machine

Max. Drilling Dia. (mm)

50

50

Max. Horizontal Milling Dia.

100

100

Max. Vertical Milling Dia.

32

32

Max. Boring Dia.

100

100

Spindle Taper

MT4,R8

MT4,R8

Spindle Speeds Range

(5 step) 270-2400

(5 step) 115-1750

Spindle Travel

120

120

Table Size (mm)

800*240

800*240

Table Travel (mm)

400*230*380

400*230*380

Main Motor Power (KW)

1.5

0.85/1.5

N.W./G.W.(Kg)

460/540

470/550



 Standard Accessories:

 Work lamp
Cooling system

Milling Chuck

Drilling Chuck

Draw bar

Oil collecting plate
Tool & toolbox
 Reduction sleeve

Optional Accessories:

Power feed

3-axis Digital Reading

Turret Milling Head

Machine Vise

Dividing Head

Rotary Table
Clamping Kits


3. 소형 복합밀링

VERTICAL MILLING AND DRILLING MACHINE:
1. Uses standardized assemblies from the VH milling machine universal use as

milling machines and drill press
2. Easily shift able gear drive ensures power transmission without losses
3. With V-belt spindle drive and gear spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear,

easy activation of manual micro-feed for the  spindle quill

MODEL
ZX7550
ZX7550C
ZX7550W
ZX7550CW
Max.drilling dia  (mm)
50
50
50
50
Max.horizontal milling dia  (mm)
100
100
100
100
Max.vertical milling dia (mm)
25
25
25
25
Max.boring dia  (mm)
120
120
120
120
Max.tapping dia
M16
M16
M16(Vertical)
M16
Distance.spindle to table surface (mm)
140-490
90-490
80-460
90-490
Spindle speeds range (r.p.m)
230-1825
115-1750
230-1825(Vertical)
80-1300(horizontal)
(Vertical)115-1750
(Horizontal)60-1350
Spindle travel
120
120
120
120
Table size  (mm)
800×240
800×240
800x240
800×240
Table travel  (mm)
400×230
400×230
400x230
400×230
Overall dimensions  (mm)
1100×1100×2080
1100×1100×2080
1280×1100×2080
1280×1100×2080
Motor  (Kw)
0.85/1.5
0.85/1.5
0.85/1.5(Vertical)
1.1(horizontal)
( Vertical)0.85/
1.5 (horizontal)2.2
N.W/G.W (Kg)
610/770
610/770
700/880
850/1000

Item

TU60S

Spindle taper

R8/MT4/ISO30/ISO40

Distance from vertical spindle nose to table

70~420mm

Distance from horizontal spindle centerline to table

0-280mm

Distance from vertical spindle centerline to column

220-700mm

Distance from horizontal spindle centerline to ram bottom

170mm

Spindle speed range

(H)  8steps, 60-1350r.p.m                            (V) L:90-425r.p.m./H:425-2100r.p.m.

Swivel angle of milling head

±45°

Table size (L×W)

1000x240mm

Max.rotations angle of tadle

±45°

Table travel (X/Y/Z)

500x200x350mm

Table longitudinal & cross feed

4 steps, 7-42mm/min

Table vertical feed (Z)



X,Y-axis rapid feed speed

800mm/min

Z-axis rapid feed speed



Feed motor power

370w

Max.loading of worktable

200kgs

Table T-slots (No./Width/Pitch)

3/14mm/60mm

Z-axis guide way type

Dovetail

Y-axis guide way type

Dovetail

X-axis guide way type

Dovetail

Main motor power

(V)2.2KW  (H)1.5KW

Overall dimensions (L×W×H)

1290X1220X2100mm

Packing size (one/two sets)

114x134x222cm

N.W (one set)

850kgs


4. 1.5호기  밀링


Item

Unit
X6325
X6325A
X6325B
X6325C
X6325D
XU6325
Table size
mm
254x1270
250x1270
Longitudinal travel
mm
850
770
Cross travel
mm
400
400
Vertical travel
mm
400
400
T-slot
3x16
Distance from spindle nose to table
mm
0-400
Ram Travel
mm
470
Spindle taper
Standard: R8;
Optional: ISO30/ISO40
ISO40
R8
Spindle travel
mm
127
Spindle speed
Rpm
Standard: 16-steps, 66-5440
Optional: Variable 60-4200
Variable 60-3600
60-4200
Spindle feed
3-steps: 0.04/0.08/0.15 mm/rev
Main motor
kw
2.25/3HP
3.75/5HP
2.25/3HP
Head Swivel (Right-Left)
90°
Head Swivel (Front-Back)
45°
Single milers package
mm
1516x1550x2080
Weight
kg
1490

Standard Accessories

Plastic splashing guard
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Milling Chuck

Optional Accessories

Power feed
3-axis Digital Reading
Machine Vise
Clamp Kits
Variable milling head
Air drawbar
Dividing Head
Rotary Table

ZAY7040G vertical drilling & milling machine power feed==Main features

1. Gear-driven and round column

2. Milling, drilling, tapping, boring and reaming

3. Adjustable gibs on table precision

4. Strong rigidity, powerful cutting and precise positioning

5. Reversible spindle direction

6. Dovetail ways

7. Head tilts up to 90° left or right and swivels up to 360° around the column

ZAY7040G Vertical Drilling & milling machine

ZAY7040G vertical drilling & milling machine power feed==SPECIFICATION

SPECIFICATION



ITEM

ZAY7020G

ZAY7032G

ZAY7040G

ZAY7045G



Drilling capacity

20mm

32mm

40mm

45mm

Face milling capacity

63mm

63mm

80mm

80mm

End milling capacity

20mm

20mm

32mm

32mm

Distance from spindle nose to table

439mm

440mm

440mm

440mm

Min.distance from spindle axis to column

197.5mm

272.5mm

272.5mm

272.5mm

Spindle travel

85mm

130mm

130mm

130mm

Spindle taper

M.T.3 or R8

M.T.3 or R8

M.T.4 or R8

M.T.4 or R8

Step of spindle speed

6

6

6

6

Range of spindle speed    50Hz

95-1420 r.p.m

80-1250 r.p.m

80-1250 r.p.m

80-1250 r.p.m

                                      60Hz

115-1700 r.p.m

95-1500 r.p.m

95-1500 r.p.m

95-1500 r.p.m

Swivel angle of headstock(horizontally/perpendicularly)

    360°/±90°

   360°/±90°

    360°/±90°

   360°/±90°

Table size

520×160mm

800×240mm

800×240mm

800×240mm

Forward and backward travel of table

140mm

175mm

175mm

175mm

Left and right travel of table

290mm

500mm

500mm

500mm

Motor power

0.37KW

0.75KW(1HP)

1.1KW(1.5HP)

1.5KW(2HP)

Voltage/frequency

As customer's requirement

As customer's requirement

As customer's requirement

As customer's requirement

Net weight/gross weight

130kg/190kg

315kg/365kg

318kg/368kg

320kg/370kg

Packing size

680×750×1000mm

770×880×1160mm

770×880×1160mm

770×880×1160mm

Loading amount

48pcs/20'container

36pcs/20'container

36pcs/20'container

36pcs/20'container



ZAY7040G vertical drilling & milling machine power feed==Standard accessories

  1. Allen srench
  2. Wedge
  3. Tie rod

ZAY7040G vertical drilling & milling machine power feed==Optional accessories

  1. Drill chuck
  2. Milling cutter holder
  3. Mill chuck
  4. Power feed attachment
  5. Auto-tapping electrical
  6. Paraller vise
  7. Working lamp
  8. Coolat system
  9. Machine stand and chip tray
  10. Clamping kits

ZAY7040G vertical drilling & milling machine power feed==FACTORY AND OTHER

ZAY7040G Vertical Drilling & milling machineZAY7040G Vertical Drilling & milling machineZAY7040G Vertical Drilling & milling machine


1.Main Application and Applicable Scope

ZX7045 is used for drilling, milling,tapping and reaming on ferrous and non-ferrous materials, its max drilling capacity is 45mm, width of face milling is 80mm, diameter of vertical milling is 28mm, it is widely used in the machinery workshops,hardware, instrument and gauge industries, and repair workshops for single piece or mass production and so on.

2.Technical Parameters

Max drilling capacity45mm
Width of face milling80mm
Diameter of vertical milling28mm
Max tapping capacityM12
Spindle travel120mm
Distance spindle axis to column surface260mm
Distance spindle nose to worktable475mm
Taper of spindleMT.4
Spindle speeds6 steps
Spindle speeds range65、120、190、370、670、1380r/min
Travel of worktable (L×W)550×200mm
Size of worktable 820×240mm
Main motor 1100W, 910r/min
Outline dimension (L×W×H)1140×800×1040mm
Net/Gross weight320/370kg



Product Description



 Hot selling desktop milling machine,  manual scale slotter, mini slotting machine price



Feature:



1.This manual milling machine  is small and exquisite, also with beautiful appearance.



2.Good accuracy and stability, easy to operate.



3.Widely used in non-ferrous metals and plastics, plexiglass, wood sawing, milling, engraving, milling and other milling,  the above cutting can be done in any position.



4.Spindle arbor default 22MM, can be customized 16MM.







Specification:



M1514 desktop manual grooving machine





Table  size

335x130mm

Horizontal travel

110mm

Vertical travel

180mm

Lifting travel

180mm

Table rotation

-45 degree

Power

750W

Spindle speed series

3  level

Machine size

650x600x660mm

Weight

93kg

Spindle spee

610/1400/2700 r/min

T slot width

12mm

T-slot pitch

68mm



Product Overviews

 Hot selling desktop milling machine, manual scale slotter, mini slotting machine price





Hot selling desktop milling machine, manual scale slotter, mini slotting machine price





Hot selling desktop milling machine, manual scale slotter, mini slotting machine price



Hot selling desktop milling machine, manual scale slotter, mini slotting machine price



Hot selling desktop milling machine, manual scale slotter, mini slotting machine price



Product Display
Product name
Manual Surface Grinder Machine
MOQ
1set
Payment
L/C,T/T
Specification
Related Product

3.연마기

가.  미국OEM  PSG-206

Main features of   Mini tool surface grinding machine MJ7115 :

1)Integrated grinding head of high quality, high rigidity and accuracy.

2)Small size, light weight, easy operation & maintenance.3

3)Centralized lubrication for oil pump.

Specification and data of Mini tool surface grinding machine MJ7115

Specification

Metric

Inch(“)

Longitudinal stroke

340mm

14

Cross stroke

170mm

7

Vertical stroke

210mm

8

Table size(W*L)

152mm×304mm

6×12

Width of T-slot

1-12mm

1-0.47

Cross feed per graduation

0.02mm

0.001

Cross feed per round

2.54mm

0.1

Vertical feed per graduation

0.025mm

0.001

Vertical feed per round

1.25mm

0.05

Size of grinding wheel

180mm×32mm×13mm

Motor power

0.55kw

Roughness

1.6μm

N.W. / G.W. of machine

210/258kg

N.W. / G.W. of stand

30/54kg

Overal dimensions of machine

930×780×730mm

Case dimensions of machine

930×780×1480mm

Case dimensions of stand

720×550×550mm



The detailed parts of Mini tool surface grinding machine MJ7115

Metal surface grinding machine MJ7115

The package and workshop of  Mini tool surface grinding machine MJ7115

 Metal surface grinding machine MJ7115


DAESANG MACHINE DEZHOU KOREA CORP. 덕주코리아 zip 150-961 #202 of 4 unit, 247, 1-ga, yangpyeong-dong, yeongdeun

Regarding the grinder machine MJ7115, please check my reply as follows:

1、The machine change from lead screw model to ball guid model did not change the axis.
      Difference of between lead screw model and ball guid model just is guide different.
      please check the pictures show as follows:

           Lead screw model    ball guid model

     2、stand ：                                                                     3、  permanent  magnetic chuck , size : 150x300mm



4、Precision flat vise ：


X1415B 다기능 소형 탁상 가공기


 Hot selling desktop milling machine,  manual scale slotter, mini slotting machine price



Feature:



1.This manual milling machine  is small and exquisite, also with beautiful appearance.



2.Good accuracy and stability, easy to operate.



3.Widely used in non-ferrous metals and plastics, plexiglass, wood sawing, milling, engraving, milling and other milling,  the above cutting can be done in any position.



4.Spindle arbor default 22MM, can be customized 16MM.







Specification:



M1514 desktop manual grooving machine





Table  size

335x130mm

Horizontal travel

110mm

Vertical travel

180mm

Lifting travel

180mm

Table rotation

-45 degree

Power

750W

Spindle speed series

3  level

Machine size

650x600x660mm

Weight

93kg

Spindle spee

610/1400/2700 r/min

T slot width

12mm

T-slot pitch

68mm



Product Overviews

 Hot selling desktop milling machine, manual scale slotter, mini slotting machine price





Hot selling desktop milling machine, manual scale slotter, mini slotting machine price





Hot selling desktop milling machine, manual scale slotter, mini slotting machine price



Hot selling desktop milling machine, manual scale slotter, mini slotting machine price


Video Description
00:26
00:50
Multifunctional Horizontal Milling Machine.
Horizontal Milling machine is suitable for Folder-Mold, Automobile Accessory, Motor Industry, Plumbing parts, Electrical and other small parts manufacturing, especially for large volume manufacture equipment is preferred.
                            Left View
                              Front View
                                  Right View
NO.
Model
X1514B
1
Worktable Size(length * width )
325x130mm
2
Longitudinal Moving Distance
100mm
3
Horizontal Moving Distances
100mm
4
Spindle Vertical Moving Distances
180mm
5
Spindle Diameter for ftool
22mm
6
Spindle Speed Range
780--2480r/min
7
Angle of Worktable Revolution
0--180°
8
Motor Power
0.75kw
9
Motor Speed
1400r/min
10
Motor Voltage
380V
11
Overal Size
700x700x570mm
12
Net Weight
85kg



​덕주코리아 중국 공작기계 취급전문 상세안내

*중국  공작기계 취급30년이상(대만공작기계 병행취급 수십년)의  경험으로

공작기계나 산업기계 구매시  중국 기계 구입 조언 컨설팅 포함 실제 구매진행 컨설팅 제공합니다

과연

중국 덕주기상창(선반과  디프홀 가공기 선도기업) 한국총판및 아프터써비스  총괄 www.dzjc.com

중국 웨이다 기상창(밀링과 레디얼드릴링기 선도기업) www.weida-mc.com

중국 톱텍 레이져 용접기 서울지역 총괄  www.topteklaser.com (레이져 세척기/마킹기/컷팅기  일체)

중국 칼날연마기 www.hishengyang.com(모든  칼날연마기 제조 )

중국 1.5호기  밀링 www.huadongcnc.com (소형 연마기  포함)

중국 초소형 탁상연마기 www.jinxingjichuang.com (각종 소형 탁상 선반/밀링기포함)

중국 와이어  컷팅기 (www.teruimachine.com ) 몰리브덴 와이어  컷/흑연 와이어  컷

중국 프레스/절곡기/롤밴딩기 (www.ysdcnc.com)

중국 C형 고속프레스 www.goanwin.com

중국 알류미늄 컷팅기 www.sdmmcnc.com

중국 사출기 www.haitai-machine.com

중국 원통/롤연마기 www.smtw.com  소형 원통연마기 www.tbrkj.com TEBER CNC CYLINDRICAL  GRINDER

대만 써니연마기 www.sunnyfreeport.com (대만 평면연마기 최고급 초정밀/초대형  연마기 선도기업)

대만 산이글 특수전용기및 특수기계 www. saneagle.com.tw 모든 대만 공작기계종합취급


수직선반  경제형 www.dlhaidi.cn  고급형 www.fulltontech.com

양두밀링  www.amitmc.com JIAZHAO



DAESANG MACHINE DEZHOU KOREA CORP.   TEL:82-2-2068-3312

M:010-2845-4417  E-MAIL :sksea99@daum.net

CHINA DEZHOU  PRECION www.dzjc.com GRINDER www.sunnyfreeport.com







비슷한 제품
CNC 평면연삭기
PSG-208DX 평면연삭기
250 연삭기
UJG-35 지그 그라인더
커터 연삭기
견적 요청하기
견적 상세보기
