여기에마켓 제품 :: 덕주코리아

중국 신품 대주축경 선반 취급전문

문의 덕주코리아 010 2845 4417

주축경이 큰 대주축경 소형선반

500*1000 주축경 102파이

630*1500/2000 주축경 120파이/130파이/

190/220파이

800/1000*3000 270/330/450/550파이

중국 선반 심층 파악 자료 하기 참조 바랍니다

덕주코리아 중국 공작기계 취급전문 상세안내
*중국 공작기계 취급30년이상(대만공작기계 병행취급 수십년)의 경험으로
공작기계나 산업기계 구매시 중국 기계 구입 조언 컨설팅 포함 실제 구매진행 컨설팅 제공합니다
과연
중국 덕주기상창(선반과 디프홀 가공기 선도기업) 한국총판및 아프터써비스 총괄 www.dzjc.com
중국 웨이다 기상창(밀링과 레디얼드릴링기 선도기업) www.weida-mc.com
중국 톱텍 레이져 용접기 서울지역 총괄 www.topteklaser.com (레이져 세척기/마킹기/컷팅기 일체)
중국 칼날연마기 www.hishengyang.com(모든 칼날연마기 제조 )
중국 1.5호기 밀링 www.huadongcnc.com (소형 연마기 포함)
중국 초소형 탁상연마기 www.jinxingjichuang.com (각종 소형 탁상 선반/밀링기포함)
중국 와이어 컷팅기 (www.teruimachine.com ) 몰리브덴 와이어 컷/흑연 와이어 컷
중국 프레스/절곡기/롤밴딩기 (www.ysdcnc.com)
중국 C형 고속프레스 www.goanwin.com
중국 알류미늄 컷팅기 www.sdmmcnc.com
중국 사출기 www.haitai-machine.com
중국 원통/롤연마기 www.smtw.com 소형 원통연마기 www.tbrkj.com TEBER CNC CYLINDRICAL GRINDER
대만 써니연마기 www.sunnyfreeport.com (대만 평면연마기 최고급 초정밀/초대형 연마기 선도기업)
대만 산이글 특수전용기및 특수기계 www. saneagle.com.tw 모든 대만 공작기계종합취급

수직선반 경제형 www.dlhaidi.cn 고급형 www.fulltontech.com
양두밀링 www.amitmc.com JIAZHAO

중국 공작기계 현황파악* 대만 공작기계 특수 기계 (주로 연마기) 특별기종 견적도 제공함
가성비 우수한 공작기계 선정에 도움되는 많은 자료 제공

선반편

1.중국 선반 탐구 (디프홀 가공기 포함)
* 소형선반 해외직구 불편사항 해소
- 일부불량 상태 해소및 기능 수정보완사항및 사전 예비부품 확보
* 중국 선반 관련 모든 A/S 관련 사항 해결 상담 진행 가능
*특수기능 선반 신뢰있는 중국 메이커 선정
#대주축경 선반 #초대형 강력선반
중국 선반(디프홀기 포함)의 한국 시장 진출 30여년 산 증인 덕주코리아에서
그간의 경험을 토대로 보다 유익한 구매 포인트를 활용 구매시   유익한 정보를 제공합니다
함께/같이 서로 도움되는 자료를 공유 하며 상호 도움되는 여러 협조방안을 모색합니다
*해외직구 단독구매 하셔도 됩니다만
덕주코리아에 구매의뢰시
부담되지않는 가격으로 보다 많은 효과를  얻을수 있읍니다
1. 특별서류를 만들어 수입관세를 무관세로 처리 경비 절감
2. 무게와 규격이 있어 항공운송료가 비싼 경우 해상운송 도어투도어로 처리
3. 구매해당관련 부품/ 각종 기계부품 함께 수입하며 여러 경비 절감 가능
과연  중국선반 가성비가 높아 구매선택이 바람직한 선반 기종은 ??
가. 소형선반 (탁상용선반 포함)
나.다기능선반
다. 소형선반으로 주축경이 큰  대주축경 소형선반 주축경 80/100/120
라. 중형선반으로 대주축경 선반 주축경 105/120/130/190/220/270/350/400/550
마. 중형선반으로 장축가공선반 6M/8M/10M/12M
바. 대형선반으로 장축가공선반 12M/15M/18M/20M

중국 선반 관련 문의
덕주코리아 010 2845 4417
1. CNC 경제형선반
2. 범용선반 (소/중/대/초강력/초장축)
3. 대주축경 (주축경이 큰) 선반 범용/CNC
4. 파이프 가공선반
5.초소형/탁상선반/목공용선반

이왕이면 다홍치마 추천 (대주축경 선반 강추)
소형 선반이면서 주축경이 큰 대주축경 강추합니다
초소형 탁상선반 주축경 38/50파이
소형선반 400/430/460 주축경 80/100
소중형 560/630 주축경 105/120/130/190/220
중형 800/1000/1100 주축경 230/350/440/550

중국 덕주선반 상세안내 선반 종합 www.dzjc.com
1.대주축경 선반
주축경이 큰 대주축경 선반(소형/중형)
주축경 102파이 스윙 400mm/500mm*길이 1m-5m
주축경 120파이 스윙 630/710/800mm* 길이 1.5m-5m
주축경 130파이 스윙 630/800mm* 길이 1.5m-5m
주축경 150파이 스윙 630/800mm* 길이 1.5m-5m
주축경 200파이 스윙 630/800mm* 길이 1.5m-5m
주축경 220mm/270mm/310mm/350mm/440mm/550mm
2. 중형 장축선반
스윙 630/800* 4m/5m/6m/8m/10m/12m
3. 대형 선반
스윙 1000/1250/1400/1600/1800/2000/2500/3150/4000/5000mm
길이 1m-20m
가격 저렴하고 사용하기에 편리한 추천기종
1250/1400mm*6m
1600/1800mm*6m/8m
1800/2000mm*8m/10m/12m

선반과 디프홀기 중국 신품 -
덕주코리아 제공 문의 010 2845 4417
*각종 밀링과 드릴링기도 참조후 문의 바랍니다

선반
문의 덕주코리아 010 2845 4417
중국 덕주 기상창 홈페이지 www.dzjc.com 참조 (주요 생산 기종:선반과 디프홀기)

중국 덕주선반 상세안내 선반 종합 www.dzjc.com
1.대주축경 선반
주축경이 큰 대주축경 선반(소형/중형)
주축경 102파이 스윙 400mm/500mm*길이 1m-5m
주축경 120파이 스윙 630/710/800mm* 길이 1.5m-5m
주축경 130파이 스윙 630/800mm* 길이 1.5m-5m
주축경 150파이 스윙 630/800mm* 길이 1.5m-5m
주축경 200파이 스윙 630/800mm* 길이 1.5m-5m
주축경 220mm/270mm/310mm/350mm/440mm/550mm
2. 중형 장축선반
스윙 630/800/930/1000mm * 4m/5m/6m/8m/10m/12m
***특별추천 모델 1000*4500 주축경 160파이

3. 대형 선반
스윙 1000/1250/1400/1600/1800/2000/2500/3150/4000/5000mm
길이 1m-20m
가격 저렴하고 사용하기에 편리한 추천기종
1250/1400mm*6m
1600/1800mm*6m/8m
1800/2000mm*8m/10m/12m
선반/밀링/연마기/드릴링기
<선반과 선반 척 >
주요 추천선반기종
대형 장축선반 -가격 염가 공급
스윙 1250/1400/1600/2000* 6m/8m/10m/12m/15m/18m/20m
대주축경 선반 -주축경이 큰 선반 주안점 평가
주축경 160파이 스윙1030mm* 길이 4500mm 가격 5000만원
*주축경 특대형 선반 200/220/270/320/450/550 파이
스윙 630/800/1000* 길이 1500/2000/3000/4000/5000mm
*중형 장축선반
스윙 630/800/930/1000 * 길이 4m/5m/6m/7m/8m/10m
*부담없는 가격 중형선반
주축경 100/120/130파이 600/630/660mm* 길이 1500/2000/3000/4000/5000
소형선반의 모든 것
탁상선반250/300/320/400/460* 500/7500/1000/1500
*복합기능 선반 포함
수리부품 공급
중국 덕주선반/중국 모든 선반
선반 척 (3본/4본/마그네틱척/파이프 특수척)

중국 덕주 주요 생산기계 품목

선반과 디프홀기

중국 덕주 각 종 디프홀기 주요취급 안내

덕주코리아 문의 010 2845 4417
가격 만족 품질성능 만족 납기(신속정확) 만족

설치시운전 숙지훈련교육 철저한 처리

사후관리도 철저하게 수행처리 합니다

중국 출장상담을 통하여 보다 거래신뢰를 확실히 처리 합니다

T21100 deep hole drilling and boring machine

ZK2102X4 four spindle Gun Drill Machine
T2160 deep hole trepanning machine
TGK-Z Type Automatic CNC Deep Hole Skiving and Burnishing Machine
deep hole Honing Machine

문의 덕주코리아 010 2845 4417

이메일문의 : sksea99@daum.net
팩스문의 :0504 188 4417
WECHAT 문의 : skchungkorea ID
귀사 명함과 메일주소 포함 보내주시기 바랍니다

중국 선반/밀링기/연마기
해외직구 구입관련 길잡이 안내
덕주코리아 - 중국 공작기계 취급전문( 30여년 취급경험)
덕주코리아와 협의를 통해 좋은 구매 결과를 얻으시기 바랍니다
이왕이면 좀 더 우수한 메이커 것을 선정
사후관리도 원활한 것으로
제대로 필요한 부품 사전에 기계구매시 동시 확보
중고 가치가 계속 높게 유지되는 것으로
이미 성능과 품질이 정평이 나 있는 것으로
심층 파악
선반 주축경이 큰 대주축경 선반
밀링 소형 밀링기 /1.5호기 밀링/양두밀링
연마기소형 평면연마기/칼날연마기/공구 연마기
래디얼 40*1300/50*1600/63*2000
와이어컷팅기/레이져가공기
프레스/절곡기 /파이프 밴딩기

소형 선반/밀링기/연마기 및 기타
* 복합기도 공급됨
밀링기 : 소형 탁상/1.5호기/공무용 밀링기 (중대형)
연마기 : 평면연마기/칼날(평날)연마기/공구연마기/원통연마기

1. 소형선반 (탁상용포함)
소형 선반
180*300
210*400/700 * 38파이도 있음
250*500/750
280*550/610/815 BESTECH BT280
320*600
330*550/750
360*750/1000
400*1000 약 5가지 층이 있음
베드폭 200/250/300/350/400MM
주축경 38/40/52/58/80/100파이
모터 마력/기계중량/기타 스펙 변화

1) 선반 밀링 드릴링 복합기
MPV 290*700 38파이 견실형
HQ400/500 가공범위 확대형
super mini lathe
00:25
04:29
7" X 12" Variable-speed Metal Lathe With A Movable Lamp & 9 Cutters & 1x 4-Jaw Chuck

Product Description

Our Precision Mini Benchtop Lathe is by far-and-away the best spec mini-lathe for the money. With this lathe you will get a superb workhorse, a guarantee and a full after sales service. The 7 x 12 Inch lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor. 0-2250RPM continuously adjustable. 1x free lamp, 1x 4-Jaw Independent Chuck, 1x Quick Change Tool Post Set and 4x Engineers Measuring Kit for free.
Sturdy Iron Construction
Infinitely Variable Speeds
Accurate 3-jaw Chuck
Professional Compound Rest
Features & Details
1. STURDY IRON CONSTRUCTION:
The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splashguard provides maximum protection.
2. INFINITELY VARIABLE SPEEDS:
0-2250RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The handness and accuracy of the v-slideways are obtained by raw material, heat hardening and grinding. Emergency stop buttom included.
3. ACCURATE 3-JAW CHUCK:
Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm. A free lamp, 1x 4-Jaw Independent Chuck, 1x Quick Change Tool Post and 4x Engineers Measuring Kit are included.
4.PROFESSIONAL COMPOUND REST:
The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
5.WIDE APPLICATION:
Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works. 9 Cutters for easy replacement.
Application
· Suitable for turnings of metal, wood, jade, etc.
· Ideal for use in labs, workshops, engineering and education.
· Can be turned within foreign aid, turning thread, turning taper and so on.
Key Features
Heavy & Sturdy Machine
Features a 7 inch swing over bed, 11.81 inch distance between centers and 20mm spindle bore. Includes a thread range of 12-52 TPI, standard and metric handwheel graduations.
Infinitely Variable Speeds
Variable speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm. One free 4-Jaw Independent Chuck for you.
Four-way Tool Post
T-slotted compound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever. 1x free Quick Change Tool Post Set.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 300mm(11.81"). A lamp is for acurate operation in a dark environment.
Wide Applications
Suitable for processing jobs, like counter face turning, driling, threading and cutting jobs on materials made up of round bar. All accessories are well packed.
Specifications:
Power of Motor: 550W DC Single Phase
Spindle Speed: 0-2250PRM
Swing Over Bed: 180mm(7.09")
Chuck Diameter: 80mm(3.15")
Centers Distance: 300mm(11.81")
Spindle Bore: 21mm(0.83")
Inch Thread: 12-52 T.P.I
Metric Thread: 0.4-2mm
Tail Stock Taper: MT2
Spindle Taper: MT3
Gear Material: Plastic Nylon
Power Source: Electric
Control: Manual
Machine Type: Metal Lathe
Treated Material: Metal
Net Weight: 50kg(110.23 lb)
Package size:81*31*34CM
Package
1 x Mini Metal Lathe
1 x Lamp
Some Related Accessories
1 x Manual
Photos
Attention:
1.Read the manual carefully before open the package
2.Make sure the machine is leveled before Power on the machine.
3.Make sure that the gap between the middle plate or guide is moderate, not too small.Moving the plate by swiving the wheel to make sure the plate can move smoothly
4. .Before starting up, make sure that the voltage is within the working voltage range(230V /- 10% or 120V /- 10% base on the products you bought ).
5. The cutting amount should be controlled within 1.5 mm for steel or iron , 3 mm for Alumium or copper to prevent damage of the motor or the motor circuit board due to overload.

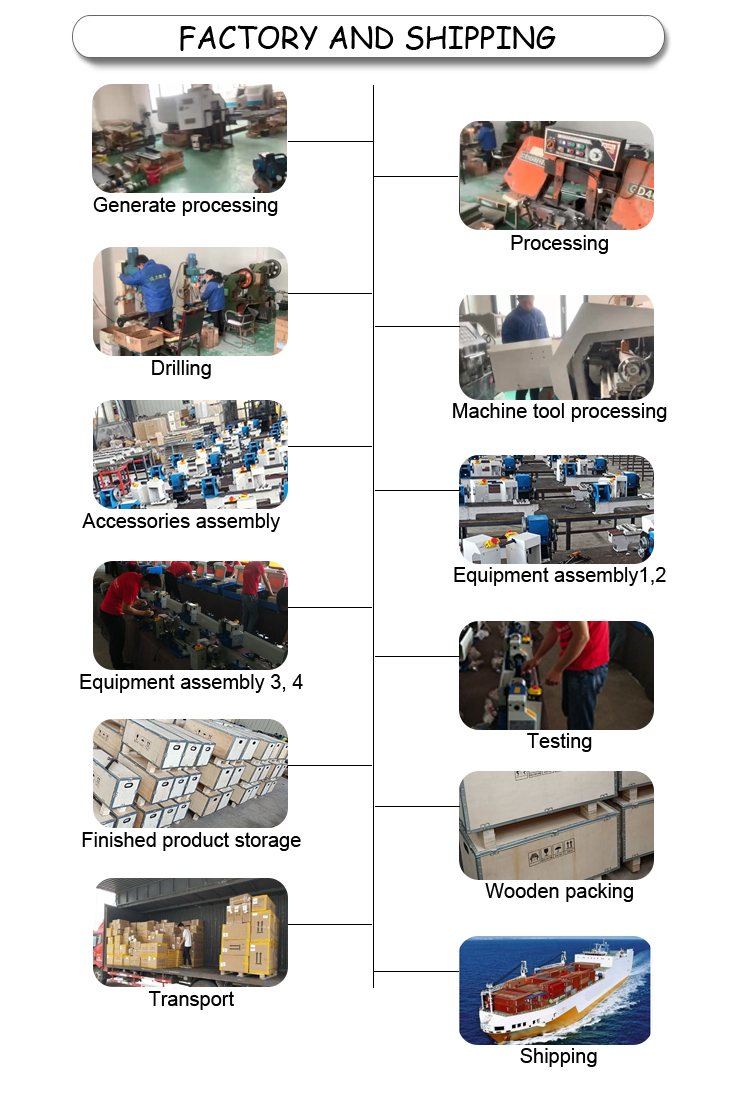

Factory and shipping

CJ18A 7x14 Mini Lathe Blue Accessory Package Tooling Bench Top Cutter
Premier quality CJ18A mini lathe with accessory package for sale! This set will be a perfect choice for anyone starting to set up a workshop or if you are new to metalwork as this set includes the main items you’ll need.
This listing includes the following accessories:
Fixed and traveling steadies, tail stock chuck, live centre, quick change tool post, 100mm independent chuck, 9 piece indexable Tin coated lathe tools (high quality) & 4pc engineers' measuring kit (including caliper
and outside micrometer).
Features
* 100mm (4") chuck.
* 350mm (14") between centers, 550W powerful motor.
* Digital readout of spindle speed, tailstock lever lock.
* Brand new machine and accessories from manufacturer.
* Ideal for both professionals and green hands.
* With purchasement of this lathe set, you will get a superb workhouse with brilliant after sales service.
* Specifications should be treated as a guide as there can sometimes be a small variance from the quoted details.
Feature
*350mm (14") between centers, 180mm (7") swing over bed.
*Digital readout of spindle speed, tailstock lever lock.
*Brand new machine and accessories from manufacturer.
*Ideal for both professionals and green hands.
*Good quality, brilliant after sales service. 2-year free warranty.
Specifications
Power:
550W, 220V
Distance Between Centers :
350mm (14")
Swing Over Bed:
180mm (7")
Swing Over Cross Slide:
110mm (4.3")
Taper:
MT3
Tailstock Taper:
MT2
Chuck Diameter:
100mm (3.9")
Spindle Speed:
50-2500rpm
Spindle Bore:
21mm (0.8")
Cross Slide Travel:
65mm (2.6")
Chuck Diameter:
100mm (3.9") (Integral spindle plate is 100mm and can take 3 or 4 jaw chucks-no adapter plate required)
Range of Metric Threads:
0.5-2.5mm (0.02"-0.1")
Range of Imperial Threads:
12-52 TPI
Spindle Accuracy:
0.01mm
Actual Lathe Dimensions:
77*32*29cm (30"*13"*12")
Package Content
* 1 X CJ18A Mini Lathe
* 1 X Oil Can
* 1 X Set of External Jaw
* 1 X Set of Accessories Shown on Pictures
* 9 X Indexable Tin Coated Lathe Tools
* 1 X Operation Manual
* 1 X Rear Splash Guard
* 1 X Set of Spanner
* 1 X Set of Hex Keys
Other Model
Model
MX180V
MX210D/S
MX250D/S
Power
600W, 110V/60Hz
750W,220V
750W
Distance Between Centers
12" (300mm)
400/700mm
500/750mm
Swing Over Bed
7" (180mm)
210mm
250mm
Swing Over Cross Slide
4" (95mm)
110mm
150mm
Width of Bed
4" (100mm)
100mm
100mm
Taper of Spindle Bore
MT3
MT3
MT4
Spindle Bore
1inch (21mm)
21mm
26mm
Range of Spindle Speeds
50-2500RPM
50-2500RPM
80-1600RPM(12)
Range of Longitudinal Feeds
0.08-0.16mm
0.08-0.16mm
0.03-0.275mm
Range of Threads
10-44T.P.I (0.5-3mm)
10-44T.P.I (0.5-3mm)
0,25-2.5mm
Top Slide Travel
2" (55mm)
55mm
55mm
Cross Slide Travel
3" (75mm)
75mm
75mm
Tailstock Quill Travel
2.5" (60mm)
60mm
60mm
Taper of Tailstock Quill
MT2
MT2
MT3
Gross Weight
68kg (149.6lbs)
80/95kg (176lbs)
163/180kg
Package Dimensions
(L*W*H)
780*480*420mm
(31"*19"*17")
900*480*480mm (35.4"*19"*19")
1200*620*600mm
Details Images
Precise Engineering
This power metal lathe's high-precision 4-inch 3-jaw chuck handles both square and round objects with equal aplomb. It's especially suitable for jobs requiring high accuracy, such as threading.
Variable Speeds
The milling machine can adjust the speed from 0-2500rpm by the knob. Spindle adjustable rate for multiple workings
User-friendly Design
The aluminum handwheel is more durable. A digital display screen is convenient for you to follow up the processing. LED light can help you finish the work in gloomy places.
Large Working Capacity
This metal working lathe provides a 7.09"/180mm swing over bed and 13.78"/350mm center distance so that you can manage more extensive projects.
Complete Accessory Set
The lathe machine is equipped with a foot stock, which supports the longitudinal rotary axis of a workpiece that you are going to process.
Wide Application
The mini lathe is designed for turning, drilling, and threading. It is widely used in metal taper, and slot turning, screw
threading.
Recommend Products
Recommended by seller
1) 선반 밀링 드릴링 복합기
MPV 290*700 38파이 견실형
HQ400/500 가공범위 확대형

Product Description
Manual Lathe Features:
1) High precision spindle.
2) More popular, widely useful variable speed lathe.
3) Induction harden precision bedway.
4) Powerful, maintenance-free motor.
5) Gear head, low noise.

Specification for MPV290
Distance between centers
700mm
Swing over bed
290mm
Swing over cross slide
165mm
Spindle taper
MT5
Width of bed
180mm
Spindle bore
38mm
Range of spindle speeds(variable speed)
80-2000rpm
Range of cross feed
0.01-0.10mm /rev
Range of longitudinal feed
0.085-0.832mm/rev
Range of inch threads
8-56T.P.I
Range of metric threads
0.2 -3.5mm
Top slide travel
70mm
Cross slide travel
160mm
Tailstock quill travel
70mm
Taper of tailstock quill
MT3
Main motor
1.5kw
Drilling and milling head
BF20
Spindle taper
MT2
Spindle travel
52mm
Range of spindle speeds(variable speed)
50-2250rpm
Max.distance from spindle nose to table
380mm
Max.distance from spindle to columm
190mm
Motor power
750w
Packing size(for machine)
1450X700X1040mm
Packing size(for stand)
800X580X415mm
N.W
325kgs
Detailed Images
Product Description

Features:

Turning,milling,drilling and treading
Metric or imperial thread cutting
Suitable for processing metal,wood and other materials
Excellent advantage of various functions,small occupation and economic
Specification
HQ400
MP500
Max. Swing over bed
420mm
420mm
Max. Distance between centers
400mm
500mm
Max. longitudinal travel
380mm
400mm
Max. cross travel
120mm
200mm
Spindle taper
MT3
MT4
Spindle bore
20mm
φ28mm
Step of spindle speed
3 steps
7 steps
Range of spindle speed
500.900.1600rpm
160-1360rpm
Barrel travel
70mm
70mm
Barrel taper
MT3
MT3
Max. drilling capacity
20mm
φ22mm
Worktable size (L×W)
200*150mm
475×160mm
Max. end mill
20mm
φ28mm
Max. face mill
63mm
φ80mm
Spindle taper
MT3
MT3
Step of spindle speed
6 steps
16steps
Range of spindle speed
375-1600rpm
120-3000rpm
Swivel degree of headstock
±360°
±360°
Motor power
0.55kw
0.75kw
Packing size
1030*580*1070mm
1130×580×1100mm
N.W/G.W
155/185kgs
245/280kgs
320* 750

선반 CJM 320 *750
Product Description
Machine Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 9-1800rpm.
6. Two different lengths of bed are available.
7. With or without cabinet according to requirement.
Specification
CJM320C
Max. swing over the bed
320mm
Max. length of work piece
500/750mm
Max. swing over cross slide
180mm
Max. cross slide travel
160mm
Max. longitudinal stroke over tool post:
75mm
Spindle bore
38mm
Spindle taper
MT5
Spindle speeds range
8 steps: 90-1800r/min
Metric thread kinds
18
Metric pitches
0.20-3.5mm
Inch threads kinds
34
Inch pitches
41/2-48 1/n''
Longitudinal-feed range
0.08-0.56mm/r
Cross-feedrange
0.04-0.28mm/r
Tailstock quill travel
60mm
Tailstock quill taper
MT3
Motor
1100W
N.W/G.W
300/350kg
Packing size: (L×W×H)
1500*700*1300mm
Detailed Images

1. 초소형 탁상 밀링기
TM13 mini milling machine
(SPECIFICATIONS)

Drilling capacity
13mm
Max.end mill capacity
16mm
Max.face mill capacity
30mm
Headstock travel(Z)
180mm
Cross axis(X)
100mm
Longitudinal axis(Y)
220mm
Throat
170mm
Max.distance spindle to table
280mm
Head tilt
45°L,  45°R
Spindle taper
MT3 or R8
Motor output power
350W
Spindle speed   Low range /High range
100-1100RPM±10%/ 100-2500RPM±10%
Table effective size
390×92mm
T-slot size
12mm
Net weight/Gross weight
50kg/68kg
Packing size
520×520×730mm
PRODUCT SPECIFICATIONS
13Max. Drilling Diamter
13mm
Max. Face Milling Capacity
30mm
Max. Vertical Milling Capacity
16mm
Worktable Size
485×110mm
T-slots Size
12mm
X-Axis Travel
300mm
Y-Axis Travel
130mm
Z-Axis Travel
180mm
Spindle Taper
MT3/R8
Spindle Incline Angle
±45°
Spindle Speed (Variable Speed)
50-2500mm
Motor Power
600W
N.W./G.W.
62kg/80kg
Packing size
550×550×735mm
FEATURES AT A GLANCE

2. 소형 벤치밀링
Product Description
Equipment technical features:
1. The working table can move vertically and horizontally.
2. The base is integral casting, the workpiece is more stable and the precision is higher!
3. With drilling, milling, boring, grinding, tapping, and other cutting functions of the machine.
4. The headstock can turn around 90° in the vertical plane.
5. The working table can turn around 45° in the horizontal plane
6. The worktable can automatically move the knife longitudinally to improve the processing
Specification
item
value
Condition
New
type
Drilling & Milling Machine
Max. Drilling Dia. (mm)
50
Range of Spindle Speed(r.p.m)
11r.p.m - 1750r.p.m
CNC or Not
Normal
Drilling Speed
115-1750
Place of Origin
China
Shandong
Brand Name
No.1 machine
Model Number
ZX50C
Voltage
110V/220V/380V/440V
Dimension(L*W*H)
1100*970*1650
Certification
CE/ISO
Power (kW)
1.5
Weight (KG)
500KG
Warranty
1 Year
Online support, Video technical support
Key Selling Points
Competitive Price
After Warranty Service
Video technical support, Online support
Local Service Location
China
Showroom Location
China
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor
Product name
Drilling and milling Machine
drilling a max.diameter
50
max.milling width
100
milling diameter
25
bore diameter
120
max.tapping diameter
M16
spindle taper hole
MT4
distance spindle nose to table
38-430
weight
500/600
dimensions
1100*970*1650
Product main technical specifications:
Specifications
ZX50A milling machine
ZX50C milling machine
Max. Drilling Dia. (mm)
50
50
Max. Horizontal Milling Dia.
100
100
Max. Vertical Milling Dia.
32
32
Max. Boring Dia.
100
100
Spindle Taper
MT4,R8
MT4,R8
Spindle Speeds Range
(5 step) 270-2400
(5 step) 115-1750
Spindle Travel
120
120
Table Size (mm)
800*240
800*240
Table Travel (mm)
400*230*380
400*230*380
Main Motor Power (KW)
1.5
0.85/1.5
N.W./G.W.(Kg)
460/540
470/550

Standard Accessories:
Work lamp
Cooling system
Milling Chuck
Drilling Chuck
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
Optional Accessories:
Power feed
3-axis Digital Reading
Turret Milling Head
Machine Vise
Dividing Head
Rotary Table
Clamping Kits

3. 소형 복합밀링
VERTICAL MILLING AND DRILLING MACHINE:
1. Uses standardized assemblies from the VH milling machine universal use as
milling machines and drill press
2. Easily shift able gear drive ensures power transmission without losses
3. With V-belt spindle drive and gear spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear,
easy activation of manual micro-feed for the spindle quill
MODEL
ZX7550
ZX7550C
ZX7550W
ZX7550CW
Max.drilling dia (mm)
50
50
50
50
Max.horizontal milling dia (mm)
100
100
100
100
Max.vertical milling dia (mm)
25
25
25
25
Max.boring dia (mm)
120
120
120
120
Max.tapping dia
M16
M16
M16(Vertical)
M16
Distance.spindle to table surface (mm)
140-490
90-490
80-460
90-490
Spindle speeds range (r.p.m)
230-1825
115-1750
230-1825(Vertical)
80-1300(horizontal)
(Vertical)115-1750
(Horizontal)60-1350
Spindle travel
120
120
120
120
Table size (mm)
800×240
800×240
800x240
800×240
Table travel (mm)
400×230
400×230
400x230
400×230
Overall dimensions (mm)
1100×1100×2080
1100×1100×2080
1280×1100×2080
1280×1100×2080
Motor (Kw)
0.85/1.5
0.85/1.5
0.85/1.5(Vertical)
1.1(horizontal)
( Vertical)0.85/
1.5 (horizontal)2.2
N.W/G.W (Kg)
610/770
610/770
700/880
850/1000
Item
TU60S
Spindle taper
R8/MT4/ISO30/ISO40
Distance from vertical spindle nose to table
70~420mm
Distance from horizontal spindle centerline to table
0-280mm
Distance from vertical spindle centerline to column
220-700mm
Distance from horizontal spindle centerline to ram bottom
170mm
Spindle speed range
(H) 8steps, 60-1350r.p.m                            (V) L:90-425r.p.m./H:425-2100r.p.m.
Swivel angle of milling head
±45°
Table size (L×W)
1000x240mm
Max.rotations angle of tadle
±45°
Table travel (X/Y/Z)
500x200x350mm
Table longitudinal & cross feed
4 steps, 7-42mm/min
Table vertical feed (Z)

X,Y-axis rapid feed speed
800mm/min
Z-axis rapid feed speed

Feed motor power
370w
Max.loading of worktable
200kgs
Table T-slots (No./Width/Pitch)
3/14mm/60mm
Z-axis guide way type
Dovetail
Y-axis guide way type
Dovetail
X-axis guide way type
Dovetail
Main motor power
(V)2.2KW (H)1.5KW
Overall dimensions (L×W×H)
1290X1220X2100mm
Packing size (one/two sets)
114x134x222cm
N.W (one set)
850kgs

4. 1.5호기 밀링

Item
Unit
X6325
X6325A
X6325B
X6325C
X6325D
XU6325
Table size
mm
254x1270
250x1270
Longitudinal travel
mm
850
770
Cross travel
mm
400
400
Vertical travel
mm
400
400
T-slot
3x16
Distance from spindle nose to table
mm
0-400
Ram Travel
mm
470
Spindle taper
Standard: R8;
Optional: ISO30/ISO40
ISO40
R8
Spindle travel
mm
127
Spindle speed
Rpm
Standard: 16-steps, 66-5440
Optional: Variable 60-4200
Variable 60-3600
60-4200
Spindle feed
3-steps: 0.04/0.08/0.15 mm/rev
Main motor
kw
2.25/3HP
3.75/5HP
2.25/3HP
Head Swivel (Right-Left)
90°
Head Swivel (Front-Back)
45°
Single milers package
mm
1516x1550x2080
Weight
kg
1490
Standard Accessories
Plastic splashing guard
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Milling Chuck
Optional Accessories
Power feed
3-axis Digital Reading
Machine Vise
Clamp Kits
Variable milling head
Air drawbar
Dividing Head
Rotary Table
ZAY7040G vertical drilling & milling machine power feed==Main features
1. Gear-driven and round column
2. Milling, drilling, tapping, boring and reaming
3. Adjustable gibs on table precision
4. Strong rigidity, powerful cutting and precise positioning
5. Reversible spindle direction
6. Dovetail ways
7. Head tilts up to 90° left or right and swivels up to 360° around the column
ZAY7040G vertical drilling & milling machine power feed==SPECIFICATION
SPECIFICATION

ITEM
ZAY7020G
ZAY7032G
ZAY7040G
ZAY7045G

Drilling capacity
20mm
32mm
40mm
45mm
Face milling capacity
63mm
63mm
80mm
80mm
End milling capacity
20mm
20mm
32mm
32mm
Distance from spindle nose to table
439mm
440mm
440mm
440mm
Min.distance from spindle axis to column
197.5mm
272.5mm
272.5mm
272.5mm
Spindle travel
85mm
130mm
130mm
130mm
Spindle taper
M.T.3 or R8
M.T.3 or R8
M.T.4 or R8
M.T.4 or R8
Step of spindle speed
6
6
6
6
Range of spindle speed    50Hz
95-1420 r.p.m
80-1250 r.p.m
80-1250 r.p.m
80-1250 r.p.m
                                      60Hz
115-1700 r.p.m
95-1500 r.p.m
95-1500 r.p.m
95-1500 r.p.m
Swivel angle of headstock(horizontally/perpendicularly)
    360°/±90°
   360°/±90°
    360°/±90°
   360°/±90°
Table size
520×160mm
800×240mm
800×240mm
800×240mm
Forward and backward travel of table
140mm
175mm
175mm
175mm
Left and right travel of table
290mm
500mm
500mm
500mm
Motor power
0.37KW
0.75KW(1HP)
1.1KW(1.5HP)
1.5KW(2HP)
Voltage/frequency
As customer's requirement
As customer's requirement
As customer's requirement
As customer's requirement
Net weight/gross weight
130kg/190kg
315kg/365kg
318kg/368kg
320kg/370kg
Packing size
680×750×1000mm
770×880×1160mm
770×880×1160mm
770×880×1160mm
Loading amount
48pcs/20'container
36pcs/20'container
36pcs/20'container
36pcs/20'container

ZAY7040G vertical drilling & milling machine power feed==Standard accessories
Allen srench
Wedge
Tie rod
ZAY7040G vertical drilling & milling machine power feed==Optional accessories
Drill chuck
Milling cutter holder
Mill chuck
Power feed attachment
Auto-tapping electrical
Paraller vise
Working lamp
Coolat system
Machine stand and chip tray
Clamping kits
ZAY7040G vertical drilling & milling machine power feed==FACTORY AND OTHER

1.Main Application and Applicable Scope
ZX7045 is used for drilling, milling,tapping and reaming on ferrous and non-ferrous materials, its max drilling capacity is 45mm, width of face milling is 80mm, diameter of vertical milling is 28mm, it is widely used in the machinery workshops,hardware, instrument and gauge industries, and repair workshops for single piece or mass production and so on.
2.Technical Parameters
Max drilling capacity 45mm
Width of face milling 80mm
Diameter of vertical milling 28mm
Max tapping capacity M12
Spindle travel 120mm
Distance spindle axis to column surface 260mm
Distance spindle nose to worktable 475mm
Taper of spindle MT.4
Spindle speeds 6 steps
Spindle speeds range 65、120、190、370、670、1380r/min
Travel of worktable (L×W) 550×200mm
Size of worktable 820×240mm
Main motor 1100W, 910r/min
Outline dimension (L×W×H) 1140×800×1040mm
Net/Gross weight 320/370kg

Product Description

Hot selling desktop milling machine, manual scale slotter, mini slotting machine price

Feature:

1.This manual milling machine is small and exquisite, also with beautiful appearance.

2.Good accuracy and stability, easy to operate.

3.Widely used in non-ferrous metals and plastics, plexiglass, wood sawing, milling, engraving, milling and other milling, the above cutting can be done in any position.

4.Spindle arbor default 22MM, can be customized 16MM.

Specification:

M1514 desktop manual grooving machine

Table size
335x130mm
Horizontal travel
110mm
Vertical travel
180mm
Lifting travel
180mm
Table rotation
-45 degree
Power
750W
Spindle speed series
3 level
Machine size
650x600x660mm
Weight
93kg
Spindle spee
610/1400/2700 r/min
T slot width
12mm
T-slot pitch
68mm

Product Overviews

Product Display
Product name
Manual Surface Grinder Machine
MOQ
1set
Payment
L/C,T/T
Specification
Related Product
3.연마기
가. 미국OEM PSG-206
Main features of   Mini tool surface grinding machine MJ7115 :
1)Integrated grinding head of high quality, high rigidity and accuracy.
2)Small size, light weight, easy operation & maintenance.3
3)Centralized lubrication for oil pump.
Specification and data of Mini tool surface grinding machine MJ7115
Specification
Metric
Inch(“)
Longitudinal stroke
340mm
14
Cross stroke
170mm
7
Vertical stroke
210mm
8
Table size(W*L)
152mm×304mm
6×12
Width of T-slot
1-12mm
1-0.47
Cross feed per graduation
0.02mm
0.001
Cross feed per round
2.54mm
0.1
Vertical feed per graduation
0.025mm
0.001
Vertical feed per round
1.25mm
0.05
Size of grinding wheel
180mm×32mm×13mm
Motor power
0.55kw
Roughness
1.6μm
N.W. / G.W. of machine
210/258kg
N.W. / G.W. of stand
30/54kg
Overal dimensions of machine
930×780×730mm
Case dimensions of machine
930×780×1480mm
Case dimensions of stand
720×550×550mm

The detailed parts of Mini tool surface grinding machine MJ7115
The package and workshop of Mini tool surface grinding machine MJ7115

DAESANG MACHINE DEZHOU KOREA CORP. 덕주코리아 zip 150-961 #202 of 4 unit, 247, 1-ga, yangpyeong-dong, yeongdeun
Regarding the grinder machine MJ7115, please check my reply as follows:
1、The machine change from lead screw model to ball guid model did not change the axis.
Difference of between lead screw model and ball guid model just is guide different.
please check the pictures show as follows:

    Lead screw model    ball guid model

2、stand ： 3、  permanent magnetic chuck , size : 150x300mm



4、Precision flat vise ：

X1415B 다기능 소형 탁상 가공기

Hot selling desktop milling machine, manual scale slotter, mini slotting machine price

Feature:

1.This manual milling machine is small and exquisite, also with beautiful appearance.

2.Good accuracy and stability, easy to operate.

3.Widely used in non-ferrous metals and plastics, plexiglass, wood sawing, milling, engraving, milling and other milling, the above cutting can be done in any position.

4.Spindle arbor default 22MM, can be customized 16MM.

Specification:

M1514 desktop manual grooving machine

Table size
335x130mm
Horizontal travel
110mm
Vertical travel
180mm
Lifting travel
180mm
Table rotation
-45 degree
Power
750W
Spindle speed series
3 level
Machine size
650x600x660mm
Weight
93kg
Spindle spee
610/1400/2700 r/min
T slot width
12mm
T-slot pitch
68mm

Product Overviews

Video Description
00:26
00:50
Multifunctional Horizontal Milling Machine.
Horizontal Milling machine is suitable for Folder-Mold, Automobile Accessory, Motor Industry, Plumbing parts, Electrical and other small parts manufacturing, especially for large volume manufacture equipment is preferred.
                            Left View
                              Front View
                                  Right View
NO.
Model
X1514B
1
Worktable Size(length * width )
325x130mm
2
Longitudinal Moving Distance
100mm
3
Horizontal Moving Distances
100mm
4
Spindle Vertical Moving Distances
180mm
5
Spindle Diameter for ftool
22mm
6
Spindle Speed Range
780--2480r/min
7
Angle of Worktable Revolution
0--180°
8
Motor Power
0.75kw
9
Motor Speed
1400r/min
10
Motor Voltage
380V
11
Overal Size
700x700x570mm
12
Net Weight
85kg

DAESANG MACHINE DEZHOU KOREA CORP.   TEL:82-2-2068-3312
M:010-2845-4417  E-MAIL :sksea99@daum.net
CHINA DEZHOU PRECION www.dzjc.com GRINDER www.sunnyfreeport.com

DAESANG MACHINE DEZHOU KOREA CORP. 덕주코리아 zip 150-961 #202 of 4 unit, 247, 1-ga, yangpyeong-dong, yeongdeungpo-gu,seoul, korea TEL:82-2-2068-3312 FAX:82-2-2068-3313 M:010-2845-4417 E-MAIL :sksea99@hanmail.net BLOG : http://blog.daum.net/sksea99 lathe www.dzjc.com / grinder www..sunnyfreeport.com
