중국 웨이다 머시닝 센타 선도기업
홈페이지 www.weida-mc.com
검토후 문의 바랍니다
문의 덕주코리아 010 2845 4417
동남아시아시장에 꾸준히 판매공급되고 있읍니다
베트남/인도네시아/타이랜드/말레이시아 등
한국시장 진출 본격 시도 합니다
부담없는 가격/ 탁월한 성능 사후관리 포함
덕주코리아 중국산 공작기계 취급전문
주요취급업무 기계판매.A/S부품 공급
중국산 중고 대형장비 중국으로 역수출
문의 덕주코리아 010 2845 4417
1.중국산 선반과 디프홀 가공기 선도업체 중국 덕주기상창
www.dzjc.com 홈페이지 검토후 문의 시 바로 바로
상세한 정밀견적 제공합니다
(대주축경 선반 /초강력/초장축선반)
* 대형선반 척 특수규격 취급 전문
630/800/1000MM 3본/4본 연동.단동 척
2.중국산 밀링/머시닝센타/프레너 밀러 최선도 기업
(1.5호기 밀링/레디얼 드릴링기/양두밀링 포함)
웨이다 기상창 홈페이지 www.weida-mc.com
3.대만 평면연마기 최고봉 써니 연마기 전세계시장 인정
홈페이지 www.sunnyfreeport.com
*수십년간 고정밀도 연마가공유지
4. 소형 기계 특수 전문 취급
- 칼날연마기 400/600/750( 장도 포함)
- 초소형 탁상 연마기 150*300
- 소형 탁상선반/밀링/프레스/스롯터등
-소형 엔드밀 공구연마기 (에어베아링 스핀들)
5. 특수 복합설비/전용기 제작 공급
견적( 해외공장/국내공장) 중국설비 완비 견적제공
각종 전용기 구조물 반제품 견적
상기 관련 모든 중국 공작기계 A/S 부품 공급합니다
중국산 공작기계/산업기계 해외직구
동일가격으로 직구처리 동시에 사전 예비부품 추가/소모품 사전확보등
협조처리합니다
해외직구 많은 이용 바랍니다
4 axis Machine VMC 850 CNC vertical milling machining center
| specifications | Unit | VMC850 |
| Table size | mm | 1000×500 |
| T-slot | 5-18-100 | |
| Max. load | kg | 500 |
| Travel X, Y, Z | mm | 850×500×500 |
| Spindle nose to table surface | mm | 100~600 |
| Rapid feed speed X, Y, Z | m/min | 30/30/24 |
| Feed speed X, Y, Z | mm/min | 1~10000 |
| Spindle Taper | BT40 | |
| Spindle Speed | r/min | 40~6000 |
| Spindle power | kw | 7.5 |
| Tool magazine with capacity | 16(optional:24) | |
| Min. time of tool change | s | 3/7 |
| Positioning accuracy | mm | ±0.005/300 JIS |
| Re-positioning accuracy | mm | ±0.003 |
| Overall dimension | mm | 2500*2180*2600 |
| Machine weight | kg | 5300 |

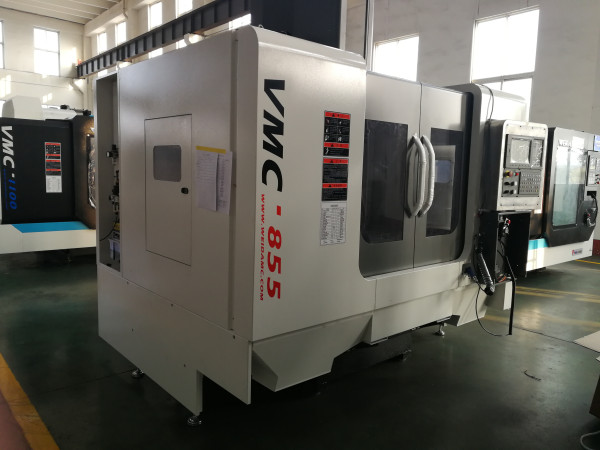

4 axis Machine VMC 850 CNC vertical milling machining center is composed of base, column, middle sliding saddle, table, headstock, operation panel, tool magazine, pneumatic system, lubricant system, cooling, lighting, protection system, CNC system, electrical system.
International advanced linear rolling guide way pair are adopted on X, Y shafts, which is high rigidity, heavy-load, low friction; driving lead screw is heavy-load, low friction, high accuracy ball screw, spindle speed range is 40~6000 rpm,rapid speed is 24m/min. Timing and fixed quantity lubricant system is equipped, which prolongs the working life of machine, totally enclosed protection device is adopted, which assures the safety of worker and lustration of environment.
We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine, Shanghai C N C gantry guide rail grinding machine, Beijing C N C gantry type boring milling machine and automatic powder coating line .Besides, C N C machine tool project laboratory with advanced testing equipments is built for quality control.

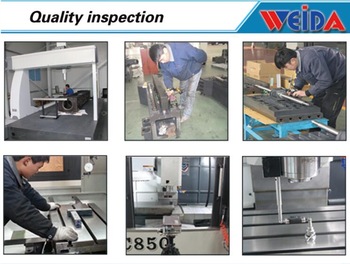

We will test every machines carefully in different status by our professional engineers to make sure our machines quality. For linear guides cnc milling machine, we will test the accuracy by Renishaw laser interferometer and will make ball bar test, as well as cutting test before delivery.With the sequence testing, we can make sure the machines' quality.
Machine model: 4 axis Machine VMC 850 CNC vertical milling machining center

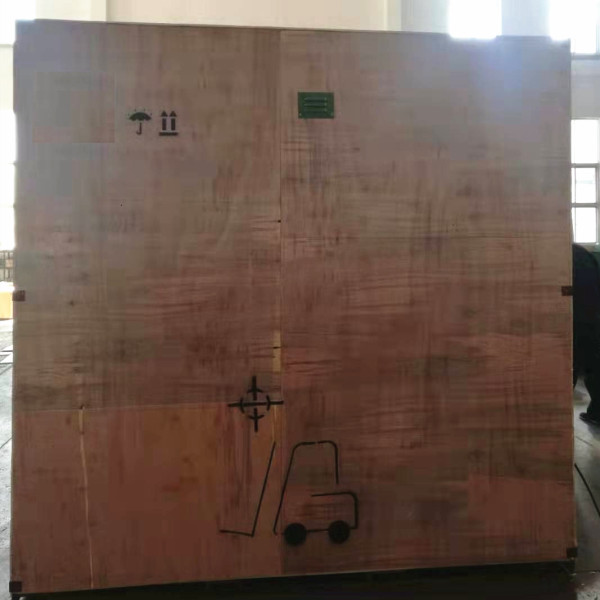

Type of package: Plywood case
Packing dimension:
289X228X255CM
Suitable Container and quantity:
40 High container: 4sets
Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams, molds, connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc., for the processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and machining center can meet the basic processing requirements.

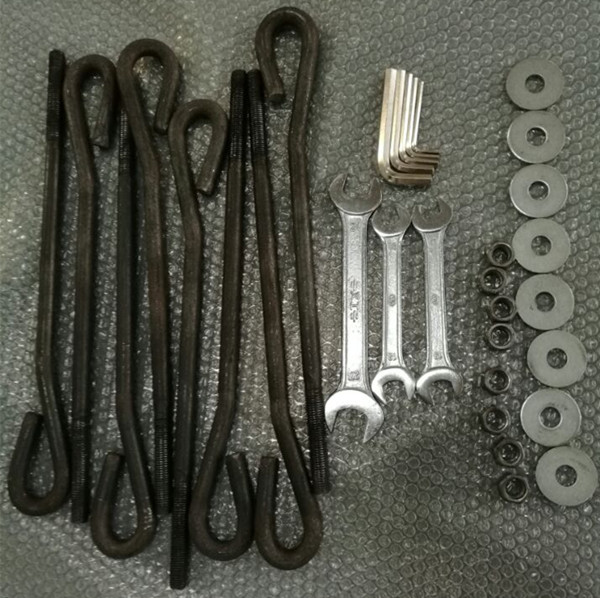

Optional accessories
VMC850 WEIDA vertical machining center cnc vmc can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.
You can choose all the optional accessories according to your demand. If you need any other accessories, we can
talk in details, we will try our best to satisfy all your request.
All our machines have been passed CE certification,such as cnc vertical center machine,vertical machining
center,drilling machines etc.. Besides, we also have ISO9001 certificate. Our company complys with European
standard. We always export our machines to European market,such as Poland, Russia, Italy, Germany,America etc
From the moment we recieve your confirmed order,we will begin to arrange the production. First, we will prepare
the castings. We have our own castinng factories,we can make sure its quality.Casting will decide your machine
quality. When all the parts are ready, we begin to assemble it. During assembling, we will test every step to control
machine's quality. Large parts and protections will be assembled first, then next is painting. After painting, electrical
will be installed, finally, the machine will be assembled well and tested. We will control each step, so finally, there
should be no problem for assembled machine. We will deliver an qualified machine to you.
Processing equipment
We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal
machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine,
Shanghai cnc gantry guide rail grinding machine, Beijing cnc gantry type boring milling machine and automatic
powder coating line .Besides, Cnc machine tool project laboratory with with advanced testing equipments is built for quality control.
Shandong Weida Heavy Industries co., ltd. is a large scale joint enterprise with the right of import&export.It covers
an area 500,000square meters,the building zone is about 350,000square meters,and the total assets is more than
RMB500million, there are 365 engineers and 632sets of production equipment&measuring test instrument in the
company.
We are the biggest manufacturer of machine tools in the south of Shandong Province. Our main products have
developed to 8 series:cnc gantry type machining center, vertical fanuc cnc milling machines specifications,
horizontal boring machine, cnc vertical center machine.altogether more than 90 specifications.
We also have passed through ISO9001:2008 certification of CQC,and got CE certificate in 2006.
We have different workshops to produce different machines,it mainly includes cnc workshop,milling machine
workshop, radial drilling machine workshop,processing department etc.
For cnc workshop as above, we will produce vertical machining center,gantry type machining center,horizontal
machining center,cnc vertical center machine etc.. Every year we will produce hundreds of machining centers for
abroad customers. Our brand is well-known in many markets. And in every exhibitions in home and abroad, we will
avertise them. And we get great effect from exhibition.
For milling machine workshop, we produce conventional milling machine, cnc milling machine. We have more than
15 years experience on conventional milling machines. We have great experience and
professional engineers, the quality for them is good, you can trust.And our brand for conventional milling machine
has been popular in abroad market. We supply the machines to many famous companies, such as Germany
KNUTH company, Germany OPTIMUM company, Russia JET company, American companies etc.
Every year, we will attend many exhitions at home and abroad. At home, we will attend CIMES,CCMT,
CANTON fair etc..At abroad, we will attend EMO held in Hannover or Milano, Metalloobrabotka in Moscow,
and other exhibitions,such as Mexico,Turkey,Colombia, Brazil,Indonesia,Thailand, Iran exhibitions etc.
Our machines are sold well and known by many famous customers.
We are always trying our best to exhibit best machine to you. We warm welcome to make business with you if you
are willing. We will be your good supplier. Because we have good quality machine and good service.
Every year, there will be many customers from different countries to visit us. Some of them are our regular
customers. We meet with each other as good friends and talk about our cooperation for next year. Some customers
are our potentional customers, they visit us to see our factory for future cooperation. Everyone will satisfy with our
factory after visiting. Because we are a large manufacturer with good reputation. We have the alibity to supply best
machines . So we warm welcome for everyone's coming. After visiting, you will trust us.
2.The spindle is Taiwan 10000rpm spindle, the highest speed will be set to 8000rpm when delivery.
3.Normally, the machine will be with arm type tool magazine with 24 tools capacity
rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc., for the processing of the
box, cavity, mold and other parts, with the specifications of the CNC milling machine and machining center can meet the basic
processing requirements.
Optional accessories
International advanced linear rolling guide way pair are adopted on X, Y shafts, which is high rigidity, heavy-load, low friction; driving lead screw is heavy-load, low friction, high accuracy ball screw, spindle speed range is 40~8000 rpm,rapid speed is 30m/min. Timing and fixed quantity lubricant system is equipped, which prolongs the working life of machine, totally enclosed protection device is adopted, which assures the safety of worker and lustration of environment.
Packing dimension: 300X228X255CM
Suitable Container and quantity: 40 High container: 3sets
500,000square meters,the building zone is about 350,000square meters,and the total assets is more than RMB500million, there are 365 engineers and 632sets of production equipment&measuring test instrument in the company.
We are the biggest manufacturer of machine tools in the south of Shandong Province. Our main products have developed to 8 series:cnc gantry type machining center, 4 axis cnc,horizontal boring machine,radial drilling machine,
universal knee type milling machine,vertical milling machine, milling drilling machine,altogether more than 90 specifications.
We also have passed through ISO9001:2008 certification of CQC,and got CE certificate in 2006.
Shandong WEIDA heavy industries Co., Ltd.wish to cooperate sincerely with friends at home and abroad to realize mutual
development.
Our Services & Strength
CNC gantry type machining center GMC2040
Transverse helical chip conveyor
- Chain-type tools magazine capability 32 tools or 40 tools
- Fanuc oi md, Siemens 828d, Mitsubishi M70, Heidenhain, and so on cnc control sytem for your choice
- Fixed beam type structure
- X,Y axis linear guideway; Z axis box guideway
- Germany ZF gearbox is optional
- Hydraulic station is optioanl
- Taiwan N75 right angle milling head or Spain multi-surface milling head is optional
| Specifications | Units | GMC2040 | |
| X-axis travel | mm | 4200 | |
| Y-axis travel | mm | 2500 | |
| Z-axis travel | mm | 1000 | |
| Worktable size | mm | 2000*4000 | |
| Max. load of worktable | kg | 12000 | |
| Number of T-slot | qty | 9 | |
| Width of T-slot | mm | 28 | |
| Distance between the adjacent T-slot | mm | 200 | |
| Distance between the two colums | mm | 2600 | |
| Distance from spindle nose to worktable surface | mm | 200~1200 | |
| Spindle taper | BT50 | ||
| Feed speed | X,Y axis | mm/min | 1~4000 |
| Z axis | mm/min | 1~2000 | |
| Rapid speed | X,Y axis | mm/min | 12000 |
| Z axis | mm/min | 8000 | |
| Spindle moter power | kw | 18.5/22 | |
| Spindle speed | rpm | 30~3200 | |
| Positioning accuracy X,Y,Z | mm | ±0.032/0.0280.022 | |
| Repeat positioning accuracy X,Y,Z | mm | ±0.015/0.014/0.012 | |
Machine model: Gantry type cnc machining center GMC2040
Type of package: Plywood case suitable for sea delivery
Packing dimension:
1st case: 1100X216X136CM
2nd case: 581X228X305CM
3rd case: 474X130X135CM
4th case: 193X183X80CM
5th case: 400X220X220CM
Suitable container:
1x40OT container, 1x20OT container,1x40GP container
DAESANG MACHINE DEZHOU KOREA CORP. TEL:82-2-2068-3312
M:010-2845-4417 E-MAIL :sksea99@daum.net
CHINA DEZHOU PRECION www.dzjc.com GRINDER www.sunnyfreeport.com
