WG 26/38/51/76 Hydraulic Automatic CNC SS Square Steel Pipe And Tube Bending Machines Pipe Bender

Product Description

Product Application:

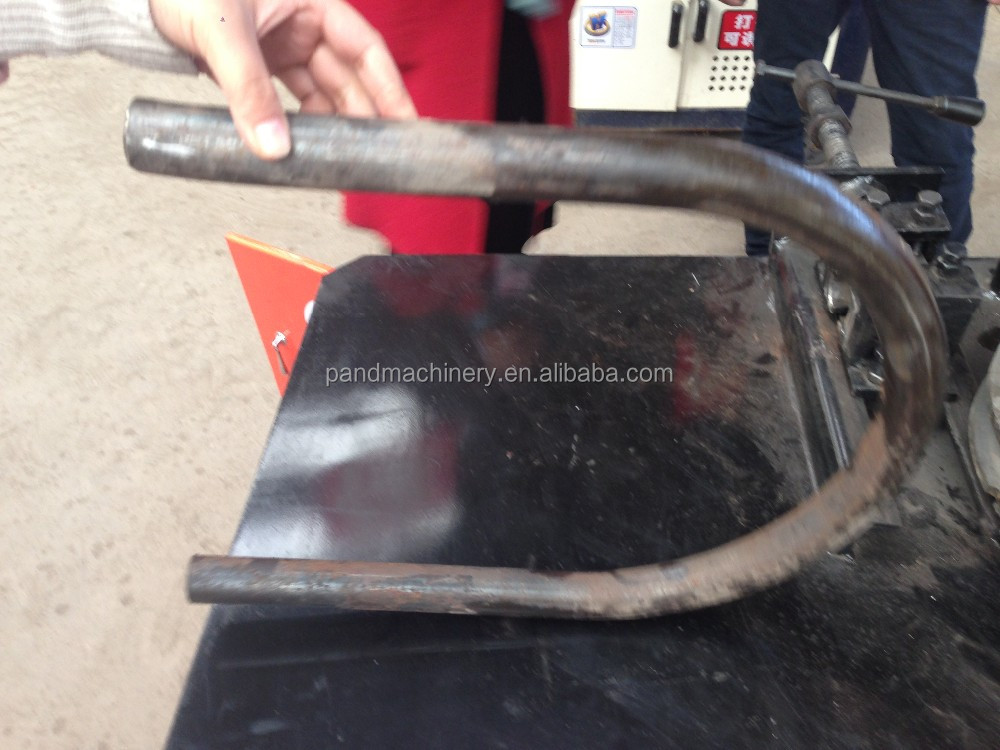

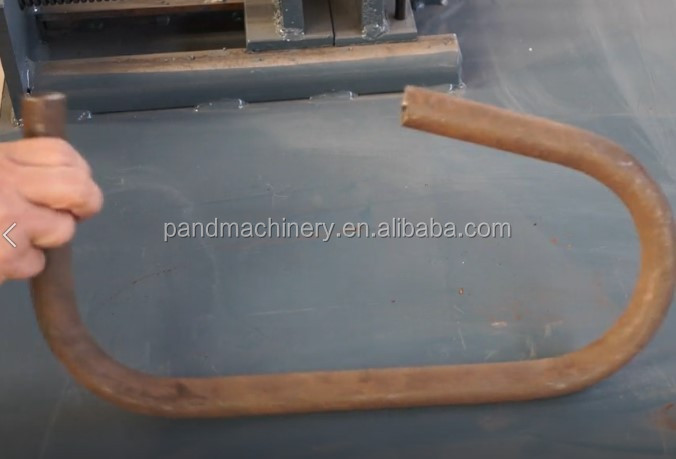

WG-38/51/76 CNC steel tube bending machine is mainly used for bending different kinds of tube materials,for example round or square mild carbon steel tube,201 or 304 stainless steel tube,rectangular steel tube,alumimum tube,cooper tube or other special shaped steel tube etc. And this machine always bend tubes into different angles from 5 to 180 degrees.
This model is our latest technical achievements of the research and development.Having the following characteristics:

1.Use Micro CNC computer panel control the bending angles and batches.
2.Gear drive is durable and maintenance is convenient,only add the grease oil into the gear box.
3.Thin tube and thick tube could work well by this machine.
4.Foot switch add CNC operation,let the tube processing so easy and convenient.

Electric Small Semi-Automatic CNC Pipe Bending Machine Technical Parameter
Model	WG-26	WG-38	WG-51	WG-76	WG-76W
Engine Type	Electric Type
Bending diameter	≤26mm	≤38mm	≤51mm	≤76mm	≤76mm
Thickness Scope	≤2mm	≤3mm	≤3mm	≤3mm	≤5mm
High bending speed	10-20r/min	10-20r/min	4-6r/min	3-5r/min	3-5r/min
Bending Angles Quantity	9	9	9	9	9
Max bending angle	180°	180°	180°	180°	180°
Min bending angle	5°	5°	5°	5°	5°
Motor Power	2.2kw	3kw	3kw	4kw	4kw
Power supply	380V,50Hz,3Phase Alternating Current Or Customized
Foot switch voltage	DC 5V	DC 5V	DC 5V	DC 5V	DC 5V
Dimensions(mm)	850x600x850	920x650x850	930x680x850	940x750x850	980760850
Weight	220KG	300kg	350kg	400kg	430kg

Hydraulic CNC Pipe Bending Machine Technical Parameter
Model	WG-76A	WG-100A	WG-150A
Engine type	Hydraulic automatic type
Bending diameter	Φ25-76mm	Φ25-100mm	Φ25-133mm
Thickness scope	≤3mm	≤3mm	≤5mm
motor power	7.5KW	7.5KW	11KW
high bending speed	9r/min	9r/min	9r/min
power supply	380V 50HZ three phase or customized
Bending angles	5-180°	5-180°	5-180°
bending angle quantity	9	9	9
dimensions	15009501250mm	180010501350mm	190012001400mm
weight	1000kg	1300kg	1500kg

WG 26/38/51/76 Hydraulic Automatic CNC SS Square Steel Pipe And Tube Bending Machines Pipe Bender

Packaging & Shipping

Packing and Shipping

1. Packaging: 1)Wrapped by proctective film;

2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.

WG38/51/76/100/150 Hydraulic Stainless Steel Pipe Bending Machine/ Square Tube/ Round Pipe Benders For Sale

1.100% copper motor with speed 1420r/min, normally this motor can work 2 years without breaking
2. our gear material ductile iron QT500-7 ,which have high precision and hardness .all the gears are fine processed twice.
3. The operation disc material carbon structure steel
4. The painting , beautiful anti-rust spray painting inside and outside .

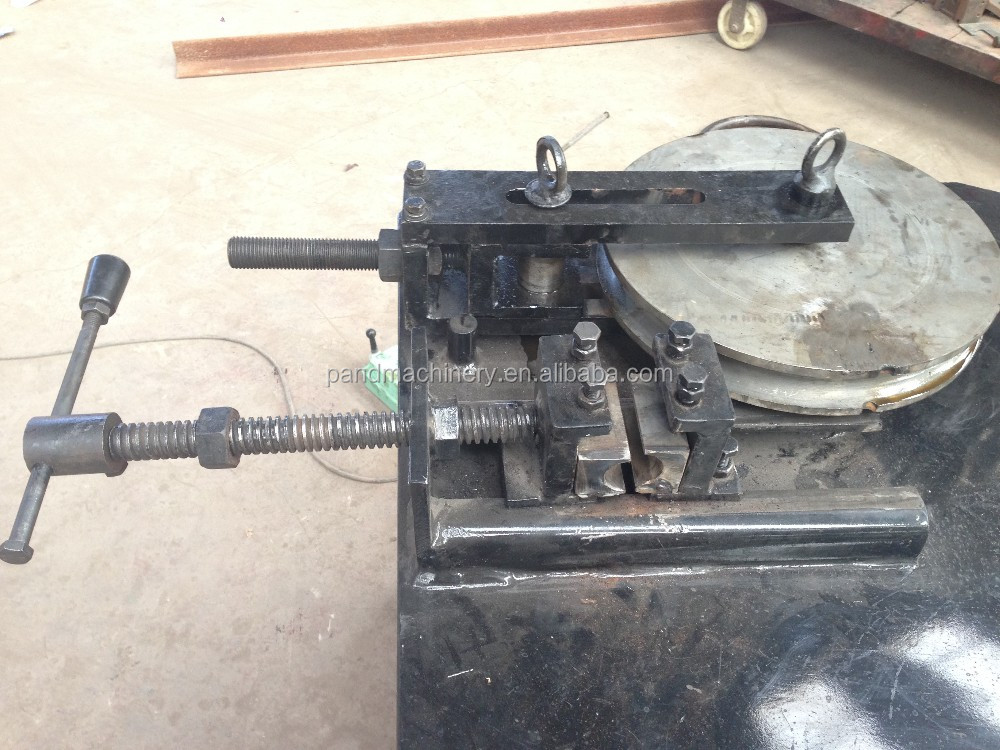

5. The stop gauge can be installed from four different corners to realize the requirement of putting steel bar from various directions.
6. It is fully enclosed gear-box, low noise, high and low speed, which is easy for the worker to handle.
7. It adds eccentric bushing, ultra-high hardness accessories and adjustable baffles, so it will have longer service life .
8. We provide complete accessories, so do not worry the maintenance.
9. Our products with ISO certification in conformity with national quality standards.

WG38/51/76/100/150 Hydraulic Stainless Steel Pipe Bending Machine/ Square Tube/ Round Pipe Benders For Sale
Model	WG-38	WG-51	WG-51
Max. Working Capacity	Ø38mmx2.5mm	Ø51mmx3.5mm	Ø76mmx5mm
Bending Speed	10-12r/min	8-10r/min	8-10r/min
Bending Angle No.	9
Max. Bending Angle	180°
Min. Bending Angle	30°
Motor Power	2.2kw	3kw	4kw
Demision	920x650x850mm	930x680x850mm	940x750x850mm
Net Weight	210Kg	260Kg	300kg
