Servo Motor For The Downfeed Construction NC control system with servo motor can make the downfeed construction operation easy. Accurate and quick. The servo motor compound with a feed-back encoder to ensure the location of spindle seat sensitive & high precision. The downfeed operation use multiple control modes: a. auto down feed control mode. b. manual downfeed mode. c. pulse generater hand-wheel operation mode. SD Series Control Panel NC control system with the LED position indicator.can be showed reference position of spindle seat instantaneously. So the user can take this feature to be used as a linear scale. Setting the auto cross-feed stroke on the panel. The downfeed operation use multiple control modes: a. auto downfeed control mode. b. manual downfeed mode. c. pulse generater hand-wheel operation mode.

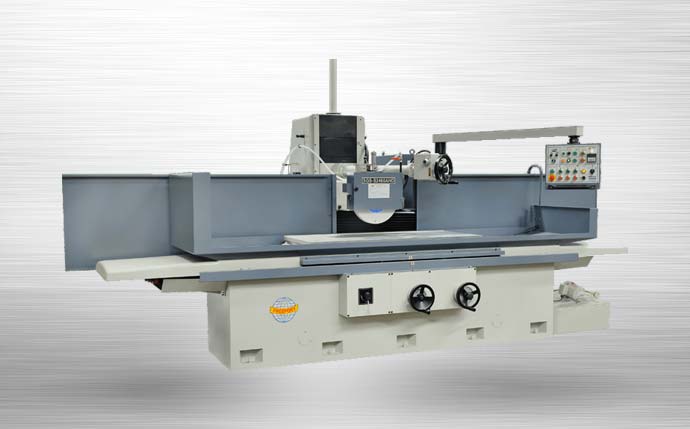

MODELS / SPECIFICATION SGS-1020 H / AH / AHR / AHD / SD SGS-N1224 H / AH / AHR / AHD / SD Working Surface Of Table. W x L 230 x 500 (9.1" x 19.7") 260 x 600 (10.2" x 23.6") Max. Grinding Surface. W x L 254 x 508 (10" x 20") 304 x 609 (12" x 24") Max. Horizontal Travel Of Table 565 (22.2") 690 (27.2") Max. Cross Travel Of Table 263 (10.4") 313 (12.3") Distance Between Table Surface And Spindle Center 500 (19.7") Table Speed 6 ~ 25 M/min (240 ~ 1000 inch/min) SD-2~26M/min (80 ~ 1040inch/min) Automatic Crossfeed Of Sadle (60HZ) 0 ~ 9 (0"~0.35") Vertical Handwheel (1 gra) 0.01 (0.0005") Vertical Handwheel (1 rev) 2 (0.1") Crossfeed Handwheel (1 gra) 0.01 ( 0.005") Crossfeed Handwheel (1 rev) 4 (0.2") Downfeed Mirco Adjustment (1 gra) AHD-0.002(0.0001") SD-0.001(0.00005") Downfeed Mirco Adjustment (1 rev) AHD-0.2(0.01") Longitudinal Travel Adjustable from-to 50 ~ 508 (2" x 20") 50 ~ 609 (2" ~ 24" ) Crossfeed Travel Adjustable from-to 0 ~ 254 (0" ~ 10") 0 ~ 304 (0" ~ 12") Spindle Motor 2HP x 2P *3P x 2P Hydraulic Pump Motor H / H-1HP x 6P AHD /SD-2HP x 6P Crossfeed Motor 40W x 6P Downfeed Motor AHR-1/5 x 6P AHD-1/4HP x 6P Grinding Wheel (OD x T x ID) 205 x 13 x 31.75 (8" x 0.5" x 1.25") Spindle Speed 60/50HZ 3500RPM / 60HZ 2900RPM / 50HZ Coolant Motor 1/8HP Dust Collector Motor 1/2HP x 2P New Weight 1350kgs (2970lbs) 1400kgs (3080lbs) Gross Weight 1600kgs (3520lbs) 1650kgs (3630lbs) Packing Dimensions 2060 x 1680 x 2050 (81.1" x 66.1" x 80.7") 2230 x 1670 x 2050 (87.7" x 65.7" x 80.7") MODELS / SPECIFICATION SGS-1224 H / AH / AHR / AHD / SD SGS-1230 H / AH / AHR / AHD / SD Working Surface Of Table. W x L 260 x 600 (10.2" x 23.6") 260 x 750 (10.2" x 29.5") Max. Grinding Surface. W x L 304 x 609 (12" x 24") 304 x 762 (12" x 30") Max. Horizontal Travel Of Table 690 (27.2") 840 (33.1") Max. Cross Travel Of Table 332 (13.1") Distance Between Table Surface And Spindle Center 600 (23.6") Table Speed 6 ~ 25 M/min (240 ~1000 inch/min) SD-2~26M/min (80~1040 inch/min) Automatic Crossfeed Of Sadle (60HZ) 0 ~ 9 (0" ~ 0.35") Vertical Handwheel (1 gra) 0.01 (0.0005") Vertical Handwheel (1rev) 2(0.1") Crossfeed Handwheel (1 gra) 0.01(0.005") Crossfeed Handwheel (1 rev) 4(0.2") Downfeed Mirco Adjustment (1 gra) AHD-0.002(0.0001") SD-0.001 (0.00005") Downfeed Mirco Adjustment (1 rev) AHD-0.2 (0.01") Longitudinal Travel Adjustable from-to 50 ~ 609 (2" ~ 24") 50 ~ 762 (2" x 30") Crossfeed Travel Adjustable from-to 0 ~ 304 (0" ~ 12") Spindle Motor 5HP x 4P Hydraulic Pump Motor H / AH / AHD / SD-2HP x 6P Crossfeed Motor 40W x 6P Downfeed Motor AHR-1/5 x 6P AHD-1/4HP x 6P Grinding Wheel (OD x T x ID) 355 x 32 x 127 (14" x 1.25" x 5") Spindle Speed 60/50HZ 1750RPM / 60HZ 1450RPM / 50HZ Coolant Motor 1/8HP Dust Collector Motor 1/2HP x 2P New Weight 1850kgs (4070lbs) 1950kgs (4290lbs) Gross Weight 2150kgs (4730lbs) 2250kgs (4950lbs) Packing Dimensions 2260 x 1740 x 2210 (88.9" x 68.5" x 87") 2260 x 1740 x 2210 (88.9" x 68.5" x 87") MODELS / SPECIFICATION SGS-1632 AH / AHD / SD SGS-1640 AH / AHD / SD Working Surface Of Table. W x L 400 x 800 (15.7" x 31.5") 400 x 1000 (15.7" x 39.4") Max. Grinding Surface. W x L 406 x 812 (16" x 32") 406 x 1016 (16" x 40") Max. Horizontal Travel Of Table. 960 (37.8") 1160 (45.7") Max. Cross Travel Of Table. 450 (17.7") Distance Between Table Surface And Spindle Center 620 (24.4") Table Speed 6 ~ 25 M/min (240 ~1000 inch/min) SD-2~26 M/min (80~1040 inch/min) Automatic Crossfeed Of Sadle (60HZ) 0 ~ 12 (0"~0.47") Vertical Handwheel (1 gra) 0.005 (0.00025") Vertical Handwheel (1rev) 1 (0.05") Crossfeed Handwheel (1 gra) 0.01 ( 0.005") Crossfeed Handwheel (1 rev) 4 (0.2") Downfeed Mirco Adjustment (1 gra) AHD-0.002(0.0001") SD-0.001(0.00005") Downfeed Mirco Adjustment (1 rev) AHD-0.2(0.01") Longitudinal Travel Adjustable from-to 50 ~ 812 (2" x 32") 50 ~ 1016 (2" x 40" ) Crossfeed Travel Adjustable from-to 0 ~ 406 (0" ~ 16") Spindle Motor 7 1/2HPx 4P *10HP x 4P Hydraulic Pump Mmotor H / AH / AHD / SD-2HP x 6P Crossfeed Motor 40W x 6P Downfeed Motor AH-1/5 x 6P AHD-1/4HP x 6P SD-Servo Motor Grinding Wheel (OD x T x ID) 355 x 50 x 127 (14" x 2" x 5") Spindle Speed 60/50HZ 1750RPM / 60HZ 1450RPM / 50HZ Coolant Motor 1/8HP Dust Collector Motor 1/2HP x 2P New Weight 2800kgs (6160lbs) 3000kgs (6600lbs) Gross Weight 3150kgs (6930lbs) 3400kgs (7480lbs) Packing Dimensions 2780 x 2210 x 2250 (109.4" x 87" x 88.5") 3150 x 2210 x 2250 (124" x 87" x 88.5 ")
