상세설명
|
사양→ |
응축열량(kcal/h) | 전열면적 (㎡) |
접속관경(￠) | 휀&모터 (￠xkwxPxEA) |
풍량 (CMM) |

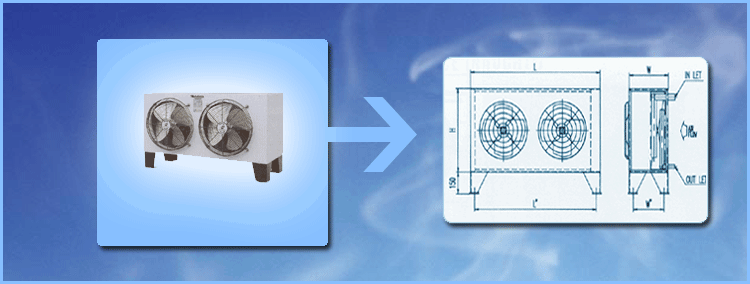

외형치수(LxWxH) | 앵커치수 (L″xW″) |
중량(kg) | |
|
모델↓ |
IN | OUT | |||||||
| CU-Ⅱ015 | 5850 | 10 | 19.05 | 12.70 | 400x0.1x6x1 | 45 | 775x412x535 | 685x322 | 43 |
| CU-lO015 | 775x161x535 | 708x186 | 29 | ||||||
| CU-Ⅱ020 | 7800 | 21 | 19.05 | 12.70 | 400x0.1x6x1 | 45 | 775x412x635 | 685x322 | 47 |
| CU-lO020 | 747x161x635 | 708x186 | 32 | ||||||
| CU-Ⅱ030 | 9950 | 28 | 22.22 | 15.88 | 400x0.1x6x2 | 90 | 1775x412x535 | 1085x322 | 66 |
| CU-lO030 | 1147x161x535 | 1108x186 | 47 | ||||||
| CU-Ⅱ040 | 13280 | 34 | 22.22 | 15.88 | 400x0.1x8x2 | 90 | 1175x412x635 | 1085x322 | 72 |
| CU-lO040 | 1147x161x635 | 1108x186 | 52 | ||||||
| CU-Ⅱ050 | 16600 | 50 | 28.58 | 19.05 | 500x0.1x8x2 | 120 | 1275x434x635 | 1185x344 | 87 |
| CU-lO050 | 1247x183x635 | 1208x208 | 66 | ||||||
| CU-Ⅱ060 | 19920 | 52 | 28.58 | 19.05 | 500x0.1x8x2 | 120 | 1325x434x635 | 1235x344 | 89 |
| CU-lO060 | 1297x183x635 | 1258x208 | 67 | ||||||
| CU-Ⅱ075 | 24900 | 65 | 34.92 | 19.05 | 500x0.2x8x2 | 140 | 1345x456x635 | 1255x366 | 98 |
| CU-lO075 | 1317x205x635 | 1278x230 | 74 | ||||||
| CU-Ⅱ085 | 28220 | 78 | 34.92 | 19.05 | 500x0.2x8x2 | 140 | 1345x478x635 | 1255x388 | 102 |
| CU-lO085 | 1317x227x635 | 1278x252 | 81 | ||||||
| CU-Ⅱ100 | 33200 | 101 | 41.28 | 22.22 | 450x0.1x8x3 | 210 | 1695x478x635 | 1605x388 | 139 |
| CU-lO100 | 1667x227x635 | 1628x252 | 108 | ||||||
